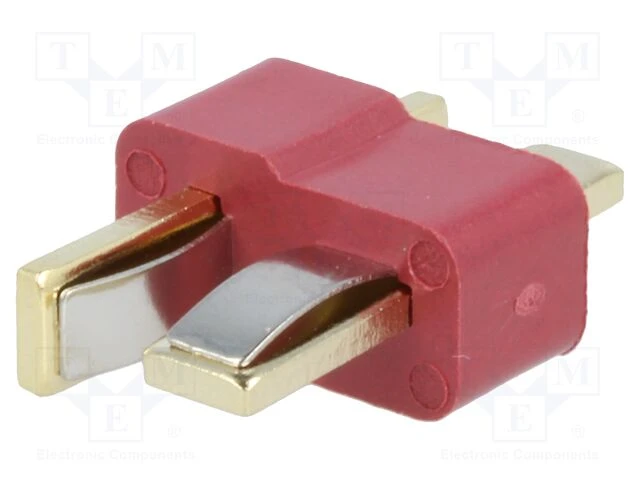

AM1015 power connector T-plug to board 25A 500V
SKU: AM1015-M
- 0.90 €
-
- Customer price 0.86 € -5%
- Log in and get at least a 5% discount
Pealadu
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
40 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
20 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
Tallinn, Pärnu mnt. 238
11 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
Tartu, Lääneringtee 39
10 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
Rakvere, Haljala tee 4
5 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
Pärnu, Papiniidu 8
10 pcs
The AM1015-M is a high-quality male DC power connector (T-plug) designed for various applications requiring a secure and reliable connection. It is manufactured by Amass and belongs to the AM-1015 series.
General Overview and Purpose
The AM1015-M connector is commonly used for connecting batteries to power receivers in devices such as electric scooters, RC models, battery chargers, universal meters, laboratory power supplies, electric motorcycles, and electric bicycles. It ensures a low-resistance and secure connection for efficient power transfer.
Key Features
* High Current Capacity: Supports a continuous current of 25A and a maximum instantaneous current of 50A.
* Durable Construction: Made from high-quality polyamide and gold-plated brass contacts for enhanced durability and conductivity.
* Low Resistance: Features a low internal resistance of approximately 0.45mΩ, minimizing power loss.
* Secure Connection: Provides a secure and reliable connection, preventing wrong polarity connections.
* Wide Operating Temperature: Functions effectively in temperatures ranging from -20°C to 120°C.
* Long Lifespan: Designed for up to 1000 connection/disconnection cycles.
* Flame Retardant: UL94V-0 flammability rating, ensuring safety and reliability.
Use Cases and Benefits
* RC Models: Ideal for connecting batteries in RC cars, airplanes, and drones, ensuring a stable power supply.
* Electric Scooters and Bicycles: Suitable for use as a controller connector or connection terminal, providing a reliable link between the battery and motor.
* Battery Chargers and Power Supplies: Ensures efficient and safe power transfer in charging and power supply applications.
* Hobbyist Projects: Popular among hobbyists for creating secure and high-performance power connections.
Additional Information
* The connector requires soldering for proper connection.
* It is compatible with the AM1015 female socket.
* The gold-plated brass contacts offer excellent conductivity and corrosion resistance.
General Overview and Purpose
The AM1015-M connector is commonly used for connecting batteries to power receivers in devices such as electric scooters, RC models, battery chargers, universal meters, laboratory power supplies, electric motorcycles, and electric bicycles. It ensures a low-resistance and secure connection for efficient power transfer.
Key Features
* High Current Capacity: Supports a continuous current of 25A and a maximum instantaneous current of 50A.
* Durable Construction: Made from high-quality polyamide and gold-plated brass contacts for enhanced durability and conductivity.
* Low Resistance: Features a low internal resistance of approximately 0.45mΩ, minimizing power loss.
* Secure Connection: Provides a secure and reliable connection, preventing wrong polarity connections.
* Wide Operating Temperature: Functions effectively in temperatures ranging from -20°C to 120°C.
* Long Lifespan: Designed for up to 1000 connection/disconnection cycles.
* Flame Retardant: UL94V-0 flammability rating, ensuring safety and reliability.
Use Cases and Benefits
* RC Models: Ideal for connecting batteries in RC cars, airplanes, and drones, ensuring a stable power supply.
* Electric Scooters and Bicycles: Suitable for use as a controller connector or connection terminal, providing a reliable link between the battery and motor.
* Battery Chargers and Power Supplies: Ensures efficient and safe power transfer in charging and power supply applications.
* Hobbyist Projects: Popular among hobbyists for creating secure and high-performance power connections.
Additional Information
* The connector requires soldering for proper connection.
* It is compatible with the AM1015 female socket.
* The gold-plated brass contacts offer excellent conductivity and corrosion resistance.
Connector Type: Plug
Connector Series: AM-1015
Kind of Connector: Male
Number of Pins: 2
Rated Voltage: 500V DC
Rated Current: 25A
Max Instantaneous Current: 50A
Contact Material: Gold-plated brass
Body Material: Polyamide
Wire Size: 12AWG
Operating Temperature: -20°C to 120°C
Mechanical Mounting: For cable
Electrical Mounting: Soldering
Mechanical Durability: 1000 cycles
Initial Resistance: ~0.45 mΩ
Male Plug Size: Approx. 12x7x15mm
Female Plug Size: Approx. 20x13x7mm
Flammability rating: UL94V-0
Connector Series: AM-1015
Kind of Connector: Male
Number of Pins: 2
Rated Voltage: 500V DC
Rated Current: 25A
Max Instantaneous Current: 50A
Contact Material: Gold-plated brass
Body Material: Polyamide
Wire Size: 12AWG
Operating Temperature: -20°C to 120°C
Mechanical Mounting: For cable
Electrical Mounting: Soldering
Mechanical Durability: 1000 cycles
Initial Resistance: ~0.45 mΩ
Male Plug Size: Approx. 12x7x15mm
Female Plug Size: Approx. 20x13x7mm
Flammability rating: UL94V-0
