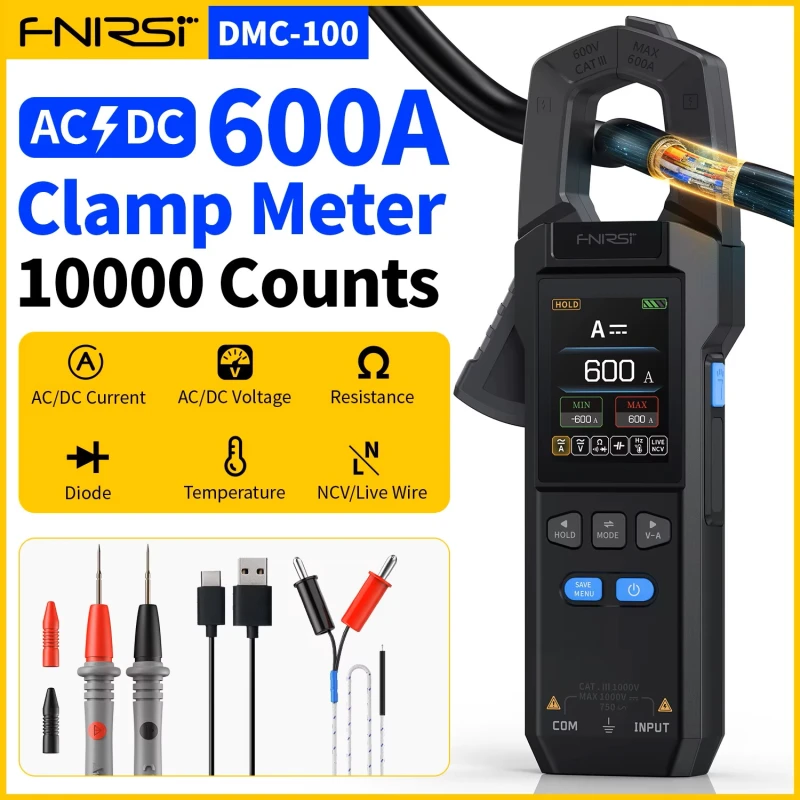

TRMS Clamp Meter 600ACA/DCA 1000DCV 100MR 10mF NCV Fnirsi

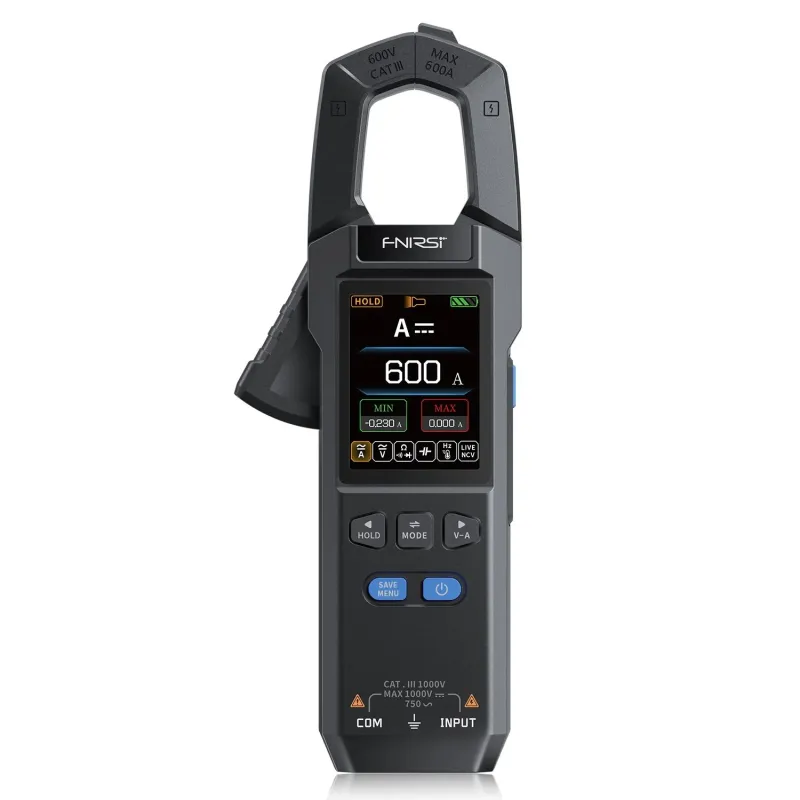

The FNIRSI DMC-100 is a digital clamp meter designed for measuring various electrical parameters. Here's a summary of its key features and specifications:

**General Information:**

* **Category:** TRMS (True Root Mean Square) Clamp Meter
* **Brand:** FNIRSI
* **Model:** DMC-100
* **Display:** 10000 counts, 2.0-inch TFT color screen (240 x 320 pixels) with adjustable brightness
* **Jaw Size:** 25mm maximum

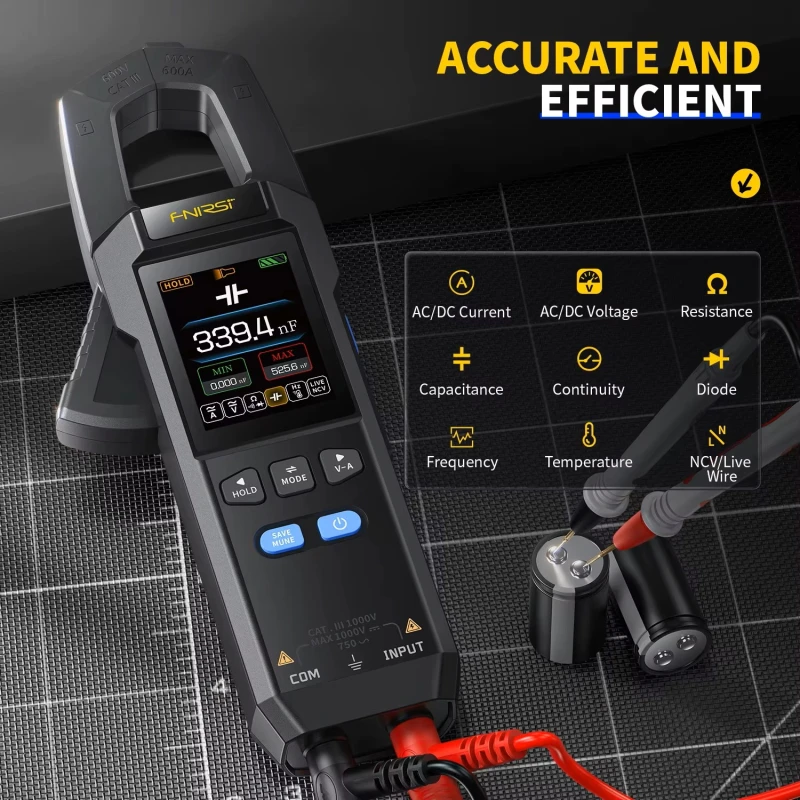

**Measurement Capabilities:**

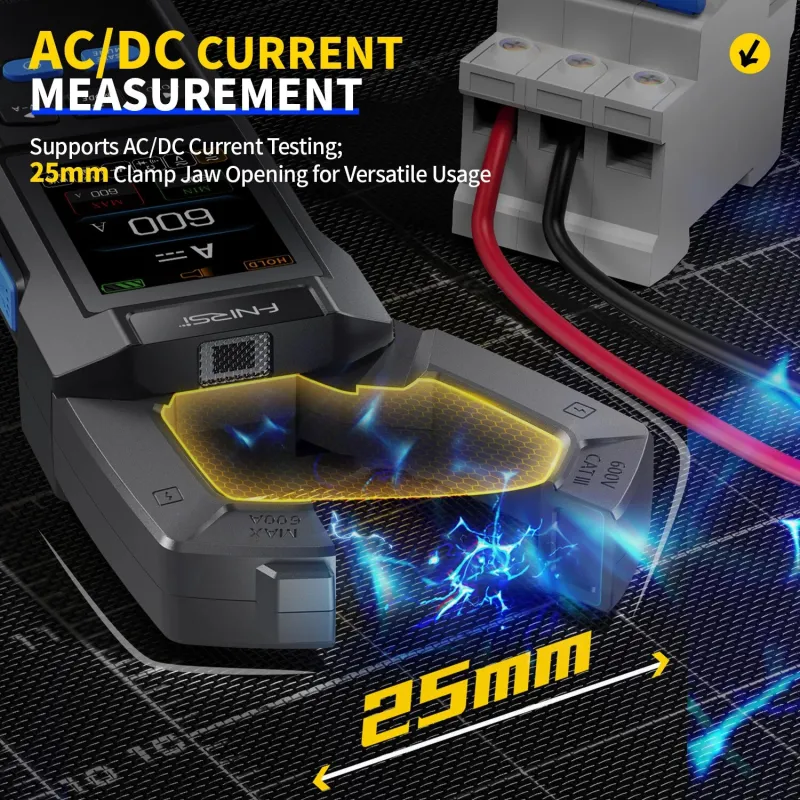

* **AC/DC Current:**
* Range: 99.99A / 600.0A
* Maximum Current: 600A
* **AC/DC Voltage:**
* DC Voltage: 9.999V / 99.99V / 999.9V
* AC Voltage: 9.999V / 99.99V / 750.0V (up to 750V)
* **Resistance:** Up to 99.99MΩ
* **Capacitance:** Up to 9.999mF
* **Temperature:** -55~1300℃ / -67~2372℉
* **Frequency:** Up to 9.999MHz
* **Other:** Diode test, Continuity test, NCV (Non-Contact Voltage) detection, Live wire check

**Features:**

* **True RMS:** Provides accurate readings for non-sinusoidal waveforms.
* **Data Analysis:** Data curve display for trend tracking, Min/Max value capture.
* **Data Storage:** Stores 8 sets of real-time data and 30 sets of historical records.
* **Power Measurement:** Displays voltage and current simultaneously.
* **NCV Function:** Non-contact voltage detection for safety.
* **User Interface:** Full-color screen, intuitive UI, and data curve display.
* **Additional Functions:** Flashlight, screen backlight, data hold.
* **Auto Power Off:** Adjustable auto power-off settings (Off / 5min / 15min / 30min).
* **Display:**Color TFT screen

**Power and Physical Characteristics:**

* **Power Source:** Internal 3.7V, 1500mAh lithium battery.
* **Charging:** Type-C USB, 5V/1A
* **Dimensions:** Approximately 193 x 74 x 32mm (7.7 x 2.91 x 1.14 inches)
* **Weight:** 194g (approximately 0.42 lbs or 6.7 ounces)

**Additional Notes:**

* The device supports firmware upgrades via the Type-C port.
* It has a user-friendly design with a 25mm wide jaw for measuring various wires.
* It is designed for engineering maintenance, laboratory research, vehicle overhaul, and home electrical diagnostics.
