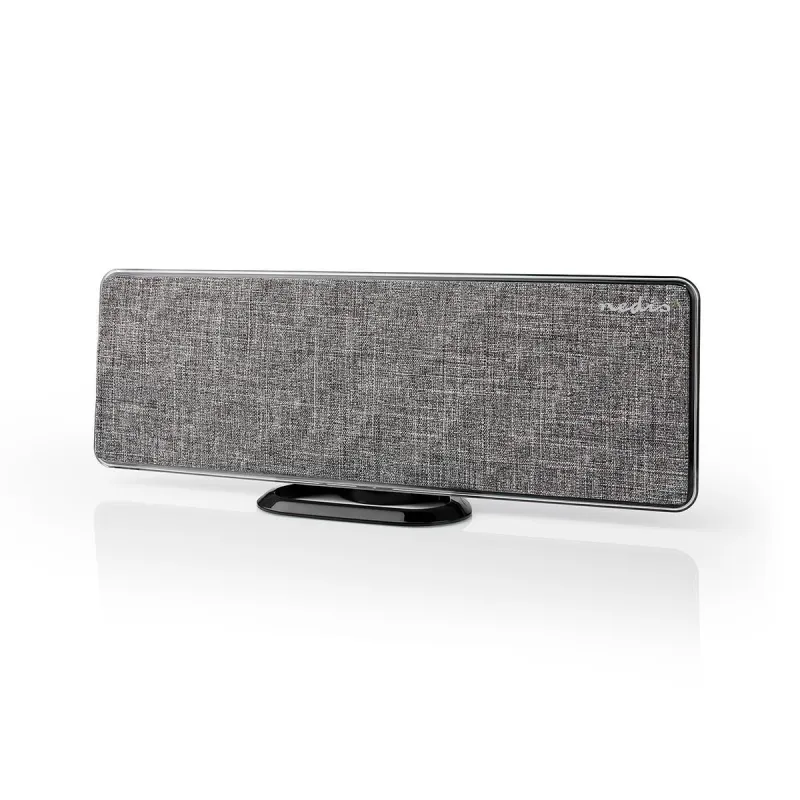

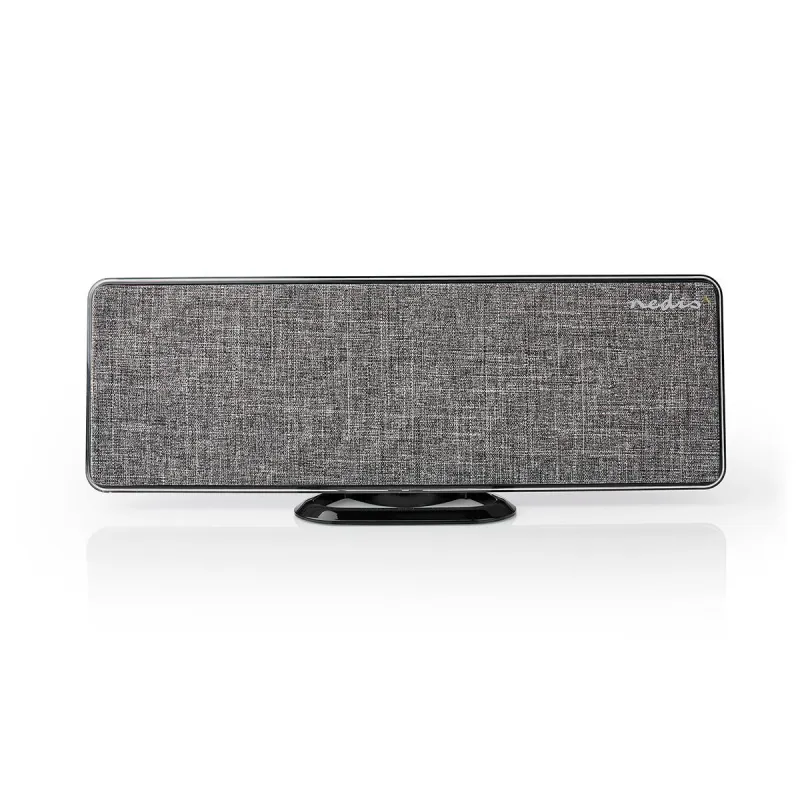

Home antenna with amplifier FM/VHF/UHF 25km
Product is not available
With this active Nedis® DVB-T/DVB-T2 in-house-antenna you can be reassured of a stable connection. This antenna receives signals from transmission towers within a radius of 25km from your house. With this antenna it is able to receive more than only DVB-T/DVB-T2 signals, this antenna also receives DAB and FM signals. To prevent interference from 4G / 5G signals, this antenna uses an LTE-700 filter. Within this 25km radius you are assured of a stable connection and crystal clear images of free-to-air channels and your favourite paid (subscripted) channels.
Impedance 75 Ohm
Colour Grey
Power source type Mains Powered
Power plug Type C (CEE 7/16)
Indoor / outdoor For Indoor
Power adapter cable length 1.50 m
Material ABS / Fabric
Input voltage 220 - 240 VAC
Cable length 2.10 m
Width 100.0 mm
Signal type FM
UHF
VHF
LTE filter LTE700
VHF frequency range 170-230 MHz
Connector type (Coax) IEC Male
DAB+ supported Yes
FM frequency range 87.5-108.5 MHz
Antenna type Active
Device power input connection(s) DC 3.5 x 8.0 x 15 mm
Vertical beam width 64 °
UHF frequency range 470-694 MHz
Reception range 0-25 km
Height 300.0 mm
UHF gain 28 dB
VHF gain 28 dB
FM gain 26 dB
Gain 28 dB
Horizontal beam width 73 °
Weight 359 g
Depth 17.0 mm.
-
