SKU:ANIR2502BK700
Manufacturer:
Nedis
Image is for illustrative purposes only
• **LTE700 filter** to reduce the impact of 4G
• Quick and easy to install
• Suitable for indoor use within a radius of **25 kilometers** from the nearest transmitting antenna

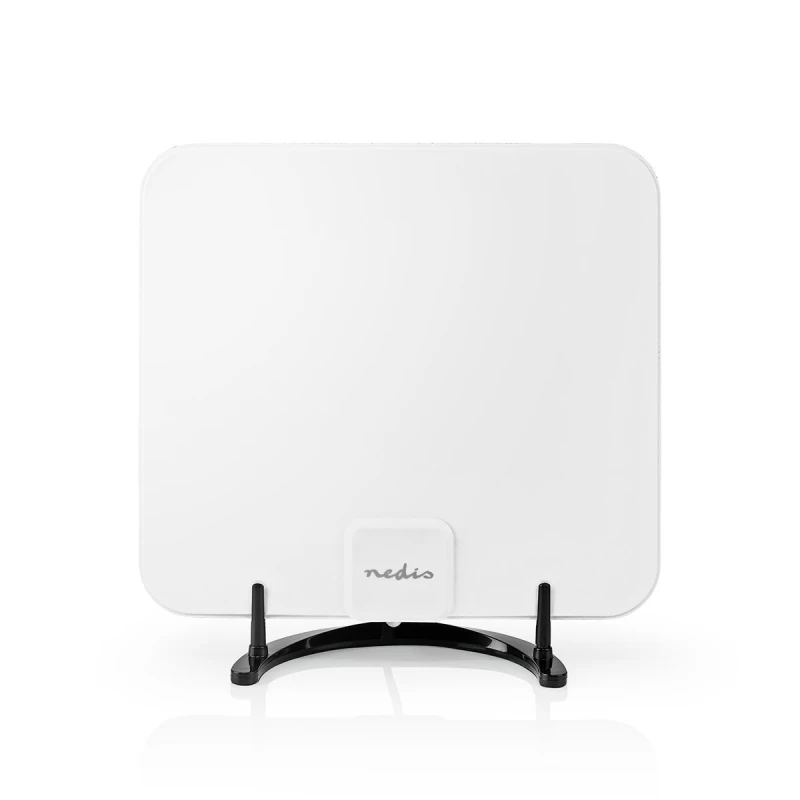

This indoor Nedis DVB-T/T2 antenna ensures stable reception of free channels and FM radio signals. The antenna has a compact and stylish design that blends into any interior.
• Quick and easy to install
• Suitable for indoor use within a radius of **25 kilometers** from the nearest transmitting antenna
This indoor Nedis DVB-T/T2 antenna ensures stable reception of free channels and FM radio signals. The antenna has a compact and stylish design that blends into any interior.
Impedance: 75 Ohm
Power source type: Mains Powered
Power plug Type: C (CEE 7/16)
Power adapter cable length: 1.50 m
Cable length: 2.10 m
Signal type: FM UHF VHF
LTE filter: LTE700
VHF frequency range: 170-230 MHz
DAB+ supported: Yes
Antenna type: Active
Device power input connection(s): DC 3.5 x 8.0 x 15 mm
UHF frequency range: 470-694 MHz
UHF gain: 30 dB
VHF gain: 30 dB
Reception range: 0-25 km
FM gain: 28 dB
Gain: 30 dB
Vertical beam width: 71 °
Horizontal beam width: 82 °
Number of Products in Package: 1 pcs
Indoor / outdoor: Indoor
Application: DVB-T/T2 - DAB+ FM
FM frequency range: 87.5 - 108.5 MHz
Input voltage: 220 - 240 V AC
Connector type: IEC (Coax) Male
Power source type: Mains Powered
Power plug Type: C (CEE 7/16)
Power adapter cable length: 1.50 m
Cable length: 2.10 m
Signal type: FM UHF VHF
LTE filter: LTE700
VHF frequency range: 170-230 MHz
DAB+ supported: Yes
Antenna type: Active
Device power input connection(s): DC 3.5 x 8.0 x 15 mm
UHF frequency range: 470-694 MHz
UHF gain: 30 dB
VHF gain: 30 dB
Reception range: 0-25 km
FM gain: 28 dB
Gain: 30 dB
Vertical beam width: 71 °
Horizontal beam width: 82 °
Number of Products in Package: 1 pcs
Indoor / outdoor: Indoor
Application: DVB-T/T2 - DAB+ FM
FM frequency range: 87.5 - 108.5 MHz
Input voltage: 220 - 240 V AC
Connector type: IEC (Coax) Male
