Arduino Nano Matter
SKU:ABX00112
Manufacturer:Arduino

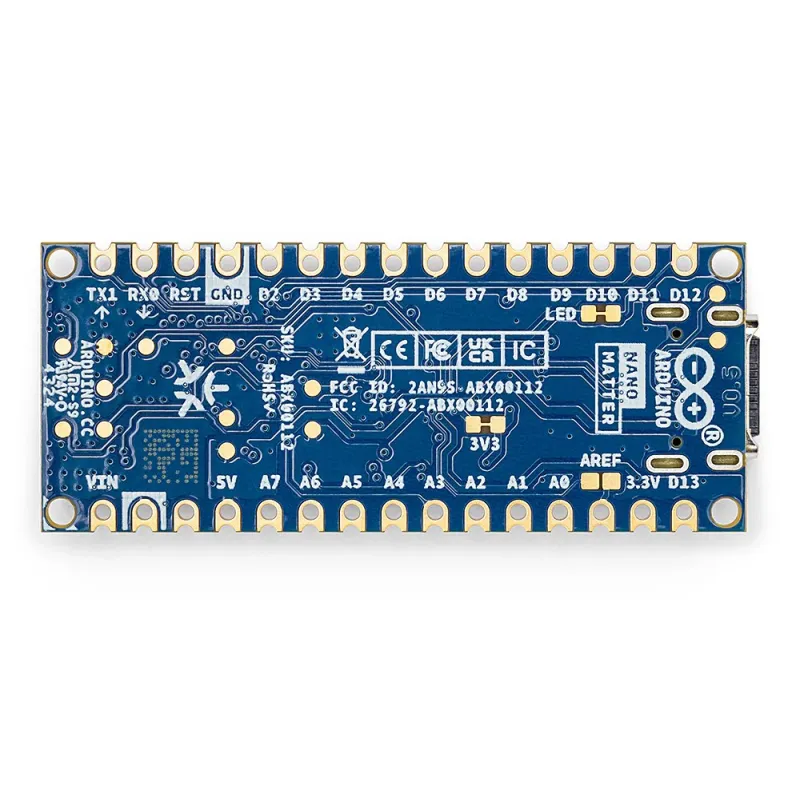

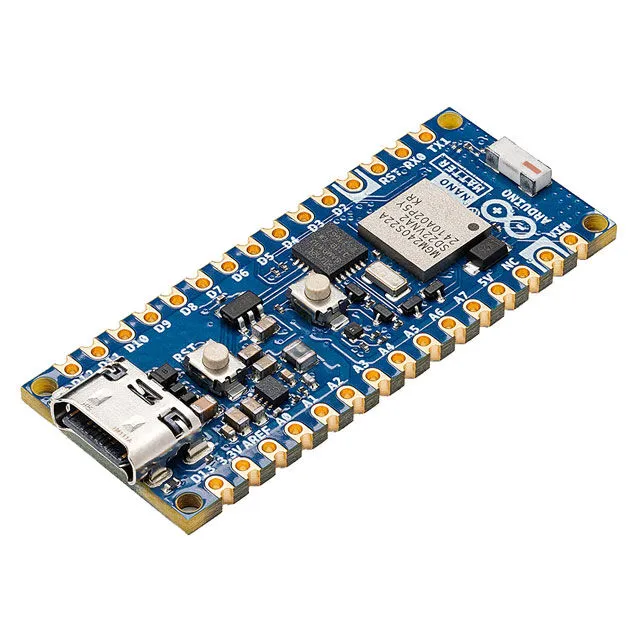

Image is for illustrative purposes only
The Arduino Nano Matter (ABX00112) is a compact development board designed for IoT and smart home applications, with a focus on the Matter standard.
Key Features
- Compact Nano form factor (18mm x 45mm)
- Features the Silicon Labs MGM240S microcontroller with an Arm Cortex-M33 core
- Supports multiple wireless protocols: Thread (802.15.4), BLE 5.3, Bluetooth Mesh, Matter, and Zigbee
- Designed for low power consumption, suitable for battery-powered projects
- Leverages the Arduino ecosystem for rapid prototyping and easy integration
Applications
Its compact size, low power design, and multi-protocol wireless support make it suitable for applications such as home automation, environmental monitoring, and industrial automation.
Key Features
- Compact Nano form factor (18mm x 45mm)
- Features the Silicon Labs MGM240S microcontroller with an Arm Cortex-M33 core
- Supports multiple wireless protocols: Thread (802.15.4), BLE 5.3, Bluetooth Mesh, Matter, and Zigbee
- Designed for low power consumption, suitable for battery-powered projects
- Leverages the Arduino ecosystem for rapid prototyping and easy integration
Applications
Its compact size, low power design, and multi-protocol wireless support make it suitable for applications such as home automation, environmental monitoring, and industrial automation.
Analog Inputs: 20 (12-bit ADC)
Antenna: On-board 2.4 GHz
Clock Speed: 78 MHz
Connectivity: Thread (802.15.4), Bluetooth Low Energy (BLE) 5.3, Bluetooth Mesh, Matter, Zigbee
Debugging: Over USB (SWD interface)
Digital I/O Pins: 22
Dimensions: 18 mm x 45 mm
Flash Memory: 1536 kB
Input Voltage (VIN): 5 V
Microcontroller: MGM240SD22VNA (32-bit Arm® Cortex®-M33 with DSP instruction and FPU)
Operating Temperature: -40°C to +85°C
Operating Voltage: 3.3 V
PWM Pins: 22 (maximum 5 simultaneously)
RAM: 256 kB
Security: Secure Vault™ High from Silicon Labs
USB Connector: USB-C®
Weight: 4 g
Antenna: On-board 2.4 GHz
Clock Speed: 78 MHz
Connectivity: Thread (802.15.4), Bluetooth Low Energy (BLE) 5.3, Bluetooth Mesh, Matter, Zigbee
Debugging: Over USB (SWD interface)
Digital I/O Pins: 22
Dimensions: 18 mm x 45 mm
Flash Memory: 1536 kB
Input Voltage (VIN): 5 V
Microcontroller: MGM240SD22VNA (32-bit Arm® Cortex®-M33 with DSP instruction and FPU)
Operating Temperature: -40°C to +85°C
Operating Voltage: 3.3 V
PWM Pins: 22 (maximum 5 simultaneously)
RAM: 256 kB
Security: Secure Vault™ High from Silicon Labs
USB Connector: USB-C®
Weight: 4 g
