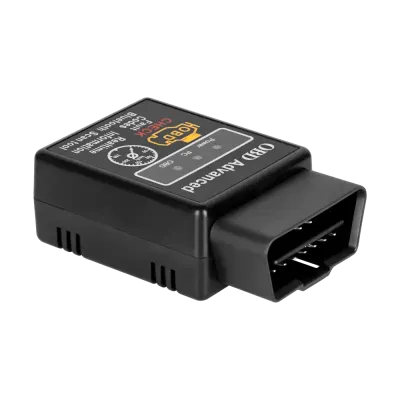

PeiYing car radio Bluetooth ODB2 ELM327 diagnostic interface
SKU:URZ4058
Manufacturer:Peiying
New
Image is for illustrative purposes only
The Peiying URZ4058 is a Bluetooth ELM327-based OBD2 diagnostic interface designed for wireless, real-time monitoring and analysis of vehicle systems.
Key Features
- Comprehensive Fault Code Management: Allows users to read and clear stored engine diagnostic trouble codes (DTCs).
- Real-Time Sensor Data: Displays current vehicle sensor data, including the ability to visualize data streams in graphical format.
- Diagnostic System Testing: Supports specialized functions including I/M Readiness checks, On-Board Monitoring Test (Mode 6), and testing of individual components.
- Freeze Frame Data: Ability to view freeze frames, capturing sensor values at the moment a fault code was set.
- Component and O2 Sensor Testing: Facilitates testing of the lambda (oxygen) sensor and other specific components.
- Battery Monitoring: Provides readings for the automotive battery voltage.
- Wide Protocol Compatibility: Supports a broad range of OBD2 protocols, including various CAN, KWP, and J1850 variants.
Key Features
- Comprehensive Fault Code Management: Allows users to read and clear stored engine diagnostic trouble codes (DTCs).
- Real-Time Sensor Data: Displays current vehicle sensor data, including the ability to visualize data streams in graphical format.
- Diagnostic System Testing: Supports specialized functions including I/M Readiness checks, On-Board Monitoring Test (Mode 6), and testing of individual components.
- Freeze Frame Data: Ability to view freeze frames, capturing sensor values at the moment a fault code was set.
- Component and O2 Sensor Testing: Facilitates testing of the lambda (oxygen) sensor and other specific components.
- Battery Monitoring: Provides readings for the automotive battery voltage.
- Wide Protocol Compatibility: Supports a broad range of OBD2 protocols, including various CAN, KWP, and J1850 variants.
Connection: Bluetooth
Operating Voltage: 12V
Current Consumption: 16mA
Operating Temperature: -40°C - +85°C
Dimensions: 45 x 25 x 70 mm
Weight: 31 g
Supported OBD2 Protocols: SAE J1850 PWM (41.6 Kbaud) – V1.5 version only; SAE J1850 VPW (10.4 Kbaud) – V1.5 version only; ISO9141-2 (5 baud init, 10.4 Kbaud); ISO14230-4 KWP (5 baud init, 10.4 Kbaud); ISO14230-4 KWP (fast init, 10.4 Kbaud); ISO15765-4 CAN (11-bit ID, 500 Kbaud); ISO15765-4 CAN (29-bit ID, 500 Kbaud); ISO15765-4 CAN (11-bit ID, 250 Kbaud); ISO15765-4 CAN (29-bit ID, 250 Kbaud)
Operating Voltage: 12V
Current Consumption: 16mA
Operating Temperature: -40°C - +85°C
Dimensions: 45 x 25 x 70 mm
Weight: 31 g
Supported OBD2 Protocols: SAE J1850 PWM (41.6 Kbaud) – V1.5 version only; SAE J1850 VPW (10.4 Kbaud) – V1.5 version only; ISO9141-2 (5 baud init, 10.4 Kbaud); ISO14230-4 KWP (5 baud init, 10.4 Kbaud); ISO14230-4 KWP (fast init, 10.4 Kbaud); ISO15765-4 CAN (11-bit ID, 500 Kbaud); ISO15765-4 CAN (29-bit ID, 500 Kbaud); ISO15765-4 CAN (11-bit ID, 250 Kbaud); ISO15765-4 CAN (29-bit ID, 250 Kbaud)
