SKU:AX5W 220R

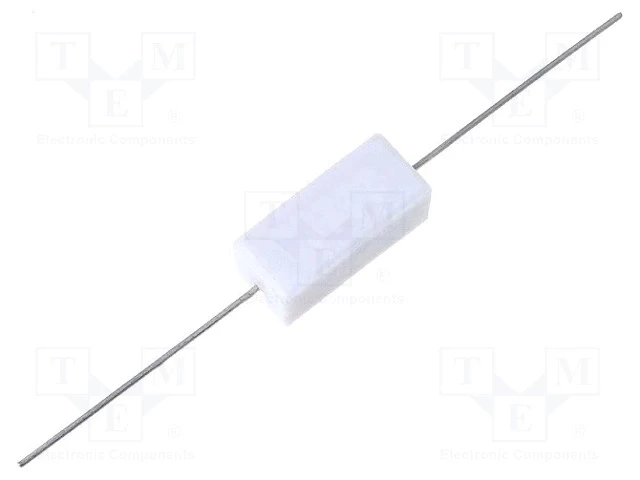

Image is for illustrative purposes only
220R 5W AXIAL is an electronic resistor with a resistance value of 220 ohms and a power of 5 watts. AXIAL refers to the shape of the resistor, meaning that its leads are placed at both ends and run along the axis of the resistor. This allows the resistor to be mounted on a circuit board or other electronic device using two holes or a mounting clip to secure the resistor. AXIAL resistors usually have a higher power tolerance than radial resistors of the same resistance value because they are larger and have better cooling capabilities.
Manufacturer: ROYAL OHM
Type of resistor: wire-wound
Kind of resistor: cement
Mounting: THT
Resistance: 220Ω
Power: 5W
Tolerance: ±5%
Body dimensions: 10x9x22mm
Leads dimensions: Ø0.8x35mm
Brutomass: 4.77 g
-
