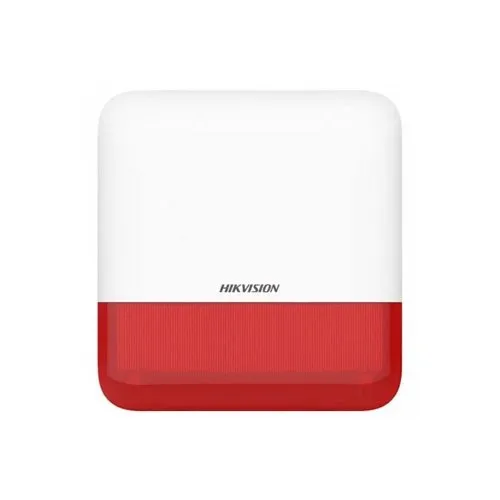

AX PRO Wireless External Sounder
SKU:DS-PS1-E-WE(P)
The Hikvision DS-PS1-E-WE(P) is a wireless external sounder and strobe designed specifically for integration within the AX PRO wireless security system. It provides instant, high-volume visual and audible alerts upon alarm activation, suitable for outdoor installation.
Key Features
- Wireless Communication: Utilizes secure, two-way 868 MHz Tri-X wireless protocol with AES-128 encryption.
- Alarm Output: Generates a powerful 110 dB sound signal combined with a visual strobe light.
- Alert Differentiation: Supports three distinct sound types for specific events: Fire, Panic, and Intrusion.
- Durability: Constructed with a robust PC+ABS housing and rated IP65 for reliable outdoor use.
- Security: Features comprehensive tamper protection on both the front and rear panels.
- Configuration: Fully remote configuration and management via the mobile application.
Applications
Its robust, weather-resistant design and high-volume output make this sounder ideal for providing mandatory external notification of security events in residential or commercial settings utilizing the Hikvision AX PRO system.
Key Features
- Wireless Communication: Utilizes secure, two-way 868 MHz Tri-X wireless protocol with AES-128 encryption.
- Alarm Output: Generates a powerful 110 dB sound signal combined with a visual strobe light.
- Alert Differentiation: Supports three distinct sound types for specific events: Fire, Panic, and Intrusion.
- Durability: Constructed with a robust PC+ABS housing and rated IP65 for reliable outdoor use.
- Security: Features comprehensive tamper protection on both the front and rear panels.
- Configuration: Fully remote configuration and management via the mobile application.
Applications
Its robust, weather-resistant design and high-volume output make this sounder ideal for providing mandatory external notification of security events in residential or commercial settings utilizing the Hikvision AX PRO system.
Alarm Types: 3 (fire alarm, panic alarm, and intrusion alarm)
Battery Life Span: Up to 3 years
Buzzer Decibel: 110 dB
Dimensions (W × H × D): 190 mm × 200 mm × 47.3 mm
IP Rate: IP65
Installation Method: Wall-mounting
Operating Humidity: 10% to 90% (no condensing)
Operating Temperature: -20 °C to 60 °C
Power Source: Battery (default) or 12 VDC
RF Distance (open area): 1.6 km
RF Encryption: AES-128
RF Frequency: 868 MHz
RF Modulation: 2GFSK
Shell Material: PC+ABS
Tamper Protection: Front and rear panel tamper-proof
Weight: 606.5 g
Wireless Protocol: Tri-X
Battery Life Span: Up to 3 years
Buzzer Decibel: 110 dB
Dimensions (W × H × D): 190 mm × 200 mm × 47.3 mm
IP Rate: IP65
Installation Method: Wall-mounting
Operating Humidity: 10% to 90% (no condensing)
Operating Temperature: -20 °C to 60 °C
Power Source: Battery (default) or 12 VDC
RF Distance (open area): 1.6 km
RF Encryption: AES-128
RF Frequency: 868 MHz
RF Modulation: 2GFSK
Shell Material: PC+ABS
Tamper Protection: Front and rear panel tamper-proof
Weight: 606.5 g
Wireless Protocol: Tri-X
