SKU:EEUFR1J101
New

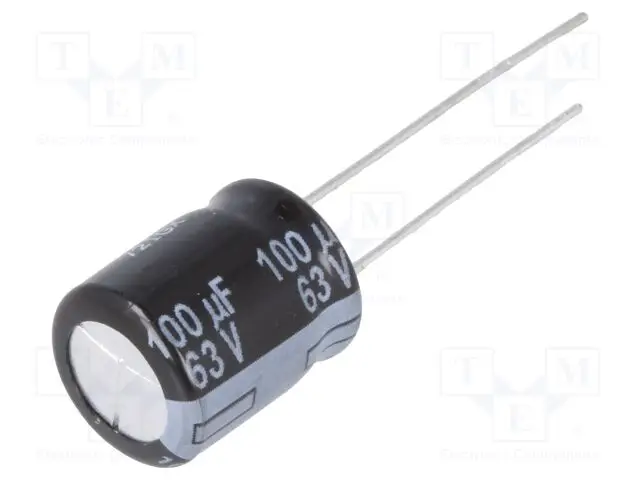

Image is for illustrative purposes only
The Panasonic FR series low ESR electrolytic capacitor (model EEUFR1J101) is designed for through-hole (THT) mounting. The component has a capacitance of 100 µF and an operating voltage of 63 V DC.
The capacitor features an impedance of 63 mΩ, a capacitance tolerance of ±20%, and a nominal service life of 6000 h. The component complies with the AEC-Q200 automotive standard, allows an operating temperature range of -40 to 105 °C, and has body dimensions of Ø10x12.5 mm with a terminal pitch of 5 mm.
The capacitor features an impedance of 63 mΩ, a capacitance tolerance of ±20%, and a nominal service life of 6000 h. The component complies with the AEC-Q200 automotive standard, allows an operating temperature range of -40 to 105 °C, and has body dimensions of Ø10x12.5 mm with a terminal pitch of 5 mm.
Manufacturer: PANASONIC
Manufacturer part number: EEUFR1J101
Type of capacitor: electrolytic
Kind of capacitor: low ESR
Mounting: THT
Capacitance: 100µF
Operating voltage: 63V DC
Body dimensions: Ø10x12.5mm
Diameter: 10mm
Height: 12.5mm
Terminal pitch: 5mm
Tolerance: ±20%
Service life: 6000h
Impedance: 63mΩ
Operating temperature: -40...105°C
Manufacturer series: FR
Conform to the norm: AEC-Q200
Manufacturer part number: EEUFR1J101
Type of capacitor: electrolytic
Kind of capacitor: low ESR
Mounting: THT
Capacitance: 100µF
Operating voltage: 63V DC
Body dimensions: Ø10x12.5mm
Diameter: 10mm
Height: 12.5mm
Terminal pitch: 5mm
Tolerance: ±20%
Service life: 6000h
Impedance: 63mΩ
Operating temperature: -40...105°C
Manufacturer series: FR
Conform to the norm: AEC-Q200
