CNX83AG - PHOTOTRANSISTOR OPTOCOUPLER
SKU:CNX83AG

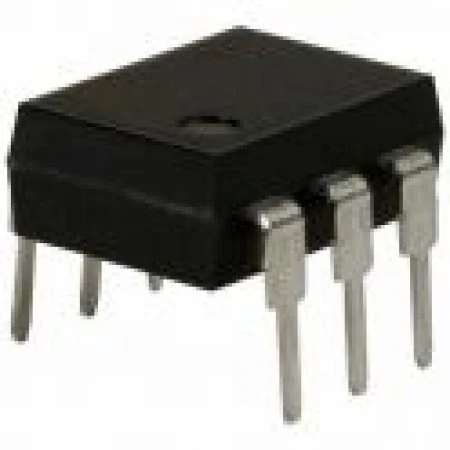

Image is for illustrative purposes only
The CNX83AG is a reliable optically coupled isolator, designed for providing electrical isolation and efficient signal transfer between circuits. This component ensures robust performance in a variety of applications.
Overview
The CNX83AG features an infrared light emitting diode (IRED) and an NPN silicon phototransistor, all conveniently housed in a standard 6-pin dual in line plastic package.
General Information
- Standard 6-pin dual in-line package (DIP)
- Optocoupler, Phototransistor Output
Key Features
- High Current Transfer Ratio (CTR): 40% minimum
- Low Saturation Voltage: Suitable for TTL integrated circuits
- High BVCEO (Collector-Emitter Breakdown Voltage): 50V minimum
- High Isolation Voltage: 5.3 kV RMS, 7.5 kV Peak
Applications
- DC motor controllers
- Industrial systems
- Telecommunications
- Industrial control
- Medical equipment
- Consumer electronics
- Power supply regulators
- Digital logic inputs
- Microprocessor inputs
Benefits
- Provides electrical isolation between circuits
- Protects sensitive circuits from high voltages and noise
- Enables signal transfer between circuits with different voltage levels
- Offers a compact and reliable solution for isolation applications
About Isocom Components
Isocom Components is a UK-based company specializing in optocouplers and optoelectronic components. Their products are known for reliability, high-performance, and low power consumption, serving various applications worldwide.
Overview
The CNX83AG features an infrared light emitting diode (IRED) and an NPN silicon phototransistor, all conveniently housed in a standard 6-pin dual in line plastic package.
General Information
- Standard 6-pin dual in-line package (DIP)
- Optocoupler, Phototransistor Output
Key Features
- High Current Transfer Ratio (CTR): 40% minimum
- Low Saturation Voltage: Suitable for TTL integrated circuits
- High BVCEO (Collector-Emitter Breakdown Voltage): 50V minimum
- High Isolation Voltage: 5.3 kV RMS, 7.5 kV Peak
Applications
- DC motor controllers
- Industrial systems
- Telecommunications
- Industrial control
- Medical equipment
- Consumer electronics
- Power supply regulators
- Digital logic inputs
- Microprocessor inputs
Benefits
- Provides electrical isolation between circuits
- Protects sensitive circuits from high voltages and noise
- Enables signal transfer between circuits with different voltage levels
- Offers a compact and reliable solution for isolation applications
About Isocom Components
Isocom Components is a UK-based company specializing in optocouplers and optoelectronic components. Their products are known for reliability, high-performance, and low power consumption, serving various applications worldwide.
Isolation Voltage: 5.3 kV RMS, 7.5 kV Peak
