SKU:PC-009
New
Image is for illustrative purposes only

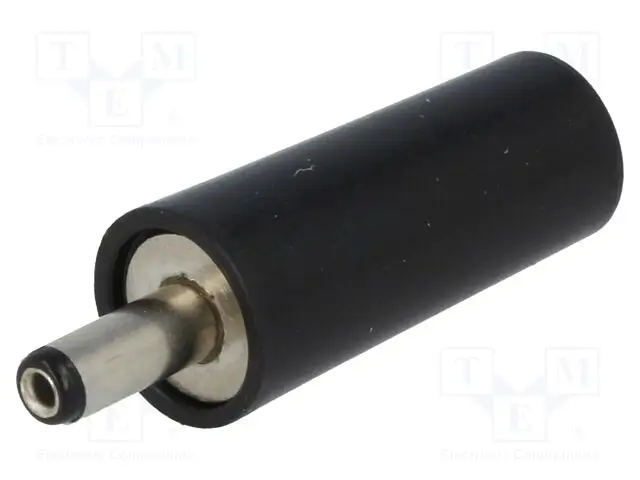

NINIGI PC-009 is a straight DC power plug (female) designed for cable mounting and soldering.
The connector has an outside diameter of 3.5mm, an inside diameter of 1.3mm (contact size 3.5/1.3mm), and a metal part length of 9mm. The plug belongs to the Sony variant.
The connector has an outside diameter of 3.5mm, an inside diameter of 1.3mm (contact size 3.5/1.3mm), and a metal part length of 9mm. The plug belongs to the Sony variant.
Manufacturer: NINIGI
Manufacturer part number: PC-009
Type of connector: DC supply
Connector: plug
Kind of connector: female
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: soldering
Contact size: 3.5/1.3mm
Plug outside diameter: 3.5mm
Plug inside diameter: 1.3mm
Connector variant: Sony
Length of metal part: 9mm
Manufacturer part number: PC-009
Type of connector: DC supply
Connector: plug
Kind of connector: female
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: soldering
Contact size: 3.5/1.3mm
Plug outside diameter: 3.5mm
Plug inside diameter: 1.3mm
Connector variant: Sony
Length of metal part: 9mm
