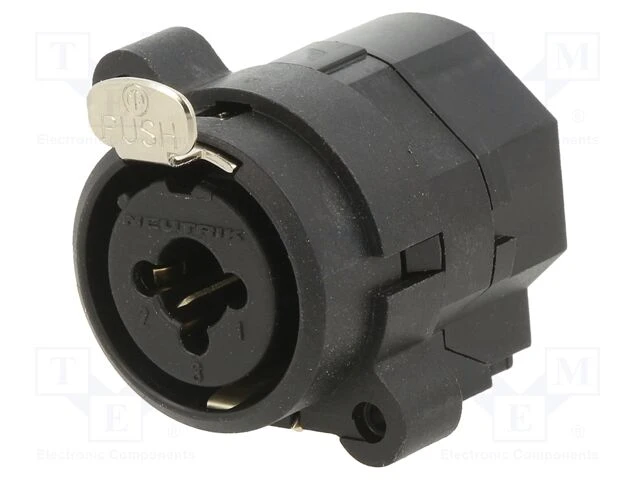

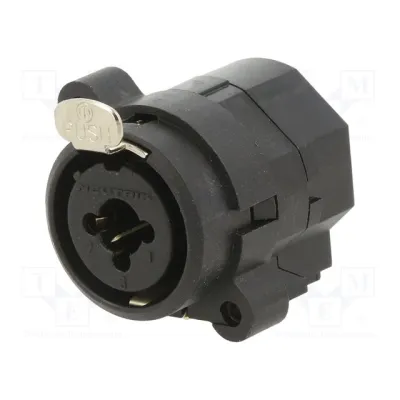

3 pole XLR female receptacle with 1/4" stereo jack without switching contact, solder cups
SKU:NTR-NCJ6FI-S
New
The NEUTRIK NCJ6FI-S Combo is a hybrid panel connector that integrates a 3-pole female XLR receptacle and a 1/4-inch stereo jack into a single D-series housing. Designed for rear mounting, this connector maximizes panel efficiency by combining balanced and unbalanced inputs.
Key Features
- Hybrid design combines 3-pole female XLR socket and 1/4" stereo jack.
- Standard D-series housing for panel compatibility.
- Equipped with solder cups for termination.
- Non-switching version (without switching contacts).
- Features very low conductor capacitance.
- Designed for rear panel mounting.
Applications
The connector is suitable for applications requiring space efficiency on panels, consolidating balanced XLR and line/instrument 1/4" inputs into one unit. Its very low conductor capacitance makes it ideal for use with digital audio equipment.
Key Features
- Hybrid design combines 3-pole female XLR socket and 1/4" stereo jack.
- Standard D-series housing for panel compatibility.
- Equipped with solder cups for termination.
- Non-switching version (without switching contacts).
- Features very low conductor capacitance.
- Designed for rear panel mounting.
Applications
The connector is suitable for applications requiring space efficiency on panels, consolidating balanced XLR and line/instrument 1/4" inputs into one unit. Its very low conductor capacitance makes it ideal for use with digital audio equipment.
Connection Type: Combo
Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
Contact Resistance (Jack): < 20 mΩ
Contact Resistance (XLR): < 10 mΩ
Contacts Material: Bronze (CuSn6)
Dielectric Strength: 1.5 kVdc
Flammability: UL 94 V-0
Gender: female
Insert Material: PA66
Insertion Force: ≤ 25 N
Insulation Resistance: > 10 GΩ (initial)
Lifetime: > 1000 mating cycles
Locking Element Material: Steel Ck67
Mounting Direction: Rear mounting
Panel Thickness: max. 7 mm (0.27")
Rated Current per Contact (Jack): 7.5 A
Rated Current per Contact (XLR): 7.5 A
Rated Voltage: < 50 V
Temperature Range: -30 °C to +80 °C
Termination Type: Solder cups
Withdrawal Force: ≤ 25 N
Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
Contact Resistance (Jack): < 20 mΩ
Contact Resistance (XLR): < 10 mΩ
Contacts Material: Bronze (CuSn6)
Dielectric Strength: 1.5 kVdc
Flammability: UL 94 V-0
Gender: female
Insert Material: PA66
Insertion Force: ≤ 25 N
Insulation Resistance: > 10 GΩ (initial)
Lifetime: > 1000 mating cycles
Locking Element Material: Steel Ck67
Mounting Direction: Rear mounting
Panel Thickness: max. 7 mm (0.27")
Rated Current per Contact (Jack): 7.5 A
Rated Current per Contact (XLR): 7.5 A
Rated Voltage: < 50 V
Temperature Range: -30 °C to +80 °C
Termination Type: Solder cups
Withdrawal Force: ≤ 25 N
-
