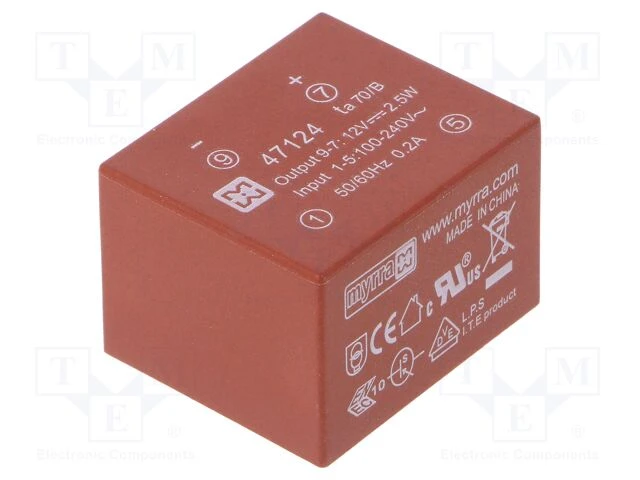

Converter AC/DC PCB 12V DC output 2.5W, 0.21A

The MYRRA 47124 is a 2.5W AC/DC converter designed for PCB mounting in an encapsulated package, offering an energy-efficient power solution. Based on flyback topology, it provides a stabilized 12V DC output from a wide input voltage range.

Key Features

- Provides 2.5W output power

- Wide input voltage range: 85-265 V AC, 120-370 V DC

- Stabilized 12 V DC output at up to 210 mA

- Based on efficient flyback topology

- High operational efficiency

- Low power consumption under no-load conditions

- Integrated protections: Overcurrent, overpower, undervoltage, short circuit, overtemperature, and voltage sag

- Compact design allows replacement of traditional 50 Hz transformer, fuse, bridge rectifier, and smoothing capacitor

- Facilitates modernization of existing equipment without requiring PCB redesign

Applications

This module is suitable for various types of equipment, including Information Technology Equipment (ITE), telecommunications systems, and electrical substations.
