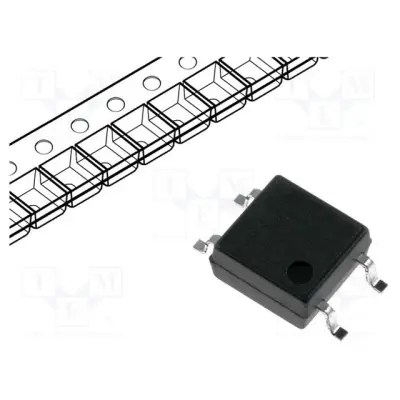

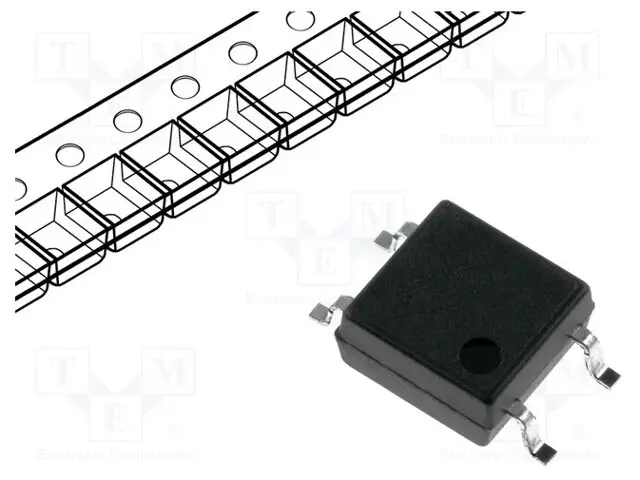

Relay: solid state; SPST-NO; Icntrl max: 50mA; 150mA; max.10
SKU: CPC1008N
The product is no longer available. Product is displayed only for informational purposes.
Relay: solid state; SPST-NO; Icntrl max: 50mA; 150mA; max.10
Tootja: IXYS
Relee tüüp: tahkis
Kontaktide konfiguratsioon: SPST-NO
Juhtvool max.: 50mA
Max töövool: 150mA
Lülituspinge: max. 100V AC, max. 100V DC
Relee variant: 1-faasiline, vooluallikas
Sisselülitatud takistus: 8Ω
Paigaldus: SMT
Juhtum: SOP4
Töötemperatuur: -40...85°C
Kere mõõdud: 4,09x3,81x2,03mm
Isolatsioonipinge: 1,5kV
Tootja seeria: OptoMOS
Sisselülitusaeg: 2 ms
Väljalülitusaeg: 1 ms
Brutomass: 0,066 g
-
