Digital 7-function DC Meter 0...200VDC 0...50ADC
SKU:LA240092B
New

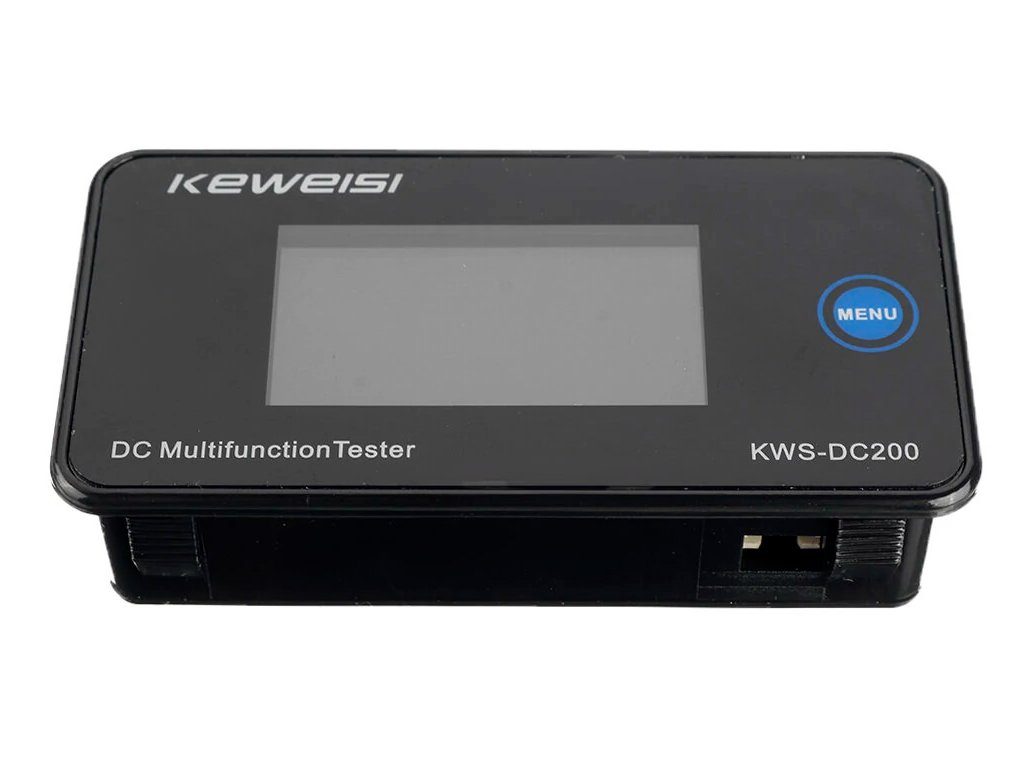

This digital, 7-function DC Multimeter is designed for panel mounting, providing comprehensive monitoring of electrical parameters in constant current circuits.
It is capable of simultaneously displaying multiple key metrics for system diagnostics and performance tracking.
Key Features
- Designed for permanent panel installation.
- Measurement Range: Voltage 0 to 200V DC; Current up to 50A DC.

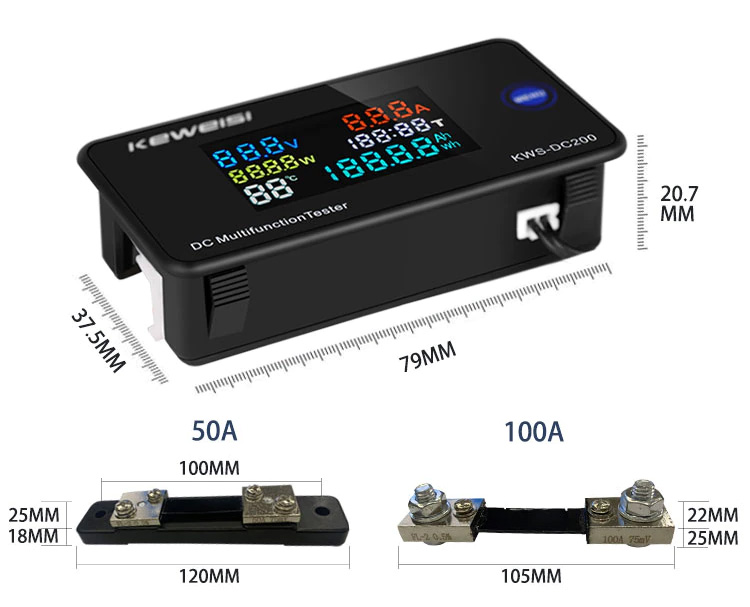

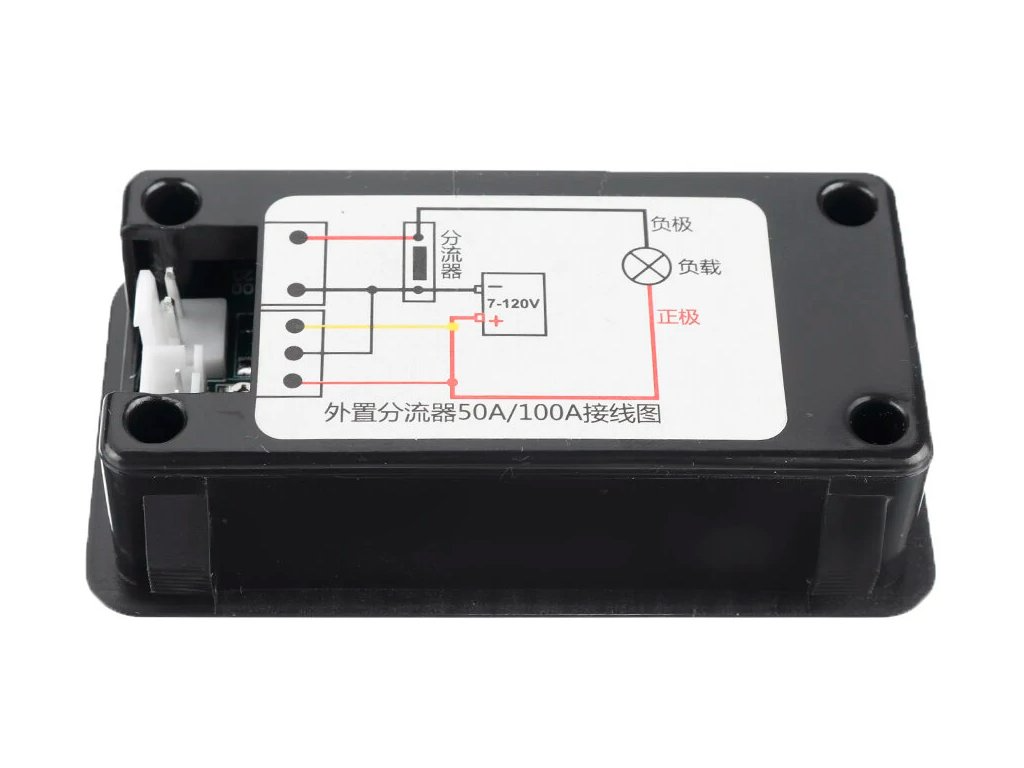

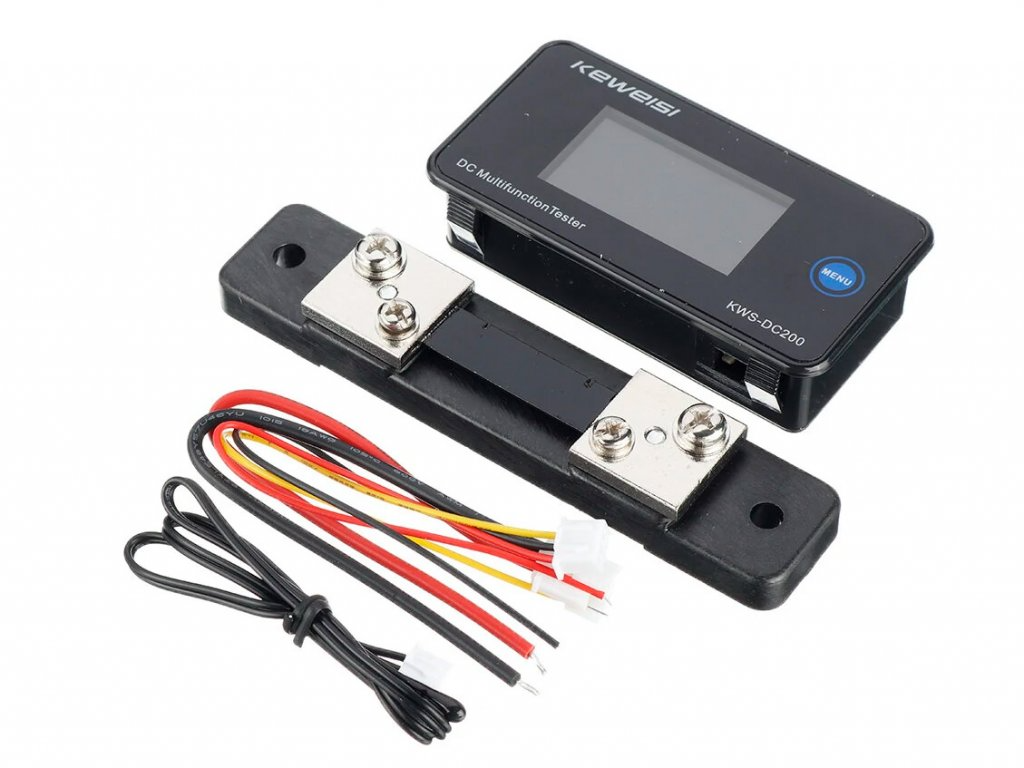

- Requires an external shunt for accurate current measurement up to 50A.
- Features a backlit LCD for convenient reading of simultaneous parameters.
7 Measurement Capabilities
The meter is capable of displaying:
- Voltage
- Current
- Power
- Consumed Energy (Wh/kWh)
- Capacity (Ah)
- Resistance/Impedance
- Operating Time
Applications
This device is suitable for monitoring critical DC systems, including automotive circuits, solar panel installations, battery banks, and integration into industrial assembly lines where continuous parameter tracking is essential.
It is capable of simultaneously displaying multiple key metrics for system diagnostics and performance tracking.
Key Features
- Designed for permanent panel installation.
- Measurement Range: Voltage 0 to 200V DC; Current up to 50A DC.
- Requires an external shunt for accurate current measurement up to 50A.
- Features a backlit LCD for convenient reading of simultaneous parameters.
7 Measurement Capabilities
The meter is capable of displaying:
- Voltage
- Current
- Power
- Consumed Energy (Wh/kWh)
- Capacity (Ah)
- Resistance/Impedance
- Operating Time
Applications
This device is suitable for monitoring critical DC systems, including automotive circuits, solar panel installations, battery banks, and integration into industrial assembly lines where continuous parameter tracking is essential.
Voltage Measurement Range: 0-200V DC
Current Measurement Range: 0-50A DC (требуется внешний шунт)
Power Measurement Range: 0-10000W
Energy Measurement Range (Wh/kWh): 0-9999kWh
Capacity Measurement Range (Ah): 0-1000AH
Measurement Accuracy: 1%
Display Type: LCD (с подсветкой)
Measured Parameters (7 functions): Напряжение (V), Ток (A), Мощность (W), Энергия (Wh/kWh), Емкость (Ah), Сопротивление/Импеданс (Ω), Время работы (h)
Current Measurement Range: 0-50A DC (требуется внешний шунт)
Power Measurement Range: 0-10000W
Energy Measurement Range (Wh/kWh): 0-9999kWh
Capacity Measurement Range (Ah): 0-1000AH
Measurement Accuracy: 1%
Display Type: LCD (с подсветкой)
Measured Parameters (7 functions): Напряжение (V), Ток (A), Мощность (W), Энергия (Wh/kWh), Емкость (Ah), Сопротивление/Импеданс (Ω), Время работы (h)
