SKU:LA240012W
Image is for illustrative purposes only

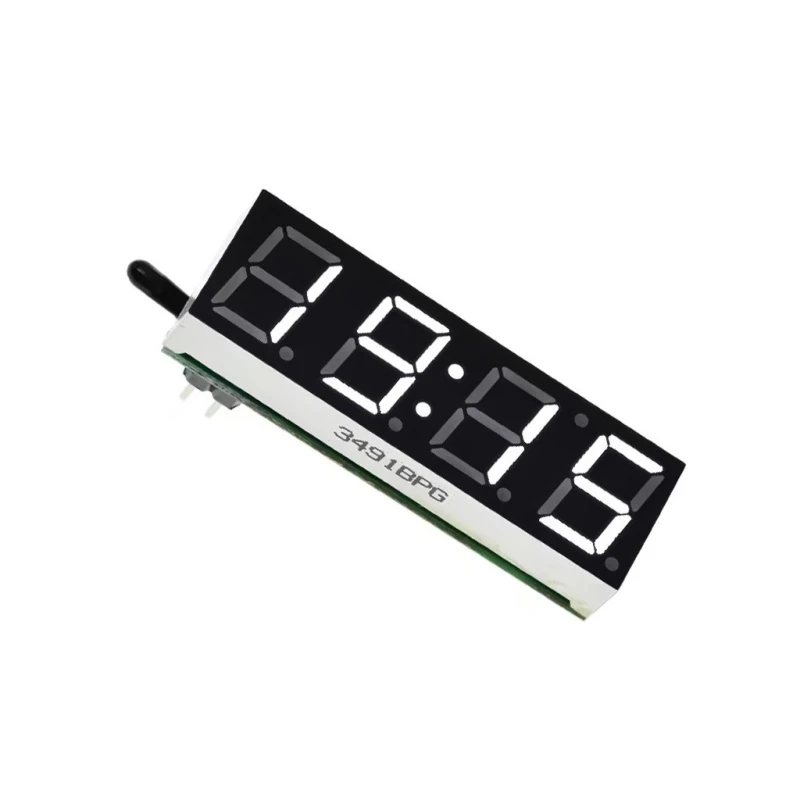

This compact module is a versatile 3-in-1 solution, combining a digital clock, voltmeter, and thermometer into a single unit with a clear 4-digit, 7-segment LED display. It features a highly accurate real-time clock (based on the DS3231 circuit) that also shows the date. Additionally, it functions as a voltmeter to monitor the input supply voltage and a thermometer to display the ambient temperature. Control is simple with two buttons on the back of the module, making it an excellent addition to any electronics project, vehicle dashboard, or custom equipment.
Please note: This module is not a standalone product and may require professional installation. To prevent damage, do not connect to a 24V vehicle battery while the charging system is active (on-board voltage may exceed 30V).
Please note: This module is not a standalone product and may require professional installation. To prevent damage, do not connect to a 24V vehicle battery while the charging system is active (on-board voltage may exceed 30V).
Supply voltage: 5 - 30V DC
Sign height: 0.39" - 9.9mm
Temperature measurement range: -40 - 120ºC (0.1ºC resolution)
Voltage measurement range: 5 - 30V DC (0.1V resolution)
Real-time circuit: DS3231 or RX8025T clone
Length of temperature sensor: 50mm
Dimensions: 40x13x13mm
Weight: 7g
Sign height: 0.39" - 9.9mm
Temperature measurement range: -40 - 120ºC (0.1ºC resolution)
Voltage measurement range: 5 - 30V DC (0.1V resolution)
Real-time circuit: DS3231 or RX8025T clone
Length of temperature sensor: 50mm
Dimensions: 40x13x13mm
Weight: 7g
