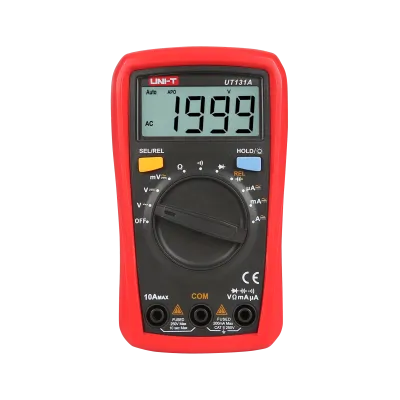

UT131A Palm Size Multimeter
SKU:UT131A
Manufacturer:Uni-T
The UNI-T UT131A is a compact, next-generation digital multimeter designed for measuring AC/DC voltage, AC/DC current, resistance, and capacitance. Its streamlined design and automated features make it a reliable tool for various electrical testing tasks.
Key Features
- Features auto-ranging functionality for simplified and efficient measurements.
- Built with an ergonomic, impact-resistant housing capable of withstanding drops from up to 2 meters.
- Equipped with a backlit LCD display for clear readings in low-light environments.
- Includes a Data Hold function to freeze readings and Auto Power Off to preserve battery life.
- Complies with CAT II 250V safety standards for secure operation.
Applications
With its durable construction and comprehensive measurement capabilities, the UT131A is well-suited for both professional electrical diagnostics and general domestic maintenance.
Key Features
- Features auto-ranging functionality for simplified and efficient measurements.
- Built with an ergonomic, impact-resistant housing capable of withstanding drops from up to 2 meters.
- Equipped with a backlit LCD display for clear readings in low-light environments.
- Includes a Data Hold function to freeze readings and Auto Power Off to preserve battery life.
- Complies with CAT II 250V safety standards for secure operation.
Applications
With its durable construction and comprehensive measurement capabilities, the UT131A is well-suited for both professional electrical diagnostics and general domestic maintenance.
DC Voltage: 200mV/2V/20V/200V/250V
AC Voltage: 200mV/2V/20V/200V/250V
DC Current: 200μA/2000μA/20mA/200mA/2A/10A
AC Current: 200μA/2000μA/20mA/200mA/2A/10A
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ
Capacitance: 2nF/20nF/200nF/2μF/20μF/200μF/2mF
Display Count: 2000
Range Selection: Auto
Diode Test: Yes
Continuity Buzzer: Yes
Data Hold: Yes
LCD Backlight: Yes
Auto Power Off: Yes
Drop Test: 2m
Safety Rating: CAT II 250V
Power: 1.5V Battery (R03) x 2
Dimensions: 134mm x 77mm x 47mm
Weight: 206g
