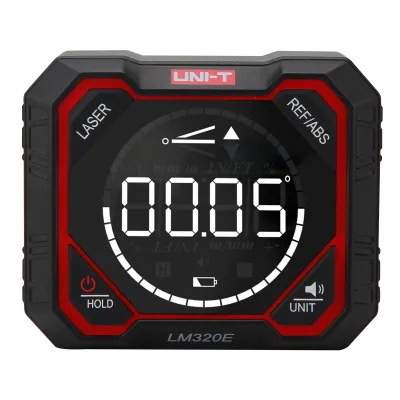

Angle Meter
SKU:LM320E
Manufacturer:Uni-T
Image is for illustrative purposes only
The Uni-T LM320E is a lightweight, portable digital inclinometer designed for highly accurate angular measurements. Constructed with a durable aluminum alloy body, it is suitable for demanding applications in construction and mechanical assembly.
Key Features - Durable aluminum alloy housing for longevity.
- Full 4×90° measurement range, providing real-time tilt angle data.
- High-contrast color display with automatic rotation for optimal readability in any position.
- Integrated dual laser lines for precise positioning and leveling.
- Double-sided magnetic base (bottom and rear) ensures stable fixation on metallic surfaces.
- Supports absolute and relative measurement modes, including a data hold function.
- Powered by a built-in 1000 mAh lithium rechargeable battery, utilizing USB-C charging.
Applications Ideal for precise angular measurements and leveling in construction, mechanical engineering, and installation projects.
Key Features - Durable aluminum alloy housing for longevity.
- Full 4×90° measurement range, providing real-time tilt angle data.
- High-contrast color display with automatic rotation for optimal readability in any position.
- Integrated dual laser lines for precise positioning and leveling.
- Double-sided magnetic base (bottom and rear) ensures stable fixation on metallic surfaces.
- Supports absolute and relative measurement modes, including a data hold function.
- Powered by a built-in 1000 mAh lithium rechargeable battery, utilizing USB-C charging.
Applications Ideal for precise angular measurements and leveling in construction, mechanical engineering, and installation projects.
Angle Measurement Accuracy: ±0.2°
Automatic Shut-off: After 5 min
Battery Life: 8h
Data Hold: Yes
Dimensions: 83.5 × 70 × 35.5mm
Housing Material: Aluminum alloy + ABS
Laser Accuracy: ±3mm/5m
Laser Class: Class 2
Laser Lines: 2 lines
Laser Type: 630-670nm, <1mW
Magnetic Base: Two-sided (Bottom and rear)
Measurement Modes: Relative / Absolute
Measurement Range: 4×90°
Measurement Units: °; %; mm/m; in/ft
Operating Temperature: 0°C ~ 50°C
Power Supply: 3.7V / 1000mAh Lithium rechargeable battery
Repeatability Accuracy: ±0.2°
Resolution: 0.05°
Screen Auto-Rotation: Yes
Weight: approx. 180g
Automatic Shut-off: After 5 min
Battery Life: 8h
Data Hold: Yes
Dimensions: 83.5 × 70 × 35.5mm
Housing Material: Aluminum alloy + ABS
Laser Accuracy: ±3mm/5m
Laser Class: Class 2
Laser Lines: 2 lines
Laser Type: 630-670nm, <1mW
Magnetic Base: Two-sided (Bottom and rear)
Measurement Modes: Relative / Absolute
Measurement Range: 4×90°
Measurement Units: °; %; mm/m; in/ft
Operating Temperature: 0°C ~ 50°C
Power Supply: 3.7V / 1000mAh Lithium rechargeable battery
Repeatability Accuracy: ±0.2°
Resolution: 0.05°
Screen Auto-Rotation: Yes
Weight: approx. 180g
