LM320F Angle Meter
SKU:LM320F
Manufacturer:Uni-T
New

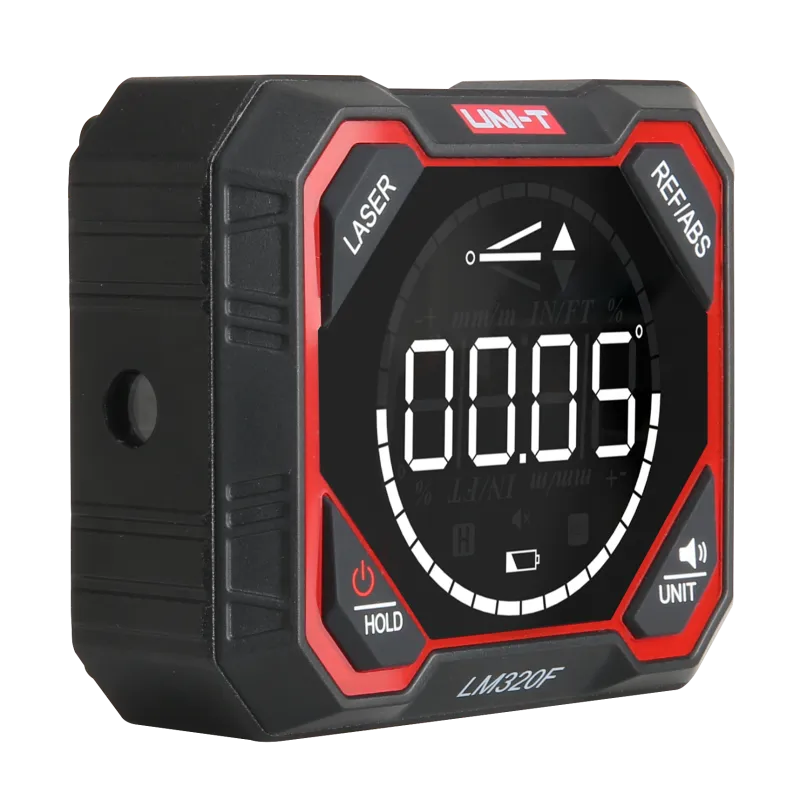

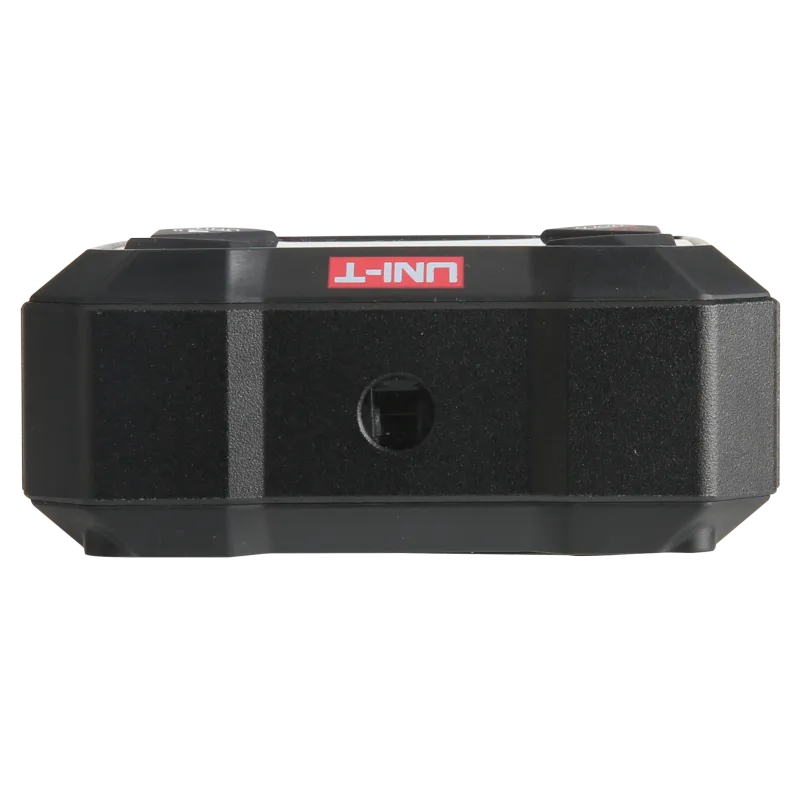

Image is for illustrative purposes only
The UNI-T LM320F is a professional digital inclinometer housed in a compact, durable aluminum alloy body, designed for high-precision angle measurements across a full 4×90° range. This versatile tool combines digital accuracy with integrated laser functionality to streamline layout and leveling tasks.
Key Features
- Equipped with powerful magnets on all four sides for secure, hands-free attachment to any metallic surface.
- Features a built-in 3-line laser to assist with precise marking, positioning, and alignment.
- Includes a high-contrast display with an auto-rotation function that adjusts the image based on the device's orientation.
- Supports both absolute and relative measurement modes for diverse technical requirements.
- Offers multiple selectable units, including degrees, percentages, mm/m, and in/ft, with a convenient Data Hold function.
- Powered by an internal 1000mAh lithium battery, rechargeable via a modern USB Type-C interface.
Applications
The LM320F is specifically designed for professional use in construction, engineering, and woodworking. Its magnetic housing and laser alignment capabilities make it particularly effective for installing metal structures, leveling machinery, and performing complex layout work where high accuracy is required.
Key Features
- Equipped with powerful magnets on all four sides for secure, hands-free attachment to any metallic surface.
- Features a built-in 3-line laser to assist with precise marking, positioning, and alignment.
- Includes a high-contrast display with an auto-rotation function that adjusts the image based on the device's orientation.
- Supports both absolute and relative measurement modes for diverse technical requirements.
- Offers multiple selectable units, including degrees, percentages, mm/m, and in/ft, with a convenient Data Hold function.
- Powered by an internal 1000mAh lithium battery, rechargeable via a modern USB Type-C interface.
Applications
The LM320F is specifically designed for professional use in construction, engineering, and woodworking. Its magnetic housing and laser alignment capabilities make it particularly effective for installing metal structures, leveling machinery, and performing complex layout work where high accuracy is required.
Angle Accuracy: ±0.2°
Battery Life: ~6h
Charging Port: USB Type-C
Dimensions: 83.5 x 70 x 35.5 mm
Display: LED-backlit rotatable screen (EBTN)
Laser Accuracy: ±3mm/5m
Laser Class: Class 2
Laser Lines: 3 lines
Laser Type: 630-670nm, <1mW
Magnetic Base: 4-sided (Bottom, rear, left, right)
Materials: Aluminum alloy frame + ABS
Measurement Range: 4x90°
Power Supply: 3.7V 1000mAh lithium battery
Repeatability: ±0.2°
Resolution: ±0.05°
Units: °, %, mm/m, in/ft
Weight: ~180g
Working Temperature: 0°C ~ 50°C
