Image is for illustrative purposes only

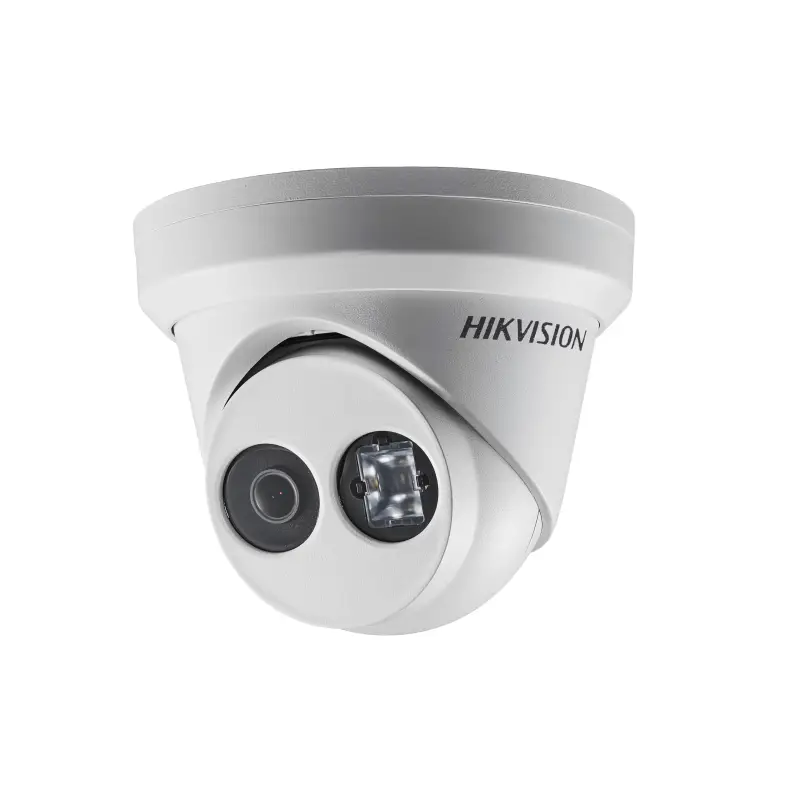

Outdoor IP camera 8MP 4mm EXIR WDR

  • SKU: DS-2CD2385FWD-I4
  • HikVision

Product Enquiry

Up to 8 megapixel high resolution

Max. 2048x1536 @30fps

Ultra-low light DarkFighter technology

120dB Wide Dynamic Range

Smart Feature Detection: Line Crossing, Intrusion,Object Removal, Unattended Baggage, Face Detection,Behavior Analysis

3D Digital Noise Reduction

12 VDC & PoE (802.3af)

IR range: up to 30 m

Support on-board storage, up to 128 GB

3-Axis Adjustment

IP67

Image Sensor 1/2.5" Progressive Scan CMOS

Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR

Shutter Speed 1/3 s to 1/100,000 s

Slow Shutter Support

Lens

2.8 mm, horizontal field of view: 102°

4 mm, horizontal field of view: 79°

6 mm, horizontal field of view: 50°

8 mm, horizontal field of view: 40°

12 mm, horizontal field of view: 23°

Lens Mount M12

Iris F2.0

Day &Night IR cut filter

DNR 3D DNR

Wide Dynamic Range 120dB

3-Axis Adjustment Pan: 0°to 360°, tilt: 0°to 75°, rotate: 0°to 360°

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type Main Profile/High Profile

H.264+ Supports

H.265 Type Main Profile

H.265+ Supports

Video Bit Rate 32 Kbps to 16 Mbps


Max. Resolution 3840 × 2160

Main Stream

50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)

Image Enhancement BLC/3D DNR

Image Settings Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web

browser and client software

ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately

Day/Night Switch Auto/Scheduled

Network

Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Alarm Trigger Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,

HDD full, HDD error

Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,

SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Standard ONVIF (PROFILE S, PROFILE G), ISAPI


General Function One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask,

Watermark, IP Address Filter

Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set

Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal

detection

Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported

Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported

Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.

Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Face Detection Human face appears in the image can be detected and trigger linkage method

General

Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Power Supply 12 VDC ± 25%, 6.5 W

PoE(802.3af, 36 – 57V, class 3), 8.5 W

IR Range Up to 30 m

Protection Level IP67

Dimensions

Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″)

Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)

Weight Camera: 620 g
