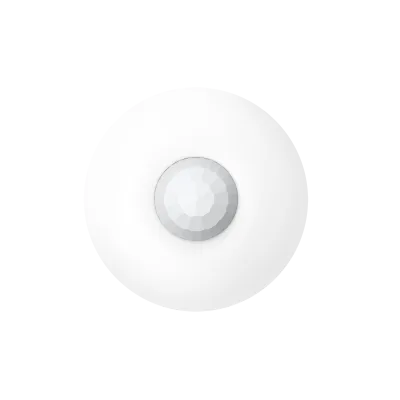

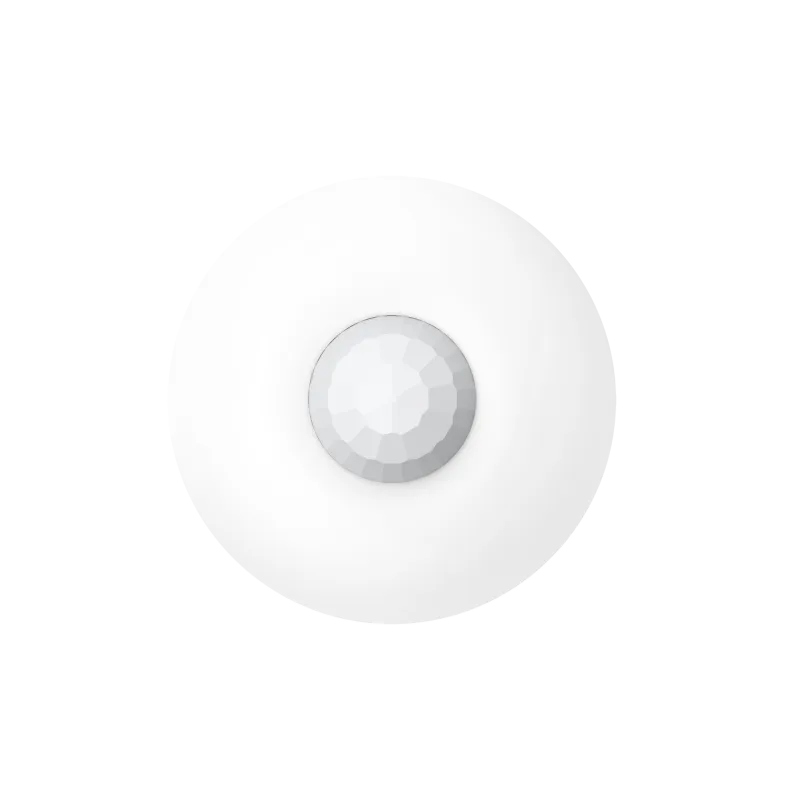

Ax Pro Wireless 360 /12m, motion sensor
SKU:DS-PDCL12-EG2-WE
Image is for illustrative purposes only
The DS-PDCL12-EG2-WE is a high-performance wireless PIR ceiling detector, providing comprehensive 360° coverage with a detection range of up to 12 meters. This makes it an ideal solution for monitoring large indoor areas from a single, discreet point.
Equipped with SEC (Smart Environmental Control) technology, this detector utilizes advanced digital signal processing and 3D optics to ensure reliable detection and minimize false alarms. For ultimate convenience, it is fully remotely configurable through a mobile application, allowing you to adjust settings and monitor status from anywhere.
The design prioritizes user-friendliness, featuring multiple enrollment methods for quick setup and an easily replaceable battery with PCB protection for simple maintenance. To ensure robust and secure communication, it employs Tri-X Wireless technology with frequency hopping, which actively counters signal jamming and guarantees reliable data transmission.
Equipped with SEC (Smart Environmental Control) technology, this detector utilizes advanced digital signal processing and 3D optics to ensure reliable detection and minimize false alarms. For ultimate convenience, it is fully remotely configurable through a mobile application, allowing you to adjust settings and monitor status from anywhere.
The design prioritizes user-friendliness, featuring multiple enrollment methods for quick setup and an easily replaceable battery with PCB protection for simple maintenance. To ensure robust and secure communication, it employs Tri-X Wireless technology with frequency hopping, which actively counters signal jamming and guarantees reliable data transmission.
Detection Method: Passive Infrared
Detection Range: 12m
Detection Angle: 360°
Detection Zones: 172
Detectable Speed: 0.3～2m/s
Sensitivity: Auto;Low
White Light Filter: 6500lux
Digital Temperature Compensation: Support
Creep Zone Protection: Support
Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front;Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support
Power Switch: Power up enrolling
LED Indicator: Blue (alarm)
Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 868MHz
Transmission Security: AES-128 Encryption
Transmission Range (Free Space): 1.6Km
Frequency Hopping: Support
Enrolling Method: Power up;Remote ID;QR Code
Standard Battery Life: Up to 5 years (standby time)
Power Supply: Battery powered
Battery Type: CR123A × 1
Typical Voltage: 3V
Operation Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operation Humidity: 10% to 90%
Dimension (WxHxD): φ101.2 mm x 32.9 mm
Weight: 109.5 g
Mounting Height: 2.4 m to 4 m
Mounting Method: Ceiling
Application Scenario: Indoor
Detection Range: 12m
Detection Angle: 360°
Detection Zones: 172
Detectable Speed: 0.3～2m/s
Sensitivity: Auto;Low
White Light Filter: 6500lux
Digital Temperature Compensation: Support
Creep Zone Protection: Support
Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front;Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support
Power Switch: Power up enrolling
LED Indicator: Blue (alarm)
Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 868MHz
Transmission Security: AES-128 Encryption
Transmission Range (Free Space): 1.6Km
Frequency Hopping: Support
Enrolling Method: Power up;Remote ID;QR Code
Standard Battery Life: Up to 5 years (standby time)
Power Supply: Battery powered
Battery Type: CR123A × 1
Typical Voltage: 3V
Operation Temperature: -10°C to 55°C (14°F to 131°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operation Humidity: 10% to 90%
Dimension (WxHxD): φ101.2 mm x 32.9 mm
Weight: 109.5 g
Mounting Height: 2.4 m to 4 m
Mounting Method: Ceiling
Application Scenario: Indoor
-
