E27 socket for lamp RF receiver, Exta Free
SKU:RWL-01-TT
Manufacturer:Zamel
TIKK-TAKK
Image is for illustrative purposes only

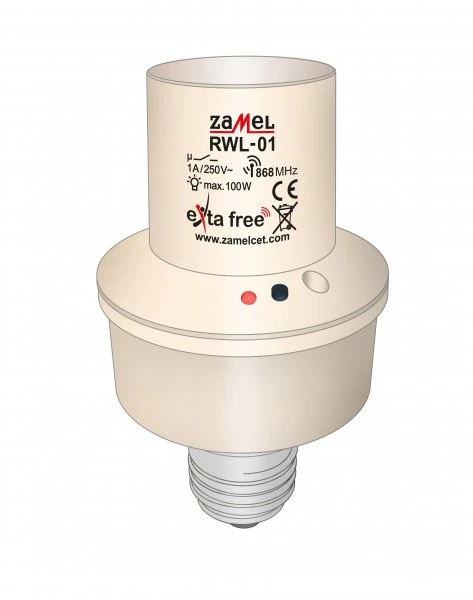

The RWL-01 is a compact receiver for the EXTA FREE system, which can be installed in a light fitting with an E27 socket, making it radio-controlled and compatible with other EXTA FREE system elements.
Features:
* Collaboration with wireless EXTA FREE system transmitters
* Simple and fast installation without tools
* Light source maximum up to 100W (incandescent lamp, energy-saving lamp, LED)

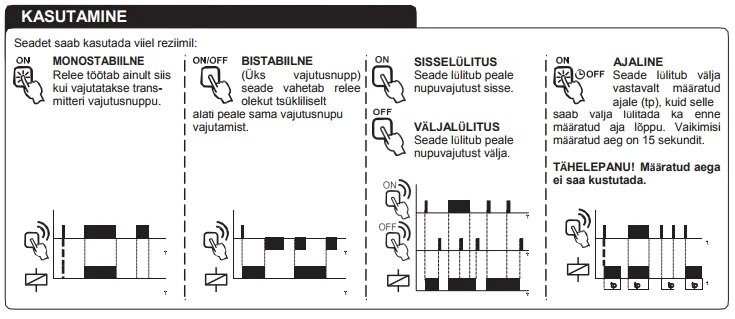

* 5 operating modes - switching on, switching off, monostable, bistable, and timed (delayed shutdown)
* Large operating range (up to 200m)
* Operating range can be extended with the RTN-01 retransmitter
* Low power consumption of 0.29W
Features:
* Collaboration with wireless EXTA FREE system transmitters
* Simple and fast installation without tools
* Light source maximum up to 100W (incandescent lamp, energy-saving lamp, LED)
* 5 operating modes - switching on, switching off, monostable, bistable, and timed (delayed shutdown)
* Large operating range (up to 200m)
* Operating range can be extended with the RTN-01 retransmitter
* Low power consumption of 0.29W
Rated input voltage: 230 V AC
Input voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 / 60 Hz
Nominal power consumption: 0.29 W
Number of operation modes: 5
Number of channels: 1
Transmission: radio 868.32 MHz
Transmission way: unidirectional
Coding: addressing transmission
Maximum number of transmitters: 32
Range: up to 200 m in the open air
Time adjustment: 1 second ÷ 18 hours (every 1 sec.)
Optical signalling of transmitter’s operation: LED red diode
Maximum light source: 100 W
Ambient temperature range: -10 ÷ +55 °C
Operating position: free
Casing mounting: electric-light fitting
Casing protection degree: IP20 (PN-EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (PN-EN 61000-4-5)
Dimensions: Ø 62.5 x 103 mm
Weight: 0.099 kg
Reference standard: PN-EN 60669, PN-EN 60950, PN-EN 61000
Input voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 / 60 Hz
Nominal power consumption: 0.29 W
Number of operation modes: 5
Number of channels: 1
Transmission: radio 868.32 MHz
Transmission way: unidirectional
Coding: addressing transmission
Maximum number of transmitters: 32
Range: up to 200 m in the open air
Time adjustment: 1 second ÷ 18 hours (every 1 sec.)
Optical signalling of transmitter’s operation: LED red diode
Maximum light source: 100 W
Ambient temperature range: -10 ÷ +55 °C
Operating position: free
Casing mounting: electric-light fitting
Casing protection degree: IP20 (PN-EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (PN-EN 61000-4-5)
Dimensions: Ø 62.5 x 103 mm
Weight: 0.099 kg
Reference standard: PN-EN 60669, PN-EN 60950, PN-EN 61000
-
