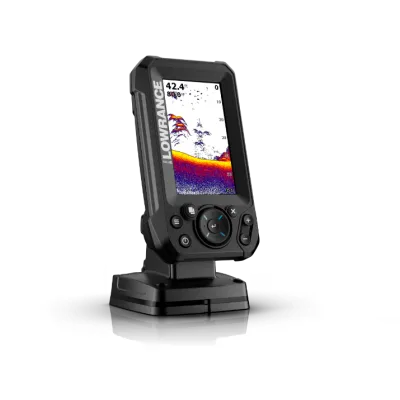

Lowrance Eagle 4x with Bullet Skimmer Transducer
SKU:000-16110-001
New
Image is for illustrative purposes only
Product Overview
The Lowrance Eagle 4x is a compact and user-friendly fishfinder designed specifically for kayaks and small fishing boats with limited mounting space. It provides reliable sonar performance in a streamlined, easy-to-install package.
Key Features
- 4-inch IPS Display: Features a portrait orientation with high-clarity visuals and wide viewing angles, ensuring readability in direct sunlight and when wearing polarized sunglasses.
- Bullet Skimmer Transducer: Utilizes a 200 kHz frequency with a wide-angle beam to scan twice the area of conventional sonar systems for better coverage.
- Autotuning Sonar: Delivers optimal performance by automatically adjusting settings based on changing water conditions, eliminating the need for manual configuration.
- Twist-Lock Connector System: Features a new rotary-locking mechanism that ensures a secure, reliable connection and simplifies the installation and removal process.
Applications
With its small footprint and specialized display, the Eagle 4x is an ideal solution for anglers operating in confined spaces, such as kayaks or small utility boats, where simple and efficient depth and fish finding are required.
The Lowrance Eagle 4x is a compact and user-friendly fishfinder designed specifically for kayaks and small fishing boats with limited mounting space. It provides reliable sonar performance in a streamlined, easy-to-install package.
Key Features
- 4-inch IPS Display: Features a portrait orientation with high-clarity visuals and wide viewing angles, ensuring readability in direct sunlight and when wearing polarized sunglasses.
- Bullet Skimmer Transducer: Utilizes a 200 kHz frequency with a wide-angle beam to scan twice the area of conventional sonar systems for better coverage.
- Autotuning Sonar: Delivers optimal performance by automatically adjusting settings based on changing water conditions, eliminating the need for manual configuration.
- Twist-Lock Connector System: Features a new rotary-locking mechanism that ensures a secure, reliable connection and simplifies the installation and removal process.
Applications
With its small footprint and specialized display, the Eagle 4x is an ideal solution for anglers operating in confined spaces, such as kayaks or small utility boats, where simple and efficient depth and fish finding are required.
Dimensions (W x H x D): 3.84" x 6.61" x 3.66"
Display Size: 4 inches
Display Type: IPS
Interface: Twist-lock connector system
Mounting Type: Bracket mount or Panel mount
Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
Power Consumption (Max): 2.34 W
Power Supply: 12V DC (10.4-17VDC)
Recommended Fuse Rating: 3A
Resolution: 272 x 480 px
Screen Brightness: 1000 NITS
Sonar Frequency: 200 kHz
Sonar Type: Broadband
Transducer: Bullet Skimmer
Viewing Angle: 85° top/bottom, 85° left/right
Waterproof Rating: IPX7
Display Size: 4 inches
Display Type: IPS
Interface: Twist-lock connector system
Mounting Type: Bracket mount or Panel mount
Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
Power Consumption (Max): 2.34 W
Power Supply: 12V DC (10.4-17VDC)
Recommended Fuse Rating: 3A
Resolution: 272 x 480 px
Screen Brightness: 1000 NITS
Sonar Frequency: 200 kHz
Sonar Type: Broadband
Transducer: Bullet Skimmer
Viewing Angle: 85° top/bottom, 85° left/right
Waterproof Rating: IPX7
-
