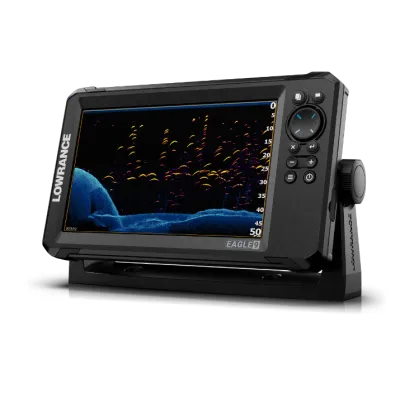

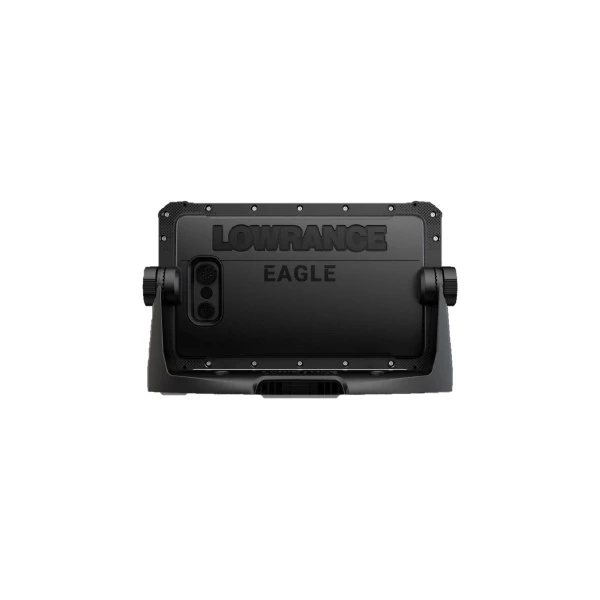

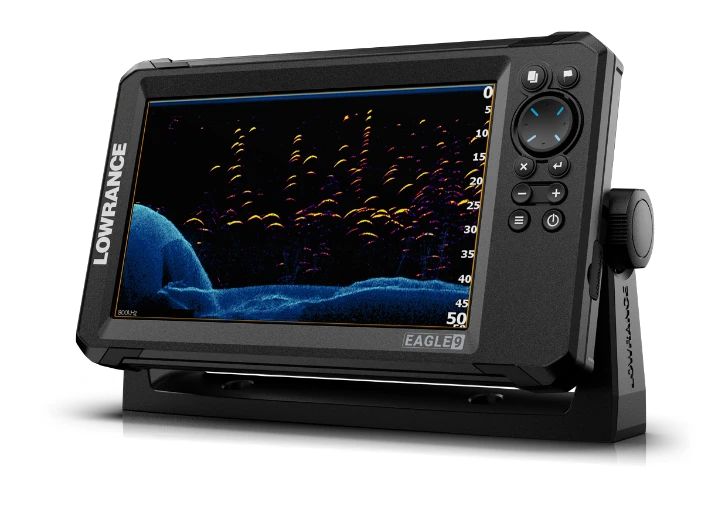

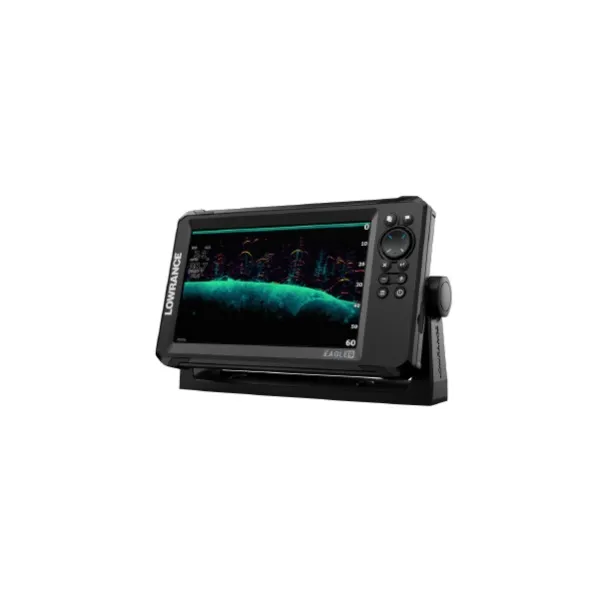

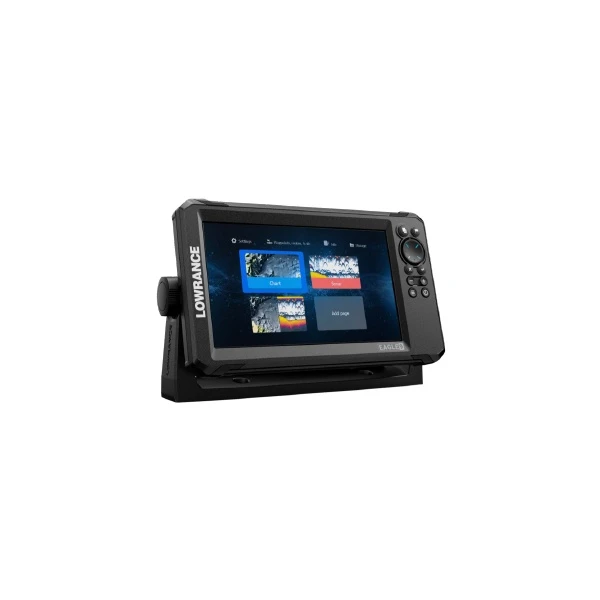

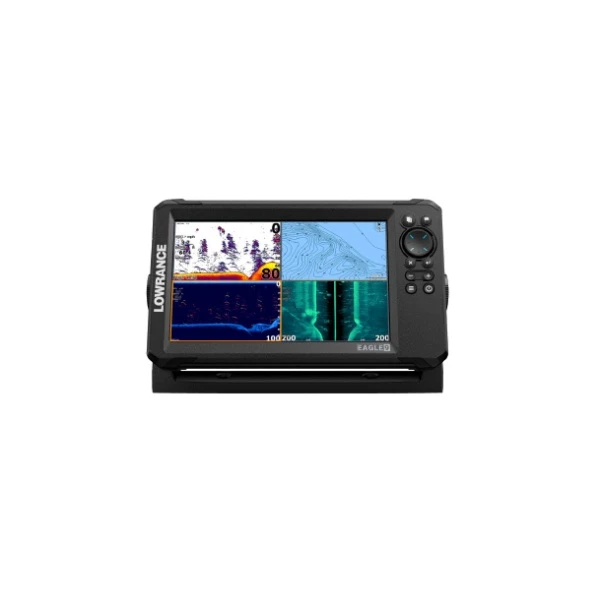

Fishfinder EAGLE 9 TripleShot ROW
SKU:000-16127-001
New
Image is for illustrative purposes only
The Lowrance Eagle® 9 has been engineered to make your time on the water as straightforward and rewarding as possible. This device is extremely user-friendly and quick to install, providing professional-grade sonar technology in an accessible package for any angler.
Equipped with the newly designed TripleShot™ HD Transducer and integrated FishReveal™ technology, this model offers exceptional clarity, making it easier than ever to distinguish fish from underwater structures. Thanks to the autotuning sonar, you no longer need to spend time manually adjusting settings; the system automatically finds the optimal configuration for current water conditions.
The unit features a high-performance IPS screen that delivers superior resolution and visibility. Whether you are wearing polarized sunglasses or viewing from a sharp angle in direct sunlight, the display remains clear and sharp. Additionally, the Eagle 9 supports Genesis Live real-time mapping, allowing you to create personalized maps of your favorite fishing spots with precise half-foot contours directly as you navigate.
Equipped with the newly designed TripleShot™ HD Transducer and integrated FishReveal™ technology, this model offers exceptional clarity, making it easier than ever to distinguish fish from underwater structures. Thanks to the autotuning sonar, you no longer need to spend time manually adjusting settings; the system automatically finds the optimal configuration for current water conditions.
The unit features a high-performance IPS screen that delivers superior resolution and visibility. Whether you are wearing polarized sunglasses or viewing from a sharp angle in direct sunlight, the display remains clear and sharp. Additionally, the Eagle 9 supports Genesis Live real-time mapping, allowing you to create personalized maps of your favorite fishing spots with precise half-foot contours directly as you navigate.
Backlight Color: Pure white LED
Display Resolution: 1024 x 600
Display Size: 9 inches
Screen Brightness: 1000 NITS
Viewing Angles: 80° top/bottom, 80° left/right
SD Card Storage: 1 slot (microSD® 32 GB maximum)
Charts supported: C-MAP® DISCOVER™
Power Consumption max: 640 mA @ 12 V DC with backlight on full
Power Consumption typical: 640 mA @ 12 V DC with backlight on full
Recommended Fuse Rating: 3A
Supply Voltage: 12v DC (10.8-17VDC)
Humidity: 60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
Waterproof rating: IPX7 with card door closed
Correction: SBAS
Time to First Fix: 45s
Cartography included: Worldwide basemap chart
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails
Compass Safe: 12" (300mm)
Dimensions W x H x D: 287.2 mm (11.30") x 162.5 mm (6.39") x 90 mm (3.54")
Mounting Type: Gimbal bracket or dash mount
Weight: 0.9 kg (1.98 lb)
Interface: 8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period: 1 Year + 4 additional years of upgrade options totaling 5 years
In the box:
HOOK² / Reveal 9 Bracket
EAGLE TripleShot™ Transducer
Display Resolution: 1024 x 600
Display Size: 9 inches
Screen Brightness: 1000 NITS
Viewing Angles: 80° top/bottom, 80° left/right
SD Card Storage: 1 slot (microSD® 32 GB maximum)
Charts supported: C-MAP® DISCOVER™
Power Consumption max: 640 mA @ 12 V DC with backlight on full
Power Consumption typical: 640 mA @ 12 V DC with backlight on full
Recommended Fuse Rating: 3A
Supply Voltage: 12v DC (10.8-17VDC)
Humidity: 60°C, 95% relative humidity (RH) for 48 hours
Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
Storage Temperature Range: 4°F to 140°F (-20°C to 60°C)
Waterproof rating: IPX7 with card door closed
Correction: SBAS
Time to First Fix: 45s
Cartography included: Worldwide basemap chart
Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails
Compass Safe: 12" (300mm)
Dimensions W x H x D: 287.2 mm (11.30") x 162.5 mm (6.39") x 90 mm (3.54")
Mounting Type: Gimbal bracket or dash mount
Weight: 0.9 kg (1.98 lb)
Interface: 8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight
Warranty Period: 1 Year + 4 additional years of upgrade options totaling 5 years
In the box:
HOOK² / Reveal 9 Bracket
EAGLE TripleShot™ Transducer
-
