Eagle Eye™ 9 Live ROW Ice Pack
SKU:000-16130-001KOM
The Lowrance Eagle Eye™ 9 Live ROW Ice Pack is a professional-grade winter fishing system centered on a high-performance Eagle series fishfinder and chartplotter. This all-in-one kit is engineered to provide real-time underwater visibility and precise mapping specifically for ice fishing environments.
Key Features
- Eagle Eye Transducer: Integrates Live Forward and Live Down sonar, traditional CHIRP, and DownScan Imaging with FishReveal into a single housing.
- 9-inch IPS Display: Features a 1024x600 resolution for sharp images and wide viewing angles, optimized for clear visibility even when wearing polarized sunglasses.
- Real-Time Sonar: Enables anglers to track lure movement and observe fish reactions as they occur.
- Genesis Live Mapping: Supports the creation of custom depth maps with 15 cm contours in real-time during use.
- Complete Ice Kit: Includes a protective carry bag, a 7 Ah battery, a dedicated charger, and a specialized transducer mount designed for ice holes.
Applications
This specialized kit is designed for mobile ice fishing, offering a portable and rugged solution for locating fish and understanding underwater structures. Its high-detail imaging and real-time feedback make it ideal for anglers requiring precise lure tracking and custom mapping in demanding winter conditions.
Key Features
- Eagle Eye Transducer: Integrates Live Forward and Live Down sonar, traditional CHIRP, and DownScan Imaging with FishReveal into a single housing.
- 9-inch IPS Display: Features a 1024x600 resolution for sharp images and wide viewing angles, optimized for clear visibility even when wearing polarized sunglasses.
- Real-Time Sonar: Enables anglers to track lure movement and observe fish reactions as they occur.
- Genesis Live Mapping: Supports the creation of custom depth maps with 15 cm contours in real-time during use.
- Complete Ice Kit: Includes a protective carry bag, a 7 Ah battery, a dedicated charger, and a specialized transducer mount designed for ice holes.
Applications
This specialized kit is designed for mobile ice fishing, offering a portable and rugged solution for locating fish and understanding underwater structures. Its high-detail imaging and real-time feedback make it ideal for anglers requiring precise lure tracking and custom mapping in demanding winter conditions.
Display: 9" IPS
Resolution: 1024 x 600
Brightness: >1000 nits
Viewing Angles: 85° top/bottom, 85° left/right
Sonar Technologies: Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™
FishReveal: Supported
Sonar Frequencies: High CHIRP, 455/800 kHz (DownScan)
Live Sonar Range: Optimal 3-6m, Max up to 15m
Mapping: Worldwide Basemap, Genesis Live (Real-time mapping)
Card Slot: 1x MicroSD (up to 32GB)
Waterproofing: IPX7
Operating Temperature: -15°C to +55°C
Power Supply: 12V DC
Battery: 12V 7Ah (included in Ice Pack)
Connector: New Twist-lock system

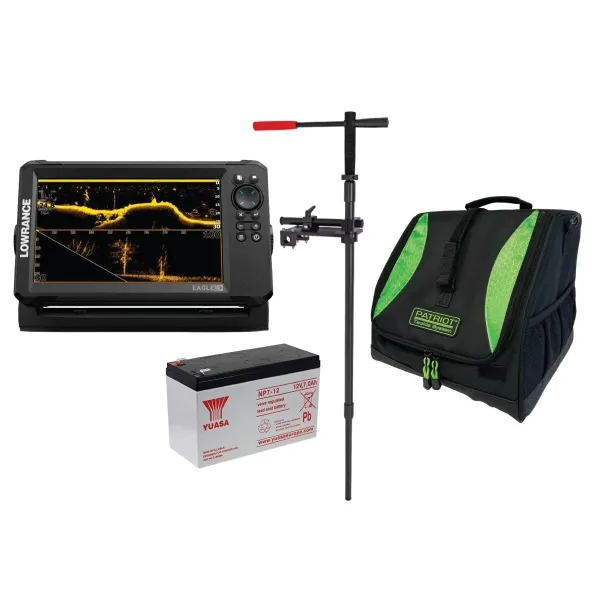

Bundle Contents: Eagle Eye 9 Live display, Eagle Eye transducer, Portable bag (Size L), 12V 7Ah battery, Charger, Ice transducer mount/pole
Resolution: 1024 x 600
Brightness: >1000 nits
Viewing Angles: 85° top/bottom, 85° left/right
Sonar Technologies: Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™
FishReveal: Supported
Sonar Frequencies: High CHIRP, 455/800 kHz (DownScan)
Live Sonar Range: Optimal 3-6m, Max up to 15m
Mapping: Worldwide Basemap, Genesis Live (Real-time mapping)
Card Slot: 1x MicroSD (up to 32GB)
Waterproofing: IPX7
Operating Temperature: -15°C to +55°C
Power Supply: 12V DC
Battery: 12V 7Ah (included in Ice Pack)
Connector: New Twist-lock system
Bundle Contents: Eagle Eye 9 Live display, Eagle Eye transducer, Portable bag (Size L), 12V 7Ah battery, Charger, Ice transducer mount/pole
