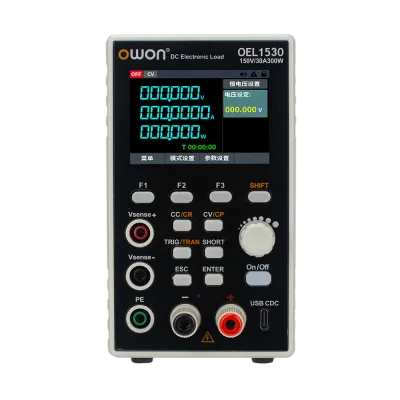

OEL15/30 Series DC Electronics Load

The OWON OEL1530 is a compact, portable, and high-performance programmable DC electronic load.

Key Features

- Features a clear 2.8-inch color TFT LCD display.

- Supports four operating modes: Constant Voltage (CV), Constant Current (CC), Constant Resistance (CR), and Constant Power (CP).

- Offers a wide operating range of 0-150 V and 0-30 A, with a maximum power of 300 W.

- Enables dynamic current testing up to 5 kHz.

- Provides high readback resolution of 1 mV / 0.1 mA.

- Integrated multi-protection functions: Over Voltage (OVP), Over Current (OCP), Over Power (OPP), and Over Temperature (OTP).

- Standard interfaces include RS232 and RS485, supporting SCPI protocol.

- Includes remote sensing compensation for accurate measurements.

- Additional testing capabilities: Battery discharge test, OCP test, and OPP test.
