UT667 Industrial Borescope
SKU:UT667-10M
Manufacturer:Uni-T
New
Image is for illustrative purposes only
The UNI-T UT667-10M Industrial Endoscope is designed for efficient and precise non-destructive testing (NDT) deep within equipment, eliminating the need for disassembly or operational interruption.
Key Features
- Large 4.3-inch IPS LCD Screen: Provides a clear 1280*720 resolution display for detailed inspections.
- 10-Meter Flexible Probe: Allows extensive reach for internal inspections.

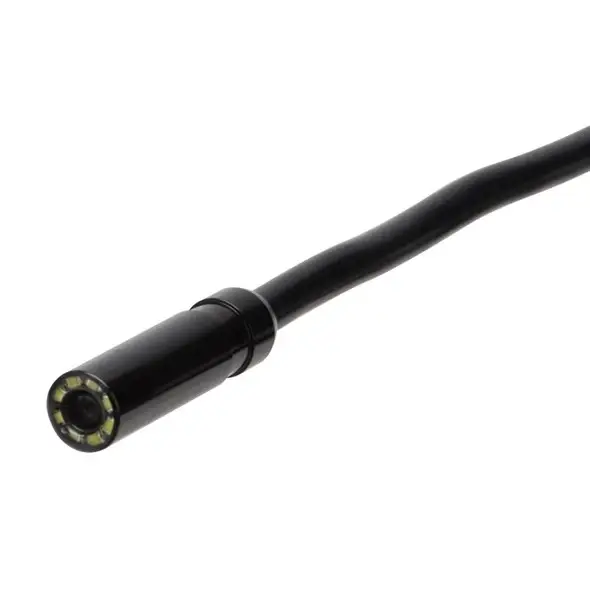

- 8mm Camera Lens: Features a 70° viewing angle for comprehensive visual assessment.
- 8 Adjustable LED Lamps: Ensures optimal illumination in dark inspection areas.
- IP67 Rated Camera: Offers robust protection against dust and water ingress.
- Long Battery Life: Powered by a 3.7V/2000mAh battery, providing up to 5 hours of continuous operation.
Applications
This industrial endoscope is ideal for non-destructive inspection across various critical sectors, including petrochemical, aerospace, automotive, shipbuilding, electrical, chemical, energy, gas, nuclear power, and civil engineering. It enables thorough internal examination of machinery and structures without disruption.
Key Features
- Large 4.3-inch IPS LCD Screen: Provides a clear 1280*720 resolution display for detailed inspections.
- 10-Meter Flexible Probe: Allows extensive reach for internal inspections.
- 8mm Camera Lens: Features a 70° viewing angle for comprehensive visual assessment.
- 8 Adjustable LED Lamps: Ensures optimal illumination in dark inspection areas.
- IP67 Rated Camera: Offers robust protection against dust and water ingress.
- Long Battery Life: Powered by a 3.7V/2000mAh battery, providing up to 5 hours of continuous operation.
Applications
This industrial endoscope is ideal for non-destructive inspection across various critical sectors, including petrochemical, aerospace, automotive, shipbuilding, electrical, chemical, energy, gas, nuclear power, and civil engineering. It enables thorough internal examination of machinery and structures without disruption.
Adjustable LED Lights: 4-Setting, 8 LEDs
Basic Functions: Screen rotation, Black-white images, Color conversion, Image zoom-in and zoom-out
Battery: 3.7V/2000mAh
Battery Life: 5h
Depth of Field (DOF): 20~100mm
Field of View (FOV): 70°
Hose Length: 10m

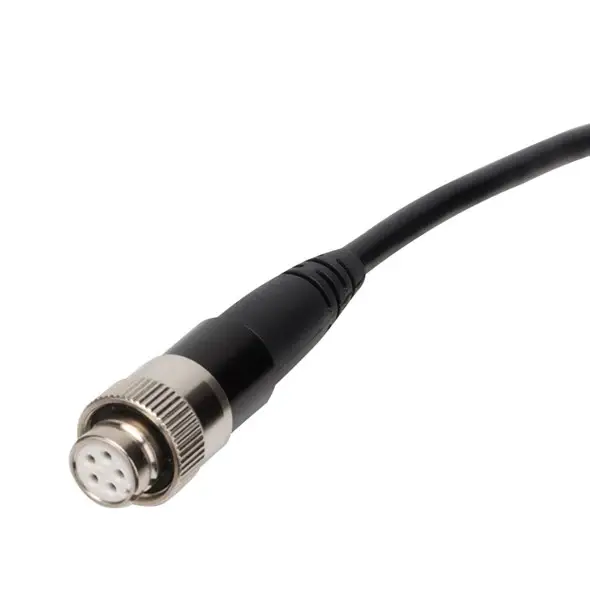

Hose Material: Replaceable hardwire with aviation plug
Humidity: <90%RH, No condensation
IP Rating: IP67
Lens Diameter: 8mm
Light Sensor Chip: CMOS
Pixels: 300K
Product Net Weight (hose not included): About 190g
Product Size (device, hose not included): 162x82x36mm
Screen Pixels: 1280*720
Screen Size: 4.3″ IPS LCD
System Languages: English
Working Conditions Lens Temperature: 0°C~80°C
Working Temperature: 0°C~45°C
Basic Functions: Screen rotation, Black-white images, Color conversion, Image zoom-in and zoom-out
Battery: 3.7V/2000mAh
Battery Life: 5h
Depth of Field (DOF): 20~100mm
Field of View (FOV): 70°
Hose Length: 10m
Hose Material: Replaceable hardwire with aviation plug
Humidity: <90%RH, No condensation
IP Rating: IP67
Lens Diameter: 8mm
Light Sensor Chip: CMOS
Pixels: 300K
Product Net Weight (hose not included): About 190g
Product Size (device, hose not included): 162x82x36mm
Screen Pixels: 1280*720
Screen Size: 4.3″ IPS LCD
System Languages: English
Working Conditions Lens Temperature: 0°C~80°C
Working Temperature: 0°C~45°C
-
