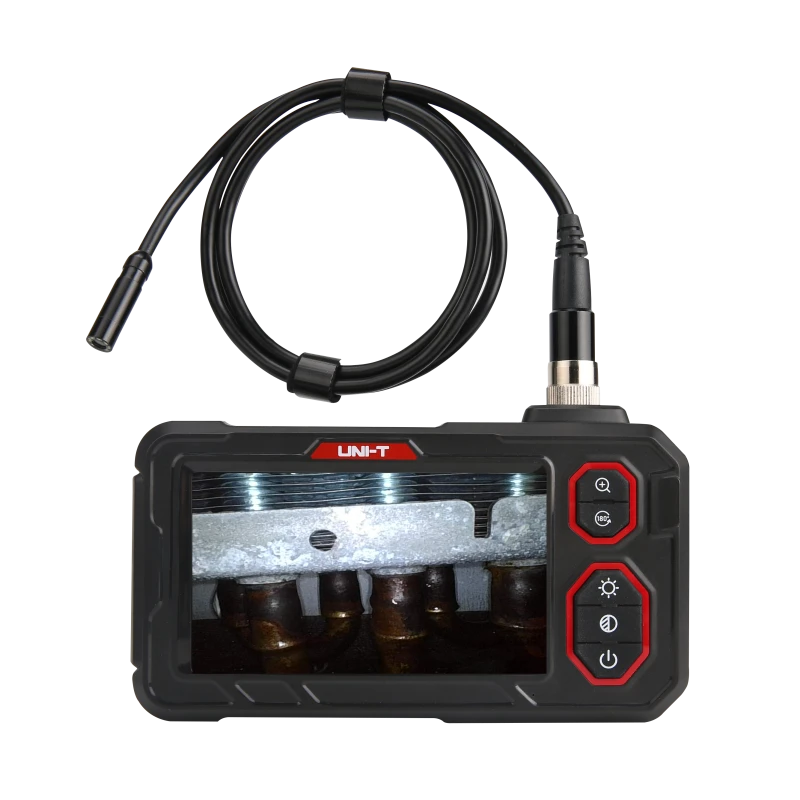

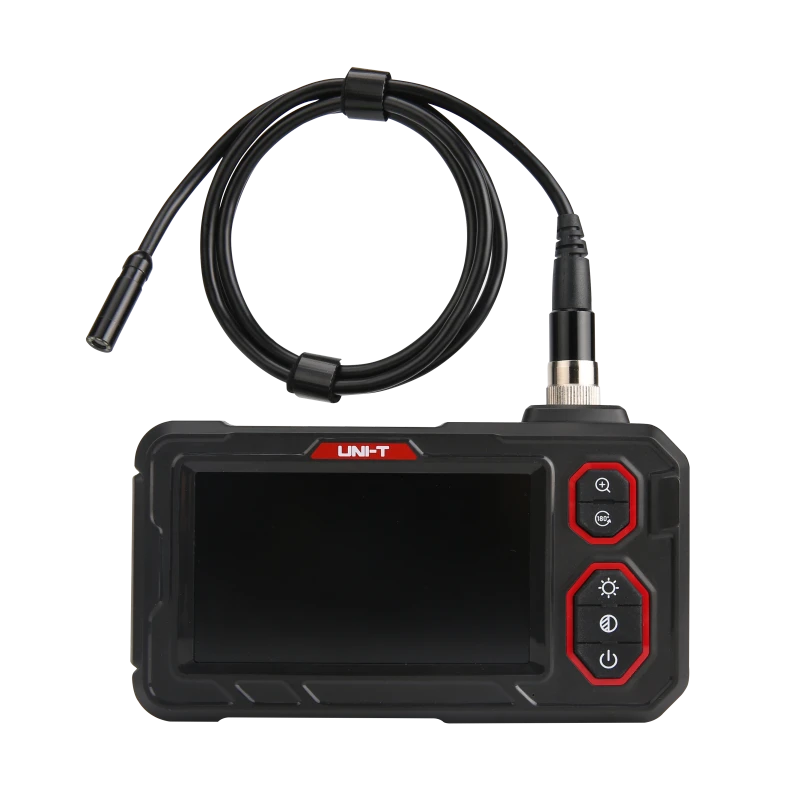

UT667 Industrial Borescope
SKU:UT667-5M
Manufacturer:Uni-T
New
Image is for illustrative purposes only
The UT667 series industrial endoscope with a large screen is specifically designed for non-destructive testing (NDT) in modern key industries. It enables effective and accurate inspections deep within equipment without the need for disassembly or work interruption.
Key Features
- Features a large screen for clear viewing.
- Designed for non-destructive testing (NDT) in key industries.
- Allows effective and accurate inspections deep within equipment.
- Enables inspection without disassembly or work interruption.
Applications
Widely used across various modern key industries, including:
- Petrochemical
- Aerospace
- Automotive
- Shipbuilding
- Electrical engineering
- Chemical
- Energy
- Gas
- Nuclear energy
- Civil engineering
- And others.
Adjustable LED Lights: 4-Setting, 8 LEDs
Basic Functions: Screen rotation, Black-white images, Color conversion, Image zoom-in and zoom-out
Battery: 3.7V/2000mAh
Battery Life: 5h
Depth of Field (DOF): 20~100mm
Field of View (FOV): 70°
Hose Length: 5m
Hose Material: Replaceable hardwire with aviation plug
Humidity: <90%RH, No condensation
IP Rating: IP67
Lens Diameter: 8mm
Light Sensor Chip: CMOS
Pixels: 300K
Screen Pixels: 1280*720
Screen Size: 4.3″IPS LCD
System Languages: English
Working Conditions Lens Temperature: 0°C~80°C
Working Temperature: 0°C~45°C
Basic Functions: Screen rotation, Black-white images, Color conversion, Image zoom-in and zoom-out
Battery: 3.7V/2000mAh
Battery Life: 5h
Depth of Field (DOF): 20~100mm
Field of View (FOV): 70°
Hose Length: 5m
Hose Material: Replaceable hardwire with aviation plug
Humidity: <90%RH, No condensation
IP Rating: IP67
Lens Diameter: 8mm
Light Sensor Chip: CMOS
Pixels: 300K
Screen Pixels: 1280*720
Screen Size: 4.3″IPS LCD
System Languages: English
Working Conditions Lens Temperature: 0°C~80°C
Working Temperature: 0°C~45°C
