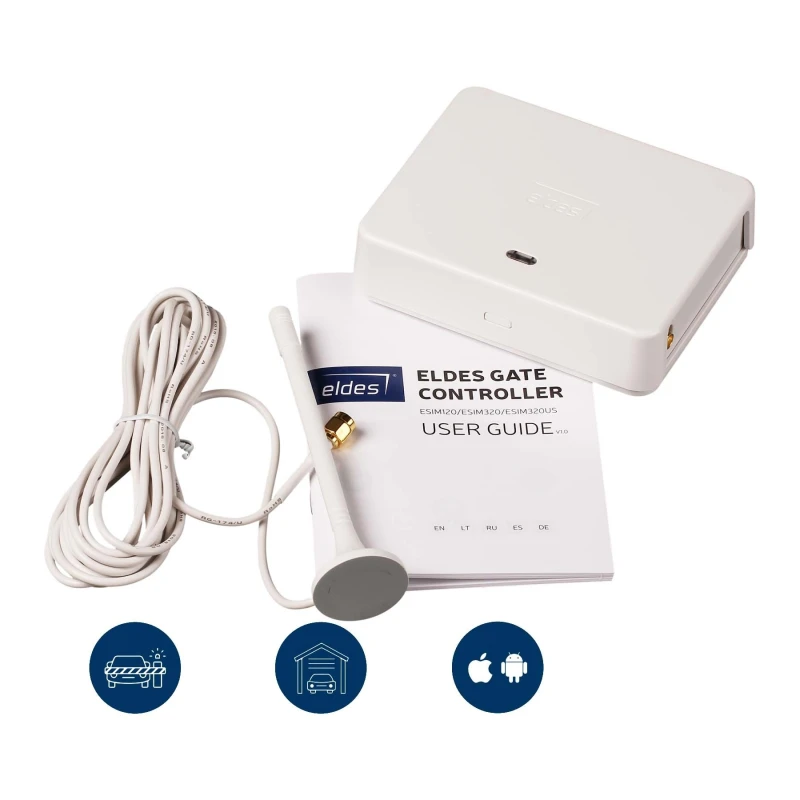

Image is for illustrative purposes only
Gate Controller ESIM320
- SKU: ESIM320-LITE
The product is no longer available. Product is displayed only for informational purposes.
ESIM320 is designed for simple parking lot control of residential houses or gate control of private houses. ESIM320 allows to create up to 2000 unique users, which is enough for huge object service with just one gate controller! Area’s entry and exit may authorized either by a single phone call or by an individual schedule, and restricted according to a number of phone calls or a specified deadline.
Administrators up to 5
Users database up to 2000
Power supply 10-24 V 50 Hz ~ 200 mA max / 10-24 V 200 mA max
Current consumption in idle state w/o external devices connected up to 50mA
GSM modem frequency ESIM320 3G/2G EU 900/1800/2100MHz
GSM modem frequency ESIM320US 3G USA 850/1900MHz
Number of inputs 3
Number of outputs 2
Output type Relay
Maximum commuting output values 24V 50Hz ~ 0,5A / 24V 1A
Event LOG up to 1000 events
Dimensions 87×107×29 mm
Operating temperature range -20…+55 °C
Humidity 0-90% RH @ 0… +40°C (0-90% RH @ +32… +104°F) (non-condensing)
