SKU:OKYN0528-11
Manufacturer:
Okystar
Image is for illustrative purposes only

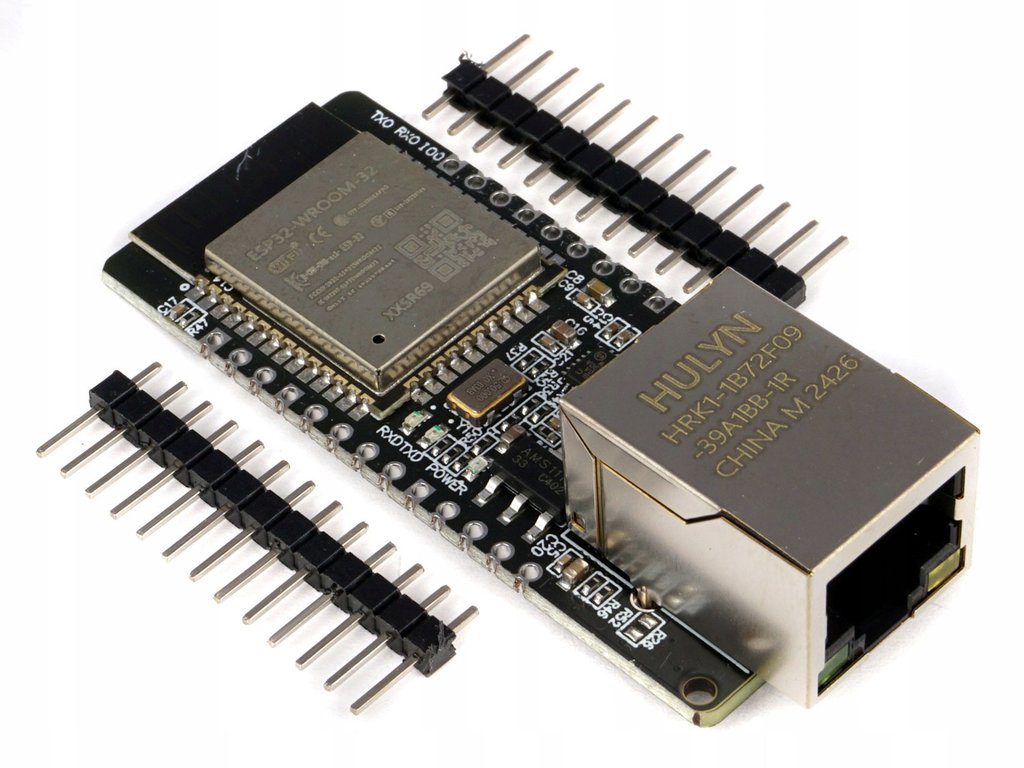

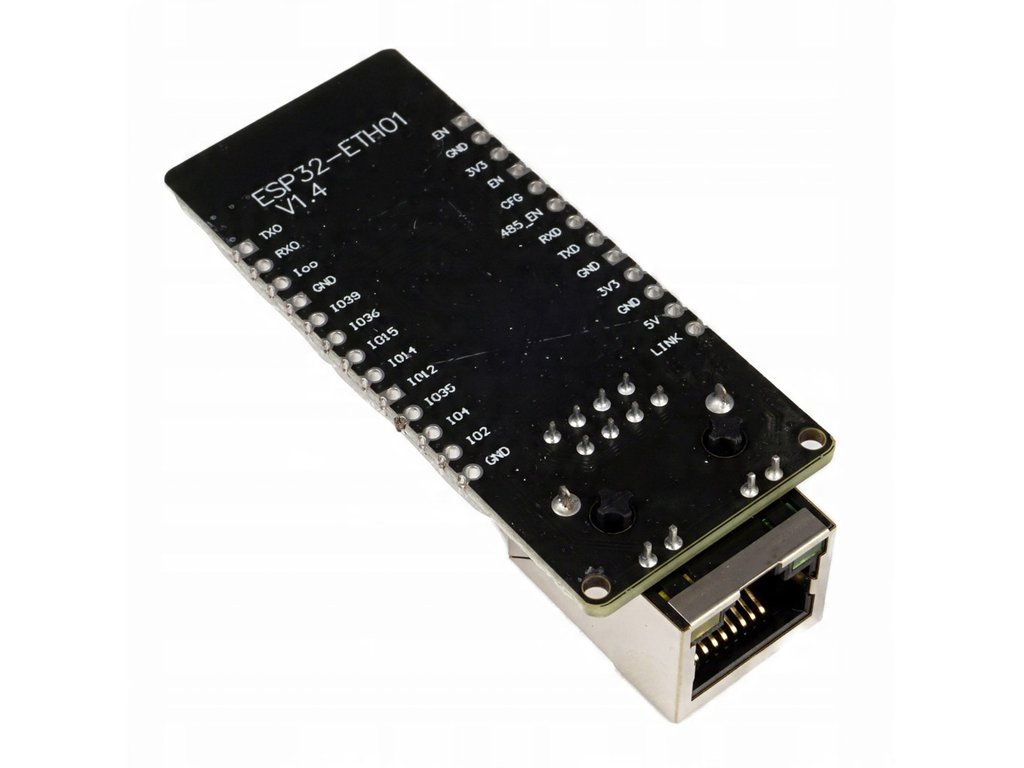

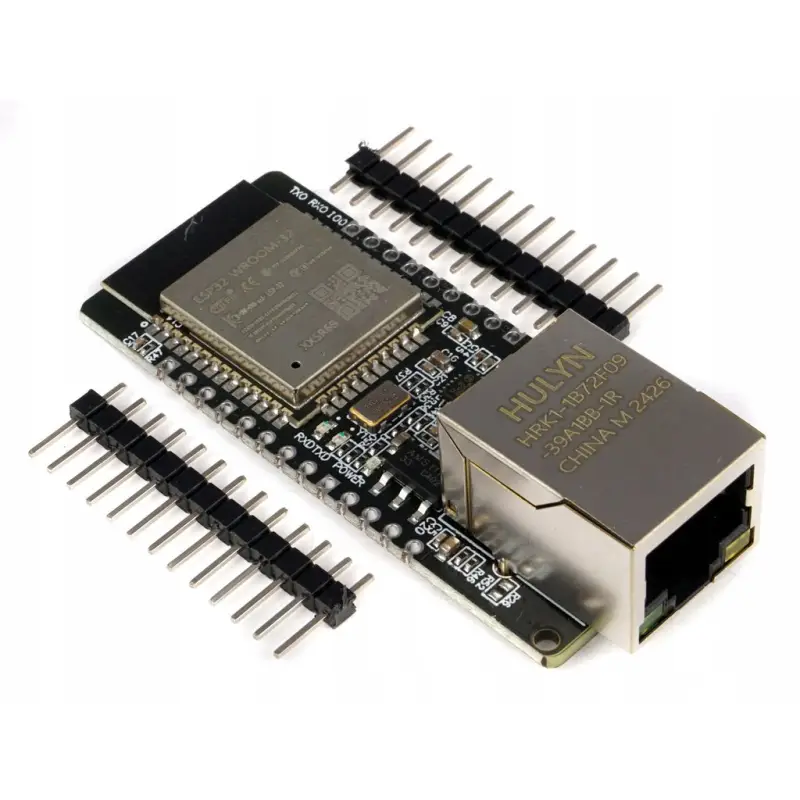

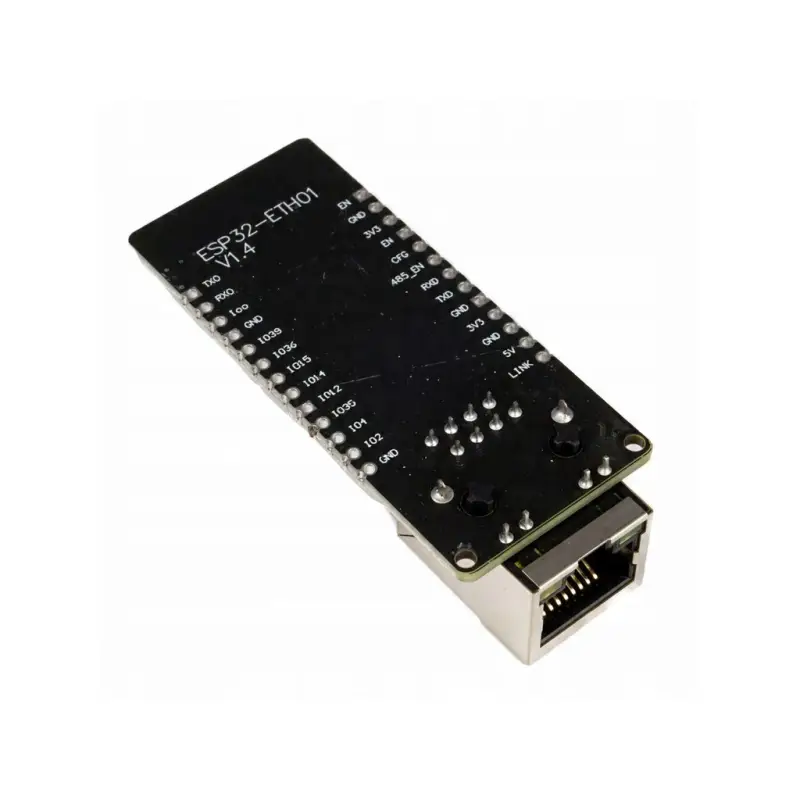

WT32-ETH01 is a high-performance module developed by Wireless-Tag Technology, combining Wi-Fi and Bluetooth wireless capabilities with a standard Ethernet interface. Built on the ESP32 chip, it provides a versatile solution for IoT applications requiring reliable and stable connectivity.
The module is designed for industrial automation, remote control systems, and smart device integration. Its compact dimensions and optimized pin layout make it suitable for custom embedded projects. It features a built-in RJ45 connector, and programming is conducted via the UART interface.
The module is designed for industrial automation, remote control systems, and smart device integration. Its compact dimensions and optimized pin layout make it suitable for custom embedded projects. It features a built-in RJ45 connector, and programming is conducted via the UART interface.
Model: WT32-ETH01
Chip: Espressif ESP32
Architecture: Dual-core Tensilica LX6, up to 240 MHz
Flash memory: 4MB, 16MB
RAM: 520 kB SRAM
Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz)
Bluetooth: BLE + BR/EDR (Classic Bluetooth)
Ethernet: 100M Ethernet PHY (LAN8720A), RMII interface, RJ45 connector
GPIO: Up to 16 pins (UART, I2C, SPI, ADC, PWM, etc.)
Power supply: 3.3V DC
Logical levels: 3.3V
Frequency: 40MHz
Programming: via UART (external USB-UART converter required)
Dimensions: 63 × 25 mm
Development support: ESP-IDF, Arduino, PlatformIO
Weight: 0.015 kg
Package contents: 1× WT32-ETH01 v1.4 WiFi Bluetooth Ethernet module
2x pin headers
Chip: Espressif ESP32
Architecture: Dual-core Tensilica LX6, up to 240 MHz
Flash memory: 4MB, 16MB
RAM: 520 kB SRAM
Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz)
Bluetooth: BLE + BR/EDR (Classic Bluetooth)
Ethernet: 100M Ethernet PHY (LAN8720A), RMII interface, RJ45 connector
GPIO: Up to 16 pins (UART, I2C, SPI, ADC, PWM, etc.)
Power supply: 3.3V DC
Logical levels: 3.3V
Frequency: 40MHz
Programming: via UART (external USB-UART converter required)
Dimensions: 63 × 25 mm
Development support: ESP-IDF, Arduino, PlatformIO
Weight: 0.015 kg
Package contents: 1× WT32-ETH01 v1.4 WiFi Bluetooth Ethernet module
2x pin headers
-
