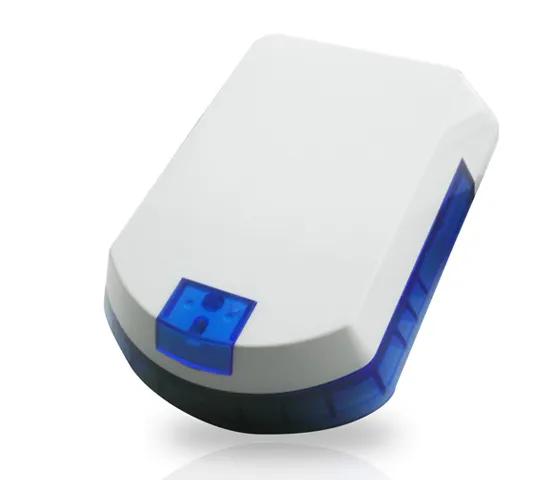

ELDES EWS2 Wireless outdoor siren for ELDES alarm systems
Product is not available
EWS2 is a wireless outdoor device (4xAA) with built-in siren speaker.
In case of alarm, the siren provides a sound for one minute.
The user needs to bind the siren to alarm system by sending a command via SMS or using ELDES Configuration Tool.
Upon successful EWS2 binding process, the system adds one wireless zone and one wireless PGM output.
The maximum wireless connection range is 150 meters (492.13ft) (in open areas).
Battery type 1,5V Alkaline AA type LR6 (IEC)/15A (ANSI/NEDA)
Number of batteries 4
Battery operation time ~18 months (might vary in different conditions)
Wireless transmitter-receiver frequency 868 MHz
Wireless communication range Up to 30 meters in premises; up to 150 meters in open areas
Built-in temperature sensor Yes
Range of operating temperatures -20…+55ºC
Compatible with alarm systems ELDES Wireless
Sound level 104dB
Dimensions 201×140×36mm
Compatible with ESIM364, ESIM384, Pitbull Alarm, Pitbull Alarm PRO
