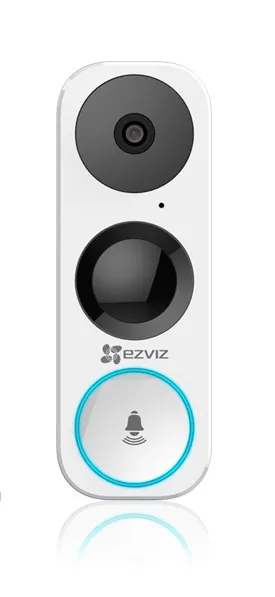

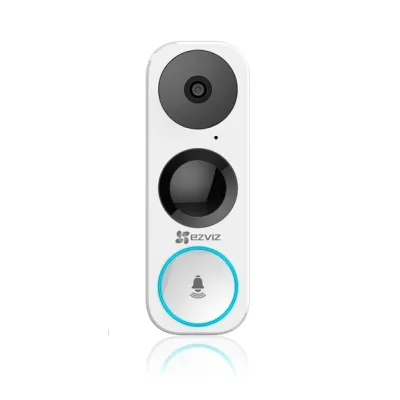

EZVIZ DB1 Video IP Doorbell 3MP ,IR, WIFI

  • SKU: CS-DB1
Põhjakeskuse Oomipood, Haljala tee 4, Rakvere 1
Kaubamajaka Oomipood, Papiniidu 8, Pärnu 1
Pargi keskuse Oomipood, Puru tee 1, Jõhvi 1

ZVIZ’s DB1 is a 3MP Wi-Fi Smart Doorbell that lets you see who’s there from head to toe and even talk to them when you are not home. Connect it to your smartphone to keep your home safe.

Model Parameters

Model CS-DB1-1B3WPFR


Processor High-Performance Embedded SOC Processor

Operation System Embedded RTOS


Sensor 1/2.8" 3-Megapixel starlight sensor

Lens 2.2mm@F2.4

Field of View Vertical FOV 180°, Horizontal FOV 105°

Night Vision Up to 5m/16ft


Compression Standard Smart H.264

Max. Resolution 2048*1536, QXGA

Frame Rate 60Hz @ 30fps, Adaptive frame rate of network



BLC Support


Audio Input Built-in omnidirectional microphone

Audio Output Built-in loud speaker

Audio Quality Noise suppression and echo cancellation

Network and Storage

Wireless Built-in 2.4GHz & 5GHz Wi-Fi

Network Configuration AP Pairing

Minimum Network Requirements 2Mbps

Local Storage Support microSD card (Up to 128GB)

Cloud Storage EZVIZ Cloud Storage


Sensor PIR Human Detection Sensor

Alarm Customized Alert Area

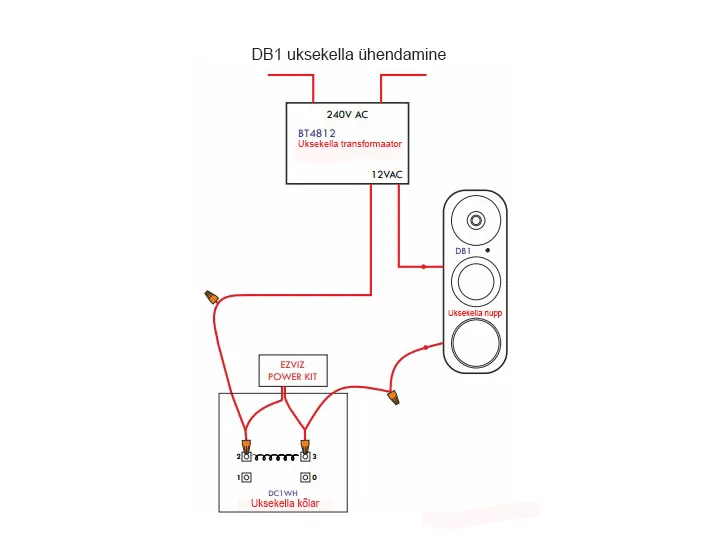

Power Supply 8VAC ~ 24VAC

Power Consumption Max. 5W

Weatherproof IP65

Product Dimensions  130mm x 46mm x 21mm

Packaging Dimensions  250mm x 192mm x 75.5mm

Weight 0.28lb (125g)

Operating Conditions -30ºC ~ 60ºC, Humidity 95% or less (no condensation)

Ezviz DB1 kasutusjuhend EE18.18MBDownload
