EZVIZ H9C 5+5MP outdoor rotating camera, 2 lenses, audio
SKU:CS-H9C(5MP)
Manufacturer:EZVIZ
TOP
Image is for illustrative purposes only

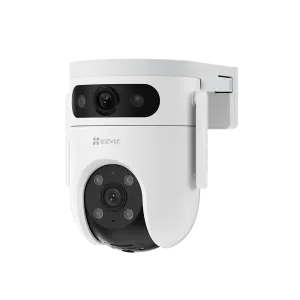

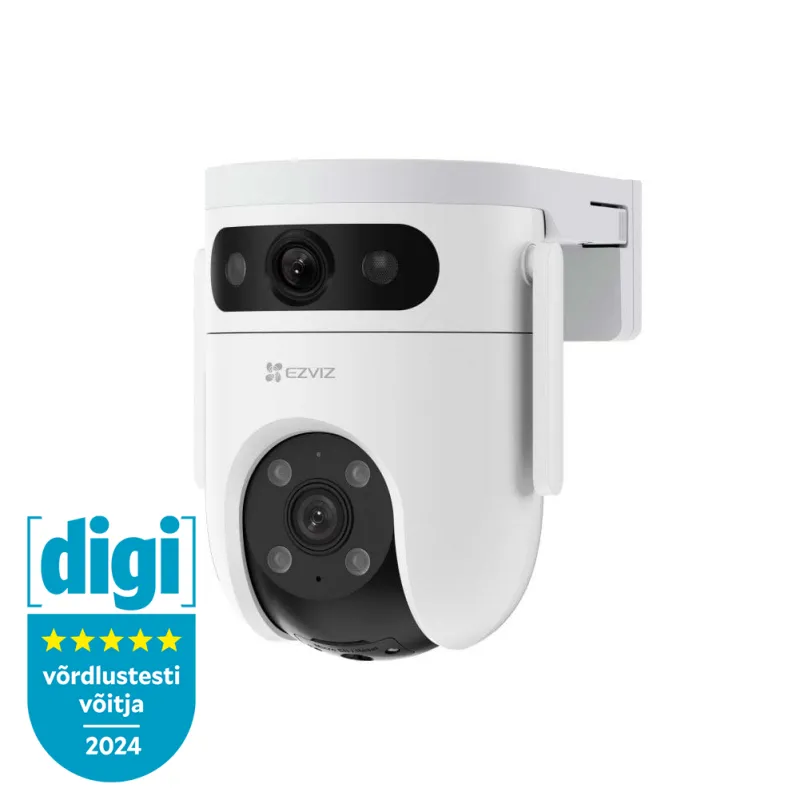

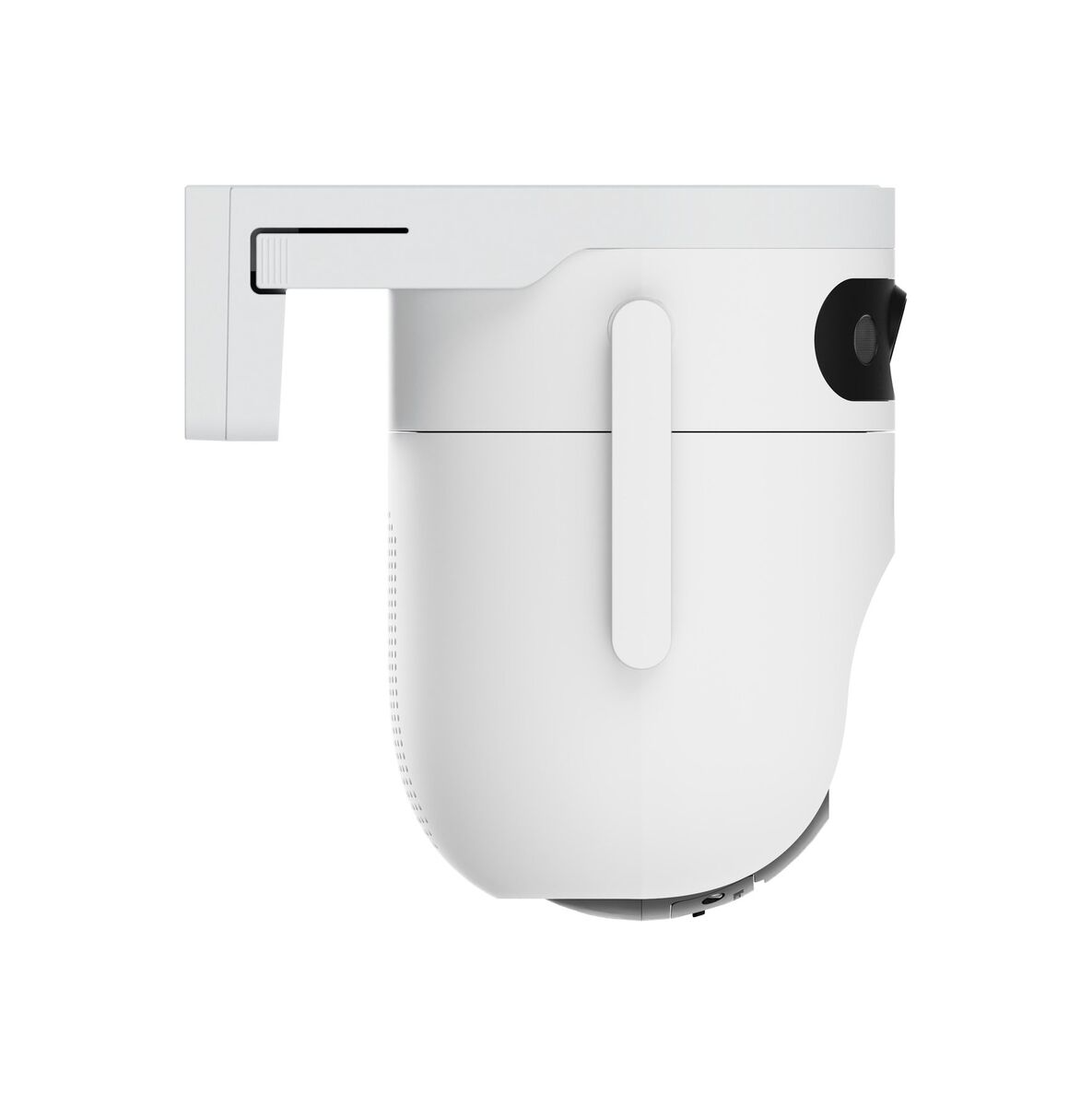

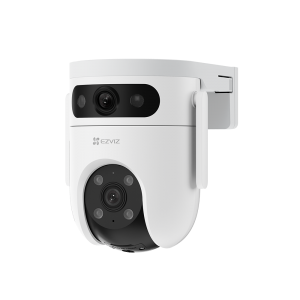

EZVIZ H9c is a dual-lens Wi-Fi camera that offers high-tech security and automation.
The camera is equipped with two lenses that allow for a wider viewing angle and more accurate tracking. The upper lens offers manual 240° horizontal and 15° tilt adjustment, the lower lens offers a motorized 360° panoramic view.
Key Features:
• Dual lens system: Accurate and wide angle of view
• AI-based detection of people and vehicles: Automatic tracking and alerts
• 360° Panoramic coverage: Motorized pan and tilt function
• Night color vision: Up to 40 meters
• Two-way sound and active protection: Built-in siren and flashing lights
• Weatherproof design: Suitable for outdoor conditions
• Versatile storage options: MicroSD card support up to 512GB and EZVIZ CloudPlay
Technical specifications:
• Camera: 1/2.7" CMOS sensor
• Resolution: 2304 × 1296
• Pan/Tilt: 350° pan, 80° tilt
• Software features: Motion detection, smart alarms, customizable monitoring areas
• Network interfaces: Wi-Fi and Ethernet (RJ45)
• Power supply: DC 12V/1.5A
• Working conditions: -30°C to 50°C
The camera is equipped with two lenses that allow for a wider viewing angle and more accurate tracking. The upper lens offers manual 240° horizontal and 15° tilt adjustment, the lower lens offers a motorized 360° panoramic view.
Key Features:
• Dual lens system: Accurate and wide angle of view
• AI-based detection of people and vehicles: Automatic tracking and alerts
• 360° Panoramic coverage: Motorized pan and tilt function
• Night color vision: Up to 40 meters
• Two-way sound and active protection: Built-in siren and flashing lights

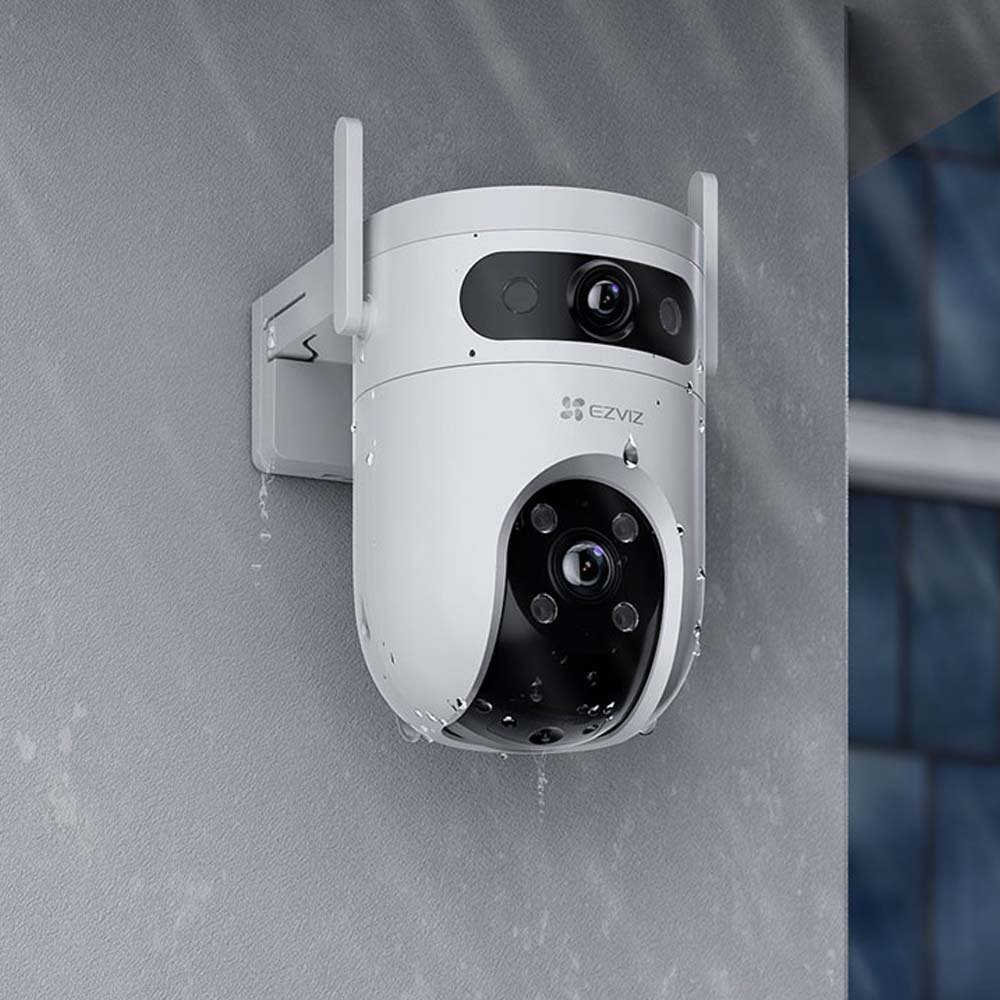

• Weatherproof design: Suitable for outdoor conditions
• Versatile storage options: MicroSD card support up to 512GB and EZVIZ CloudPlay
Technical specifications:
• Camera: 1/2.7" CMOS sensor
• Resolution: 2304 × 1296
• Pan/Tilt: 350° pan, 80° tilt
• Software features: Motion detection, smart alarms, customizable monitoring areas
• Network interfaces: Wi-Fi and Ethernet (RJ45)
• Power supply: DC 12V/1.5A
• Working conditions: -30°C to 50°C
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°
Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle: Pan: 350°, Tilt: 80°
Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
Black & White Night: 30m / 98ft
Max Resolution: 2304 × 1296
Frame Rate: Max:15fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security: WPA-PSK/WPA2-PSK
Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
Preset Locations: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Local Storage: Supports microSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage
Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F )
Humidity: 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V/1.5A
Power Consumption: MAX. 12W

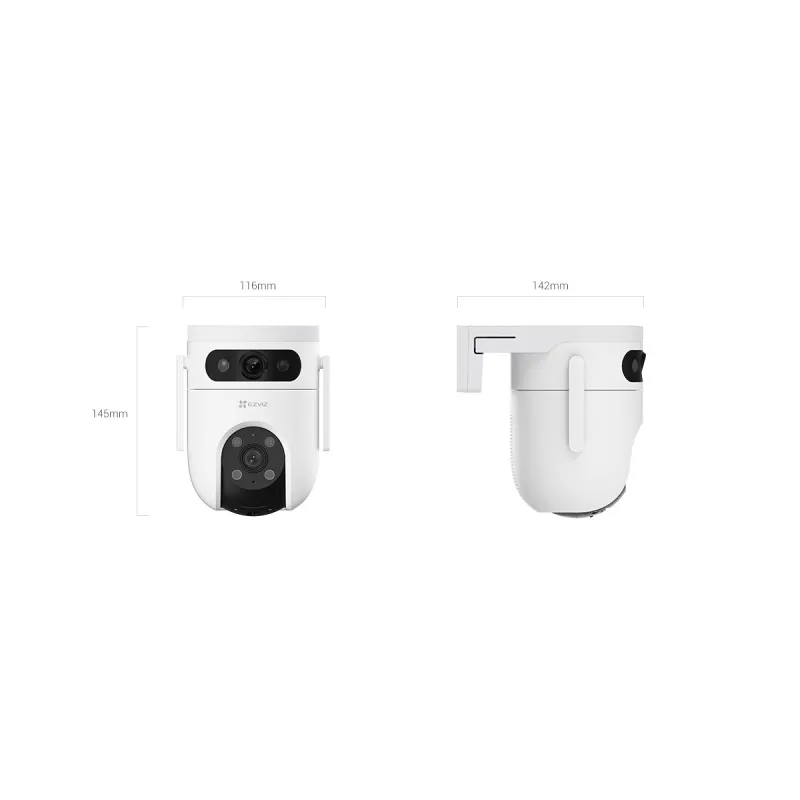

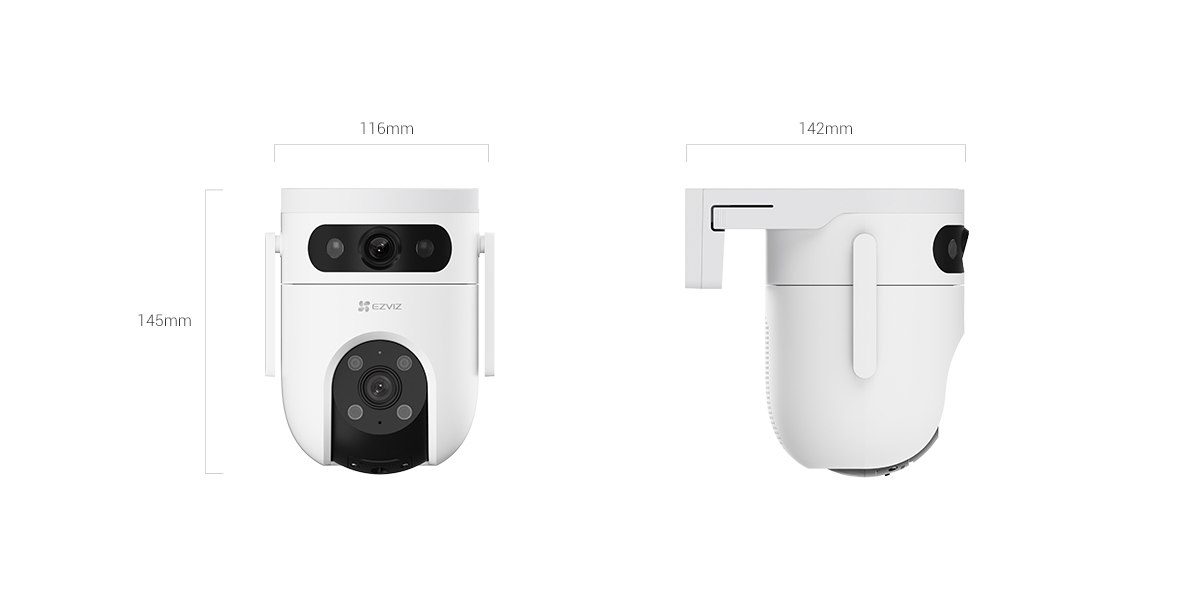

Dimensions: 145 × 116 × 142mm
In the box: H9c Camera, Drill Template, Screw Kit, Waterproof Kit, Power Adapter
Shutter Speed: Self-adaptive shutter
Lens: Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56°
Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle: Pan: 350°, Tilt: 80°
Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
Black & White Night: 30m / 98ft
Max Resolution: 2304 × 1296
Frame Rate: Max:15fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security: WPA-PSK/WPA2-PSK
Smart Alarm: AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
Preset Locations: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Local Storage: Supports microSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage
Operating Conditions: -30°C to 50°C ( -22 °F to 122 °F )
Humidity: 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V/1.5A
Power Consumption: MAX. 12W
Dimensions: 145 × 116 × 142mm
In the box: H9c Camera, Drill Template, Screw Kit, Waterproof Kit, Power Adapter
-
