HB90 Dual Kit – Dual-Lens All-Day Recording Wi-Fi Camera + Solar Panel 8W
SKU:CS-HB90/SP
Manufacturer:EZVIZ
New
Image is for illustrative purposes only

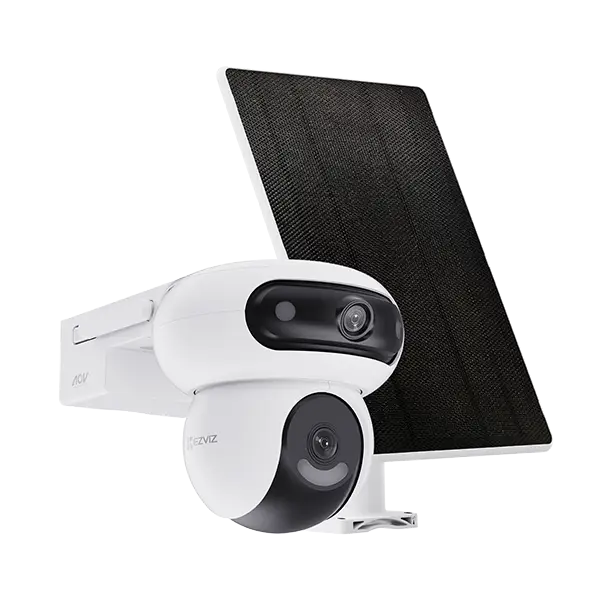

EZVIZ HB8 2K Dual-Lens Surveillance Kit with 8W Solar Panel – 24/7 Security Without Cables.
The EZVIZ HB8 2K Dual is a smart dual-lens Wi-Fi security camera that provides uninterrupted 360° coverage both day and night. The included 8W solar panel ensures continuous charging, allowing the camera to operate wirelessly and efficiently even in remote locations.
Key Features- Features two 2K+ resolution lenses for wide-angle and detailed views.
- Equipped with three motors for smooth pan and tilt rotation, minimizing blind spots.
- Supports color night vision up to 35 meters.
- Includes AI-based human and vehicle shape detection.
- Provides automatic tracking of detected events.
- Allows setting customizable alert zones.
- Enables two-way audio communication.
- Offers active defense with a built-in siren and strobe light.
- Supports Wi-Fi 6 (2.4 GHz).
- Rated IP65 for reliable operation in various weather conditions.
- Supports local storage on a microSD card up to 512GB and EZVIZ CloudPlay cloud storage.
- Managed and monitored via the EZVIZ app.
Power and Installation
The kit includes a high-efficiency 8W solar panel and a 10400 mAh rechargeable lithium battery, providing extended autonomous operation and flexible installation options without relying solely on mains power.
Smart Functions
Benefit from intelligent features like AI-powered detection, auto-tracking, and customizable alert zones to focus on important events. Enhance security with active defense capabilities including a siren and strobe light.
Audio Bit Rate: Self-Adaptive
Auto Tracking: Supports
Battery Capacity: 10,400 mAh
Bluetooth: Supports
Channel Bandwidth: Supports 20 MHz
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
Customized Alert Area: Supports
DNR: 3D DNR
Day & Night: IR-cut filter with auto switch

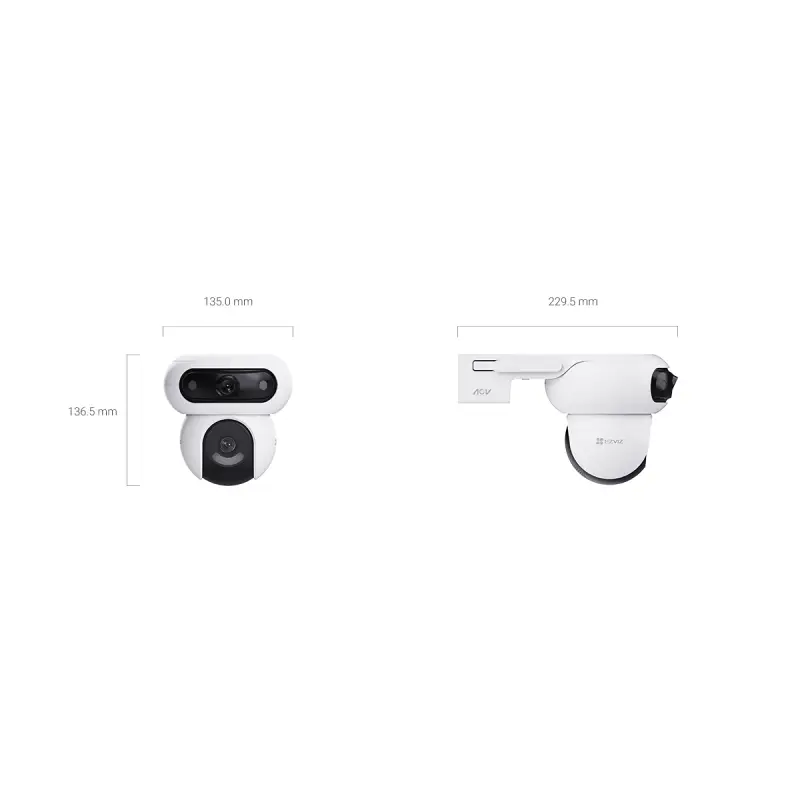

Dimensions: HB90 Dual: 135 × 136.5 × 229.5 mm; Solar Panel 8W: 267.3 × 186.5 × 17.5 mm
Frame Rate: Max. 15fps; Self-adaptive during network transmission
Frequency Range: 2.4 GHz ~ 2.4835 GHz
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
IP Grade: IP65
Image Sensor: 1/3” 4-Megapixel Progressive Scan CMOS Sensor
Lens: Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°. Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
Local Storage: Supports microSD card (max. 512 GB)
Max. Bitrate: 2 Mbps (Total)
Max. Resolution: 2K+ (2560 × 1440)
Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR
Minimum Network Requirement: 4 Mbps
Model: CS-HB90/SP-R100(4MP+4MP)
Night Vision Distance: 35 m
Operating Conditions: -20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing)
PT Angle: Top Lens: Pan: 220°, Manual Tilt: 10°. Bottom Lens: Pan: 324°, Tilt: 90°
Power Supply: DC 5 V / 2 A (Adapter needs to be purchased separately)
Security: WPA-PSK / WPA2-PSK, WPA3-Personal
Shutter Speed: Self-adaptive shutter
Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection
Solar Panel: 8W High-Efficiency Solar Panel Included
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Two-Way Talk: Supports
Video Bit Rate: Quad HD; HD; Standard; Adaptive Bit Rate
Video Compression: H.265 / H.264
Weight: HB90 Dual: 890 g; Solar Panel 8W: 428 g
Wi-Fi Pairing: AP pairing
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11ax
Auto Tracking: Supports
Battery Capacity: 10,400 mAh
Bluetooth: Supports
Channel Bandwidth: Supports 20 MHz
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
Customized Alert Area: Supports
DNR: 3D DNR
Day & Night: IR-cut filter with auto switch
Dimensions: HB90 Dual: 135 × 136.5 × 229.5 mm; Solar Panel 8W: 267.3 × 186.5 × 17.5 mm
Frame Rate: Max. 15fps; Self-adaptive during network transmission
Frequency Range: 2.4 GHz ~ 2.4835 GHz
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
IP Grade: IP65
Image Sensor: 1/3” 4-Megapixel Progressive Scan CMOS Sensor
Lens: Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54°. Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
Local Storage: Supports microSD card (max. 512 GB)
Max. Bitrate: 2 Mbps (Total)
Max. Resolution: 2K+ (2560 × 1440)
Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR
Minimum Network Requirement: 4 Mbps
Model: CS-HB90/SP-R100(4MP+4MP)
Night Vision Distance: 35 m
Operating Conditions: -20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing)
PT Angle: Top Lens: Pan: 220°, Manual Tilt: 10°. Bottom Lens: Pan: 324°, Tilt: 90°
Power Supply: DC 5 V / 2 A (Adapter needs to be purchased separately)
Security: WPA-PSK / WPA2-PSK, WPA3-Personal
Shutter Speed: Self-adaptive shutter
Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection
Solar Panel: 8W High-Efficiency Solar Panel Included
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Two-Way Talk: Supports
Video Bit Rate: Quad HD; HD; Standard; Adaptive Bit Rate
Video Compression: H.265 / H.264
Weight: HB90 Dual: 890 g; Solar Panel 8W: 428 g
Wi-Fi Pairing: AP pairing
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11ax
