EZVIZ HB90x Dual-Lens All-Day Recording 4G Camera + 8W Solar Panel

SKU:CS-HB90X/SP
Manufacturer:EZVIZ

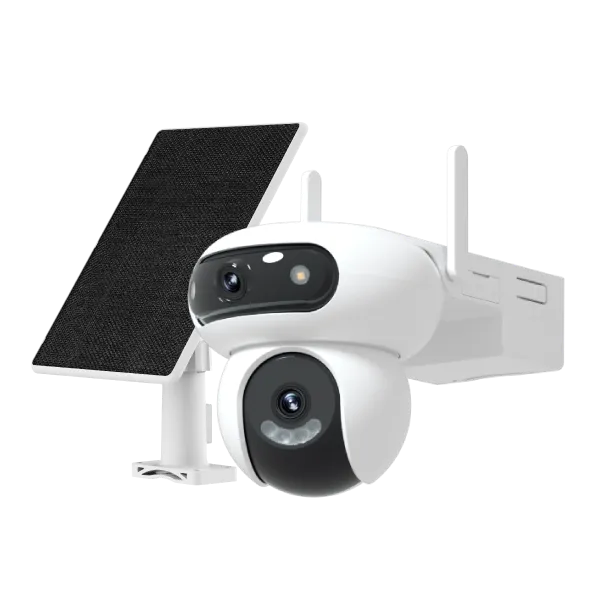

EZVIZ HB90x Dual-Lens All-Day Recording 4G Camera + 8W Solar Panel
Image is for illustrative purposes only
The EZVIZ HB90x Dual 4G Kit is an advanced, self-sustaining security solution that combines a 2K⁺ dual-lens 4G camera with a high-efficiency 8W solar panel, ensuring reliable and continuous surveillance in remote or off-grid locations.

Key Features
- Dual 2K⁺ Lens System: Features two independent 2K⁺ lenses powered by triple motors for comprehensive pan and tilt functionality, adjustable via the EZVIZ app.
- Co-Action Tracking: A unique system where the top fixed lens detects motion, prompting the bottom motorized lens to automatically pan and track the moving subject, ensuring complete coverage.
- Self-Sustaining Power: Equipped with a large 10,400 mAh battery and the included 8W solar panel for continuous, green energy operation.
- Advanced Image Processing (AI-ISP): Delivers superior image quality by reducing motion blur by 70% and enhancing the signal-to-noise ratio by 300% for true-to-life colors. Includes a 'Balanced Image Exposure' mode for better night vision.
- Proactive Security: Incorporates an Active Defense system that triggers a loud siren and flashes two dazzling spotlights upon detection. Supports high-quality two-way audio and pre-recorded voice messages.
- Storage and Compression: Supports local storage via microSD card (up to 512 GB) or an EZVIZ CloudPlay subscription. Utilizes H.265 video compression, reducing storage space and bandwidth usage by 50% compared to H.264.
- Durability and Integration: Built with a robust, IP65 weatherproof design. Seamlessly integrates with voice assistants, including Alexa and Google Assistant.

Applications
Designed for locations lacking wired power or Wi-Fi connectivity, the integrated 4G connectivity and solar power make this system ideal for monitoring remote properties such as farms, construction sites, forest cabins, or large villa backyards.
Model: CS-HB90x/SP-R100(4MP+4MP W4GA)

Camera

Image Sensor: 1/2.8” 4-Megapixel Progressive Scan CMOS Sensor

Lens (Top): 2.8mm @ F1.2, Field of view : Diagonal 122°, Horizontal 105°, Vertical 58°

Lens (Bottom): 6mm @ F1.2, Field of view : Diagonal 65°, Horizontal 56°, Vertical 30°

PT Angle (Top Lens): Pan: 220°, Tilt: 10°

PT Angle (Bottom Lens): Pan: 324°, Tilt: 90°

Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Night Vision Distance: 35 m (When two lenses point in the same direction)

Video & Audio

Max Resolution: 2K+ (2560 × 1440)

Frame Rate: Max. 15fps; Self-adaptive during network transmission

Video Compression: H.265 / H.264

Max. Bitrate: 2 Mbps (Total)

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11ax

Frequency Range (Wi-Fi): 2.4 GHz ~ 2.4835 GHz

Bluetooth: Supports

LTE Frequency Bands: IN LTE-FDD: B1/B3/B5/B8, IN LTE-TDD: B34/B38/B39/B40/B41, EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

Function

Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Shape Detection

Auto Tracking: Supports

Two-Way Talk: Supports

Storage

Local Storage Max. Capacity: 512 GB (microSD card)

Cloud Storage: EZVIZ CloudPlay storage (subscription required)

General

Operating Conditions (Camera): -20°C to 50°C (-4°F to 122 °F), Humidity 95% or less (non-condensing)

Battery Capacity: 10,400 mAh

IP Grade (Camera): IP65

Power Consumption: Max. 10 W

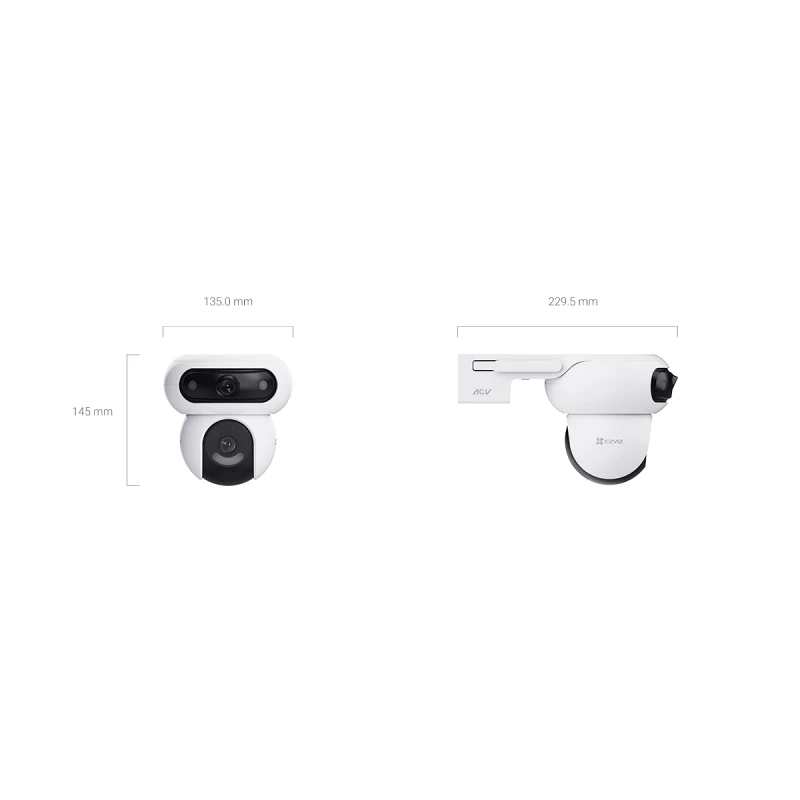

Dimensions (Camera): 135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 inch)

Net Weight (Camera): 862 g

Solar Panel Specifications

Model (Solar Panel): CS-PSP8-R100-3M

Max. Power: 8 W ± 5%

Operating Conditions (Solar Panel): -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)

IP Grade (Solar Panel): IP65

Power Cable Length: 3 meter

Product Dimensions (Solar Panel): 267.3 × 186.5 × 17.5 mm

Weight (Solar Panel): 428 g
CS-HB90X/SP Datasheet EN5.46MB
Download
CS-HB90X/SP Manual EE20.69MB
Download
CS-HB90X/SP Manual EN20.69MB
Download
CS-HB90X/SP Manual RU20.54MB
Download
