EZVIZ Solar Charging Panel 8W
SKU:CS-PSP8
Manufacturer:EZVIZ
-20%
New
Image is for illustrative purposes only

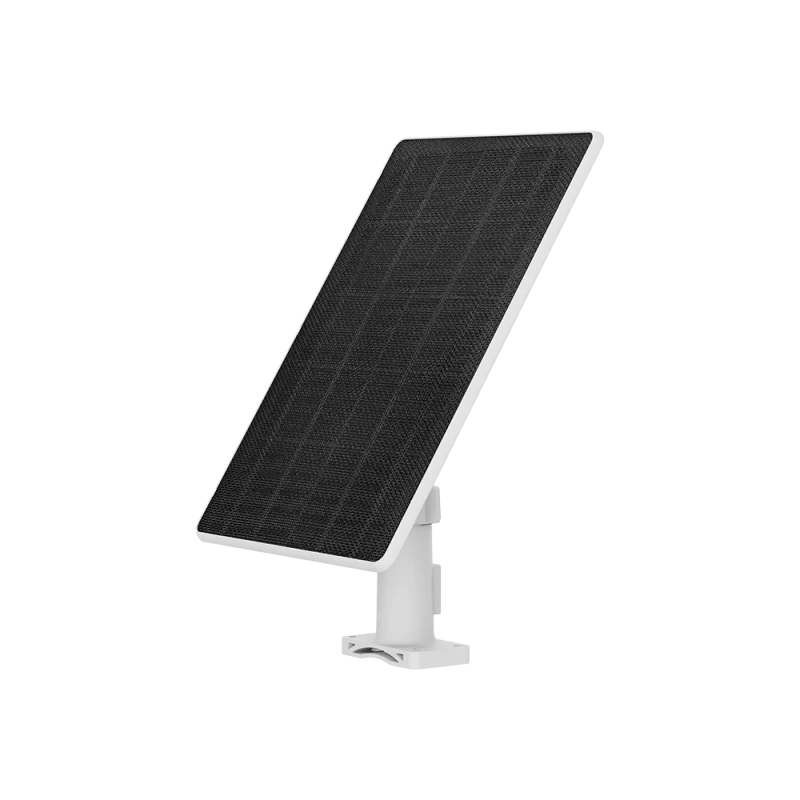

The EZVIZ PSP8 8W Solar Charging Panel provides a continuous, eco-friendly power supply for compatible EZVIZ outdoor battery cameras, eliminating the need for manual recharging. It utilizes high-efficiency monocrystalline solar cells to ensure reliable, long-term camera autonomy.
Key Features
-
8W Power Output: Delivers a maximum output of 8W (5.4 V DC / 1.48 A) with up to 23.5% conversion efficiency.
-
Weatherproof Construction: Built with a durable frame, stainless steel screws, and an **IP65** rating to withstand rain, dust, snow, and sun.
-
Flexible Installation: Includes a 3-meter power cable and a 360° rotatable mounting bracket for optimal sun exposure.
-
Rapid Charging Capability: Can provide sufficient power for a full day's camera operation with minimal direct sunlight exposure (e.g., 11 minutes under standard test conditions for the HB8 Pro camera).
Compatibility
This panel is specifically designed for EZVIZ outdoor battery cameras equipped with a **Type-C charging port**.
Key Features
-
8W Power Output: Delivers a maximum output of 8W (5.4 V DC / 1.48 A) with up to 23.5% conversion efficiency.
-
Weatherproof Construction: Built with a durable frame, stainless steel screws, and an **IP65** rating to withstand rain, dust, snow, and sun.
-
Flexible Installation: Includes a 3-meter power cable and a 360° rotatable mounting bracket for optimal sun exposure.
-
Rapid Charging Capability: Can provide sufficient power for a full day's camera operation with minimal direct sunlight exposure (e.g., 11 minutes under standard test conditions for the HB8 Pro camera).
Compatibility
This panel is specifically designed for EZVIZ outdoor battery cameras equipped with a **Type-C charging port**.
General
Model: CS-PSP8-R100-3M
Solar Cell Type: Monocrystalline solar cells
Interface: Type-C
Power Cable Length: 3 meters
Electrical
Max. Power: 8 W ± 5%
Power Voltage: 5.4 V ± 5%
Power Current: 1.48 A ± 5%
Open Circuit Voltage: 6.8 V ± 5%
Short Circuit Current: 1.64 A ± 5%
Solar Cell Efficiency: 23.5%
Physical

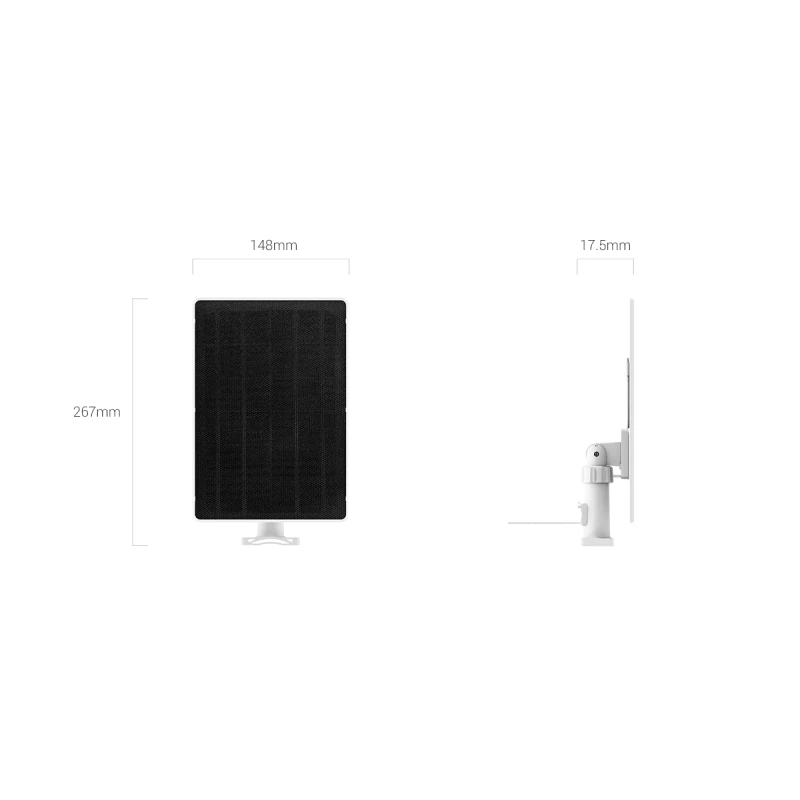

Product Dimensions: 267 × 148 × 17.5 mm (10.51 × 5.83 × 0.69 inch)
Weight: 907 g (32 oz)
Environmental
IP Grade: IP65
Operation Temperature: -20ºC ~ 60ºC (-4ºF ~ 140ºF), humidity 90% or less (non-condensing)
Model: CS-PSP8-R100-3M
Solar Cell Type: Monocrystalline solar cells
Interface: Type-C
Power Cable Length: 3 meters
Electrical
Max. Power: 8 W ± 5%
Power Voltage: 5.4 V ± 5%
Power Current: 1.48 A ± 5%
Open Circuit Voltage: 6.8 V ± 5%
Short Circuit Current: 1.64 A ± 5%
Solar Cell Efficiency: 23.5%
Physical
Product Dimensions: 267 × 148 × 17.5 mm (10.51 × 5.83 × 0.69 inch)
Weight: 907 g (32 oz)
Environmental
IP Grade: IP65
Operation Temperature: -20ºC ~ 60ºC (-4ºF ~ 140ºF), humidity 90% or less (non-condensing)
-
