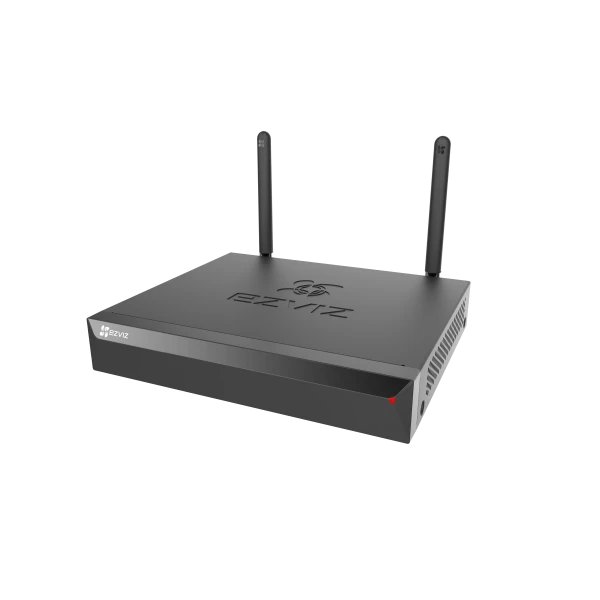

EZVIZ X5S NVR 4 channels, 3K*4, HDD, HDMI&VGA, 1x LAN port
SKU:CS-X5S(4W)
Manufacturer:EZVIZ
Image is for illustrative purposes only
The EZVIZ X5S is a 4-channel NVR (Network Video Recorder) that supports 3K resolution for clear and detailed video recording. It allows you to connect up to 4 EZVIZ Wi-Fi cameras and manage them through the EZVIZ app.
It features HDMI and VGA outputs for connecting to a monitor, and supports one HDD for local storage. The X5S also offers wireless connectivity for easy camera setup and management.
It features HDMI and VGA outputs for connecting to a monitor, and supports one HDD for local storage. The X5S also offers wireless connectivity for easy camera setup and management.
• IPC Access Capability
• Wireless/Wired IPC Access Capability: 3K ×4 / 3K ×8
• Wired IPC Access Capability: 3K ×4 (X5S-4W) / 3K ×8 (X5S-8W)
• Network Parameters
• Antenna Number: 2
• Max Wireless Range: 100m
• Radio Frequency: 2.4G
• Ethernet Port: One 10/100M adaptable Ethernet interface
• Required Access Bandwidth: 50 Mbps/100 Mbps
• Video Output
• VGA: 1 channel (identical to HDMI output), resolution up to 1920 × 1080 / 60Hz
• HDMI: 1 channel, resolution up to 2592 × 1944 / 30Hz
• Audio/Video Codec
• Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
• Video Encoding: H.265, H.264
• Decode Playback: Supports 4 × 3K / Supports 8 × 3K
• Video Recording Management
• Recording Modes: Manual recording, motion detection recording, scheduled recording, event-triggered recording
• Backup Modes: Hard disk backup, internet application backup
• Playback Modes: Instant playback, normal playback, event playback, tag playback, log event playback
• Open Protocol
• Supported Open Protocols: HIKVISION, ONVIF (V.2.5)
• HDD
• Interface Type: One built-in SATA port
• Capacity: Supports 1TB to 8TB 3.5-inch HDD
• External Interface
• Audio Input/Output: Not supported
• Hardware Reset: Supported
• USB2.0 Interface: 2
• Dimensions
• Product Dimensions: 235 × 270 × 44.5 mm
• Packaging Dimensions: 387 × 362 × 75 mm
• Power Supply
• DC: 12V / 1.5A
• Power Consumption
• Standby Status: ≤8W
• Weight
• Net Weight: 932 g
• In the Box
• X5S NVR ×1
• Power Adapter ×1
• Mouse ×1
• Screw Kit ×1
• Regulatory Information ×2
• Quick Start Guide ×1
• Certifications
• CE / UL / RoHS / WEEE / REACH
• Wireless/Wired IPC Access Capability: 3K ×4 / 3K ×8
• Wired IPC Access Capability: 3K ×4 (X5S-4W) / 3K ×8 (X5S-8W)
• Network Parameters
• Antenna Number: 2
• Max Wireless Range: 100m
• Radio Frequency: 2.4G
• Ethernet Port: One 10/100M adaptable Ethernet interface
• Required Access Bandwidth: 50 Mbps/100 Mbps
• Video Output
• VGA: 1 channel (identical to HDMI output), resolution up to 1920 × 1080 / 60Hz
• HDMI: 1 channel, resolution up to 2592 × 1944 / 30Hz
• Audio/Video Codec
• Recording Resolution: 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
• Video Encoding: H.265, H.264
• Decode Playback: Supports 4 × 3K / Supports 8 × 3K
• Video Recording Management
• Recording Modes: Manual recording, motion detection recording, scheduled recording, event-triggered recording
• Backup Modes: Hard disk backup, internet application backup
• Playback Modes: Instant playback, normal playback, event playback, tag playback, log event playback
• Open Protocol
• Supported Open Protocols: HIKVISION, ONVIF (V.2.5)
• HDD
• Interface Type: One built-in SATA port
• Capacity: Supports 1TB to 8TB 3.5-inch HDD
• External Interface
• Audio Input/Output: Not supported
• Hardware Reset: Supported
• USB2.0 Interface: 2
• Dimensions
• Product Dimensions: 235 × 270 × 44.5 mm
• Packaging Dimensions: 387 × 362 × 75 mm
• Power Supply
• DC: 12V / 1.5A
• Power Consumption
• Standby Status: ≤8W
• Weight
• Net Weight: 932 g
• In the Box
• X5S NVR ×1
• Power Adapter ×1
• Mouse ×1
• Screw Kit ×1
• Regulatory Information ×2
• Quick Start Guide ×1
• Certifications
• CE / UL / RoHS / WEEE / REACH
