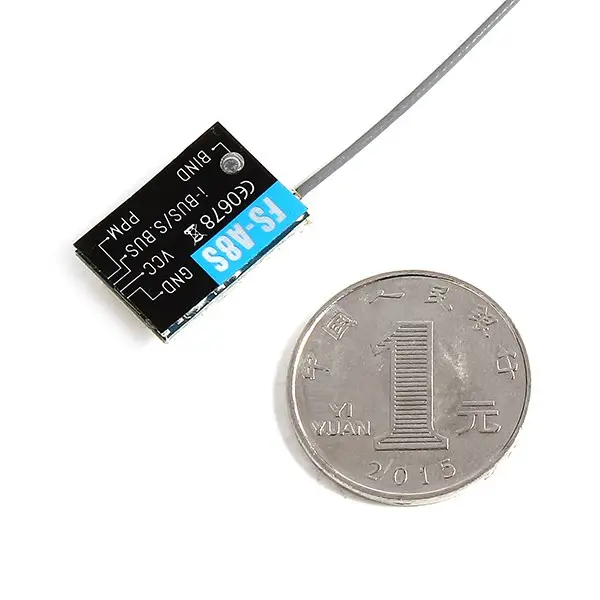

Image is for illustrative purposes only

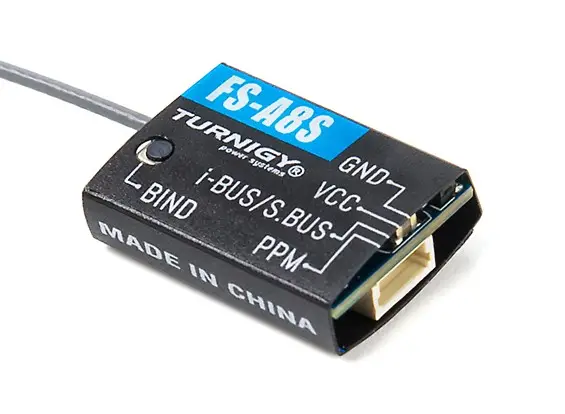

Vastuvõtja FS-A8S 2.4GHz 8 kanalit PPM i-BUS SBUS

  • 29.00€

FS-A8s on kompaktne ühepoolne vastuvõtja, mis on mõeldud kasutamiseks mitmerootorilistes lennumasinates. See kasutab AFHDS 2A protokolli, toetab PPM väljundit ning sellel on kuni 18 kanaline i-BUS tugi.

Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
Band width: 500KHz
Band number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
Transfer method: FHSS

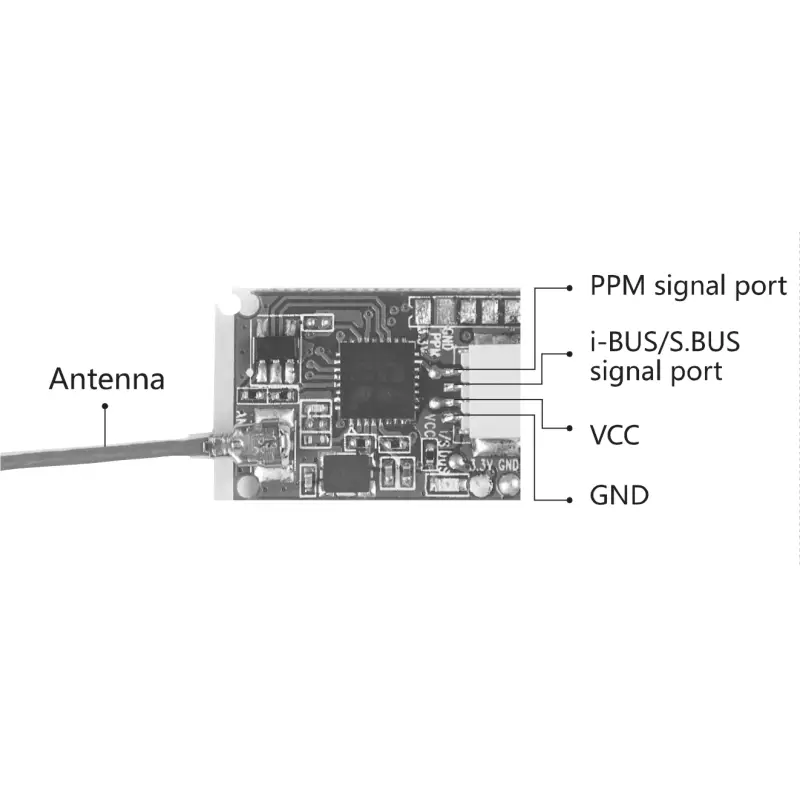

Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

FS-A8S Receiver andmeleht (ENG)650.83KBDownload
