Magnet d=16.3mm N38 M4 with hanging hook black 6kg
SKU:FTNB-16
Image is for illustrative purposes only
This small but strong magnetic hook features a black powder-coating applied through an electrostatic process, ensuring it is free of harmful substances. Thanks to its discreet colour, the magnetic hook is inconspicuous when mounted on dark surfaces.
When attaching the magnet to a vertical ferromagnetic surface, such as a wall, it's important to consider the displacement force. This value indicates the maximum weight the hook can support under optimal conditions without sliding.
To achieve the full adhesive force, ensure the ferromagnetic counterpart is smooth, sufficiently thick, and that the pot magnet makes direct, full-flush contact. Pot magnets can lose significant adhesive force even with a small gap of just half a millimetre. This characteristic is more pronounced in pot magnets than in other types of neodymium or ferrite magnets.

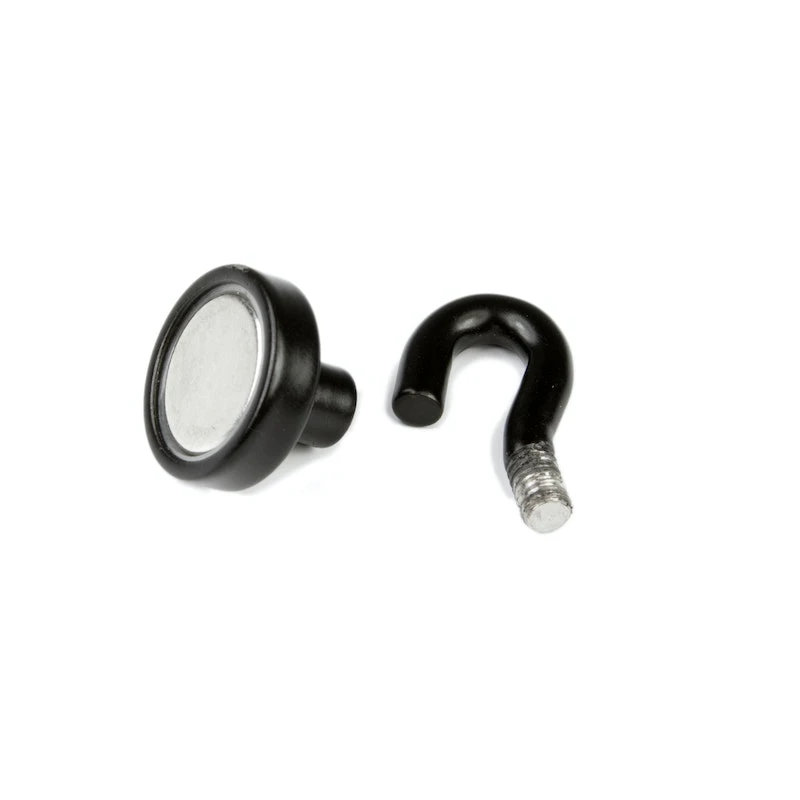

Please note: Always screw the hook carefully and completely into the threaded bushing.
When attaching the magnet to a vertical ferromagnetic surface, such as a wall, it's important to consider the displacement force. This value indicates the maximum weight the hook can support under optimal conditions without sliding.
To achieve the full adhesive force, ensure the ferromagnetic counterpart is smooth, sufficiently thick, and that the pot magnet makes direct, full-flush contact. Pot magnets can lose significant adhesive force even with a small gap of just half a millimetre. This characteristic is more pronounced in pot magnets than in other types of neodymium or ferrite magnets.
Please note: Always screw the hook carefully and completely into the threaded bushing.
Article ID: FTNB-16
EAN: 7640155432443
Material: NdFeB
Strength: approx. 6 kg (approx. 58.8 N)
Displacement force: approx. 1.2 kg (approx. 11.8 N)
Colour: Black
Design: With round hook

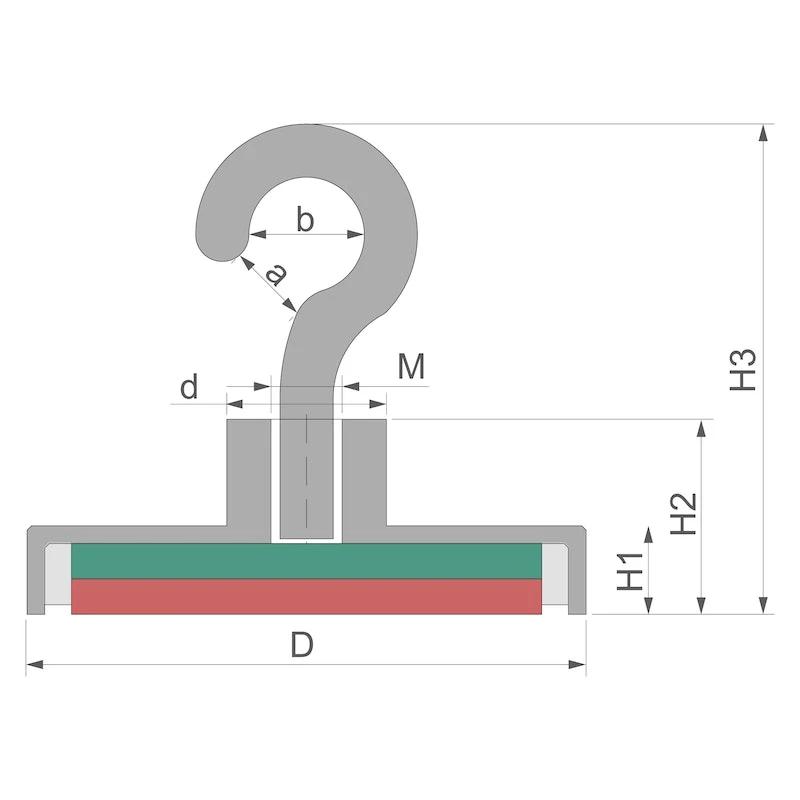

Pot diameter D: 16.3 mm
Neck diameter d: 6.3 mm
Pot height H1: 4.8 mm
Total height without hook H2: 11.8 mm
Total height with hook H3: 27.3 mm
Thread size: M4
Hook opening width a: 3.7 mm
Hook inside diameter b: 5.2 mm
Tolerance: +/- 0.2 mm
Coating: Nickel-coated (Ni-Cu-Ni), powder coated
Magnetisation: N38
Max. working temperature: 80 °C
Shape: Disc
Steel: Q235 (China)
Weight: 11 g
