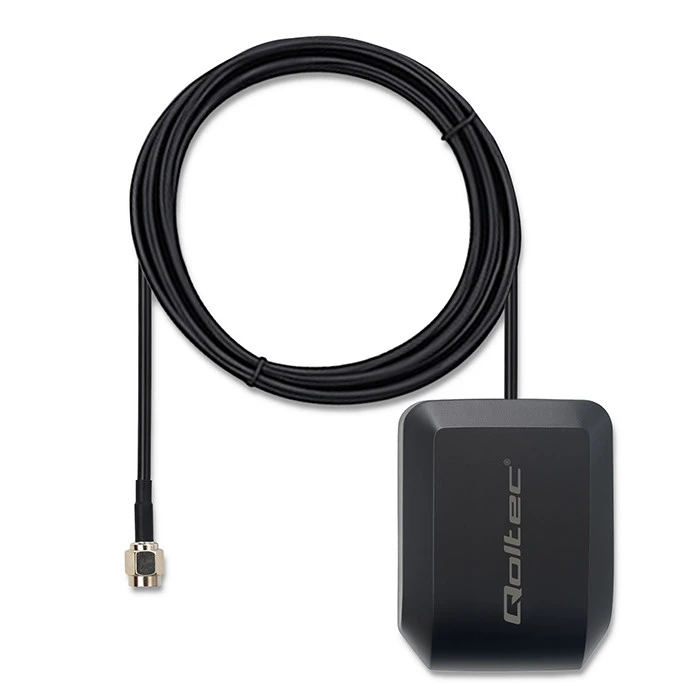

The Qoltec GPS antenna provides precise and stable positioning even in challenging environments such as dense urban areas or forests. Equipped with an integrated Low Noise Amplifier (LNA), it delivers exceptional sensitivity, ensuring reliable signal reception where standard devices might fail. A narrow 4 MHz bandwidth effectively filters out interference, guaranteeing a clean signal in the GPS L1 frequency band.
Its omnidirectional design and RHCP polarization allow for uniform signal capture from all directions, regardless of the device's orientation or movement. The SMA connector ensures compatibility with various compact devices, including telemetry systems and IoT modules. The rugged IP65-rated housing and copper components ensure long-term durability and corrosion resistance.

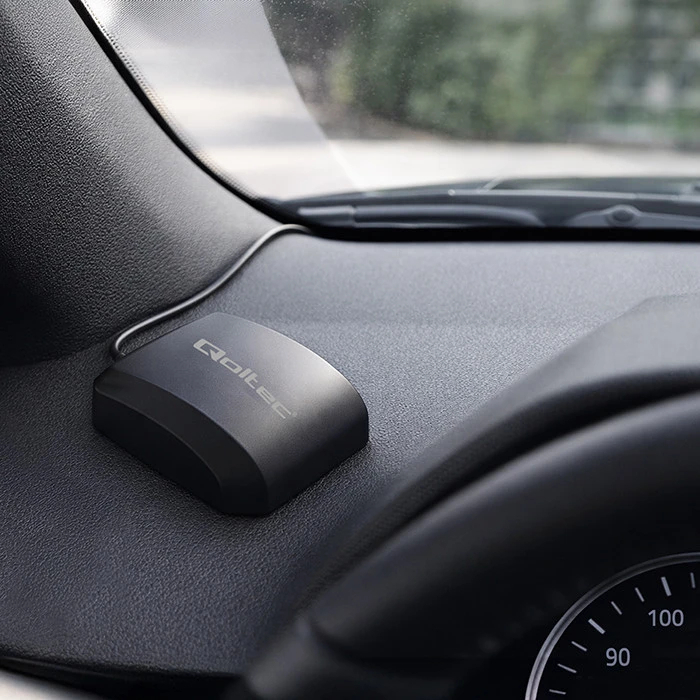

Installation is seamless thanks to the strong magnetic base, which attaches securely to vehicle roofs or other metal surfaces without the need for drilling. The 3-meter cable offers plenty of flexibility for optimal placement while maintaining maximum signal strength.
Its omnidirectional design and RHCP polarization allow for uniform signal capture from all directions, regardless of the device's orientation or movement. The SMA connector ensures compatibility with various compact devices, including telemetry systems and IoT modules. The rugged IP65-rated housing and copper components ensure long-term durability and corrosion resistance.
Installation is seamless thanks to the strong magnetic base, which attaches securely to vehicle roofs or other metal surfaces without the need for drilling. The 3-meter cable offers plenty of flexibility for optimal placement while maintaining maximum signal strength.
Producer: Qoltec
Type: Outdoor

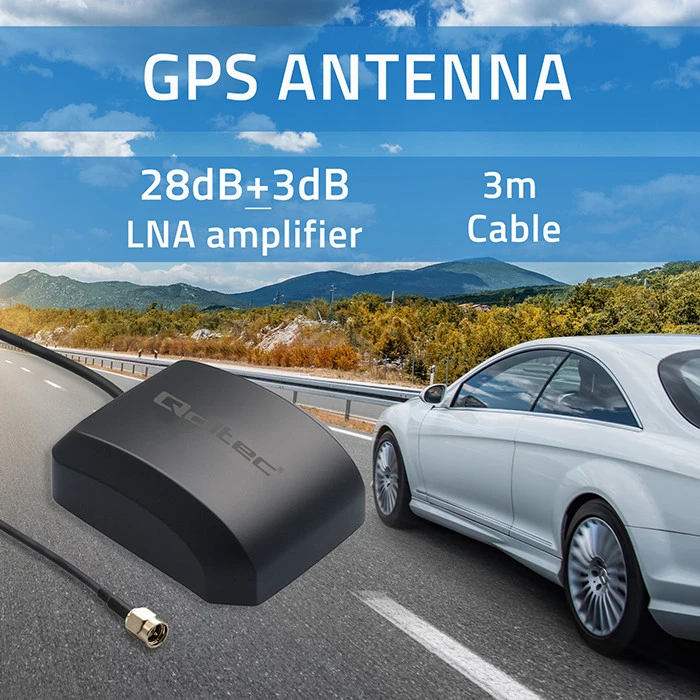

Antenna gain: 28 ±3 dB
Wireless standard: 1575.42 MHz (GPS L1) + 1602MHz (GLONASS)
Bandwidth: 4MHz
Impedance: 50Ω
Polarization: RHCP

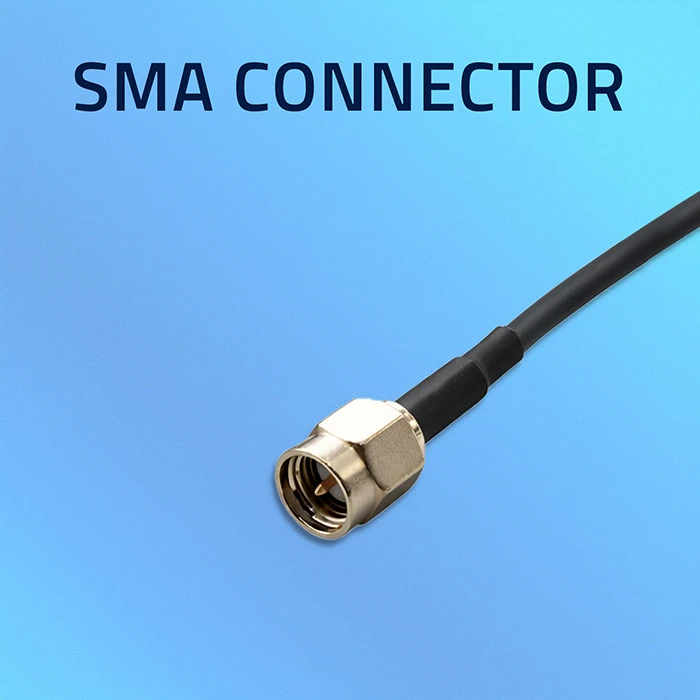

Antenna connector: SMA
VSWR: ≤ 1.5

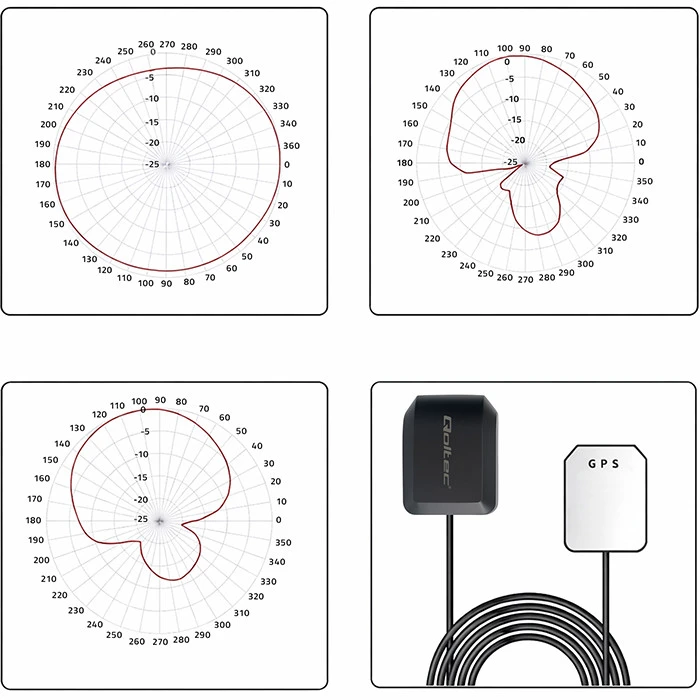

Radiation Pattern: Omnidirectional
Input power cable: RG-174
Amplifier: LNA
IP rating: IP 65
Additional information: Antenna mounted to the car body using a magnet.
Colour: Black
Material: Plastic + copper
Cable length: 3m
Working temperature: -40℃～+85℃
Dimensions (D/L x W x H): 48 x 37 x 15 mm
Package contents: 1 x Antenna GPS
