GSM 4G gateway controller temperature sensor
SKU:SIMPAL-D410
Manufacturer:Simpal

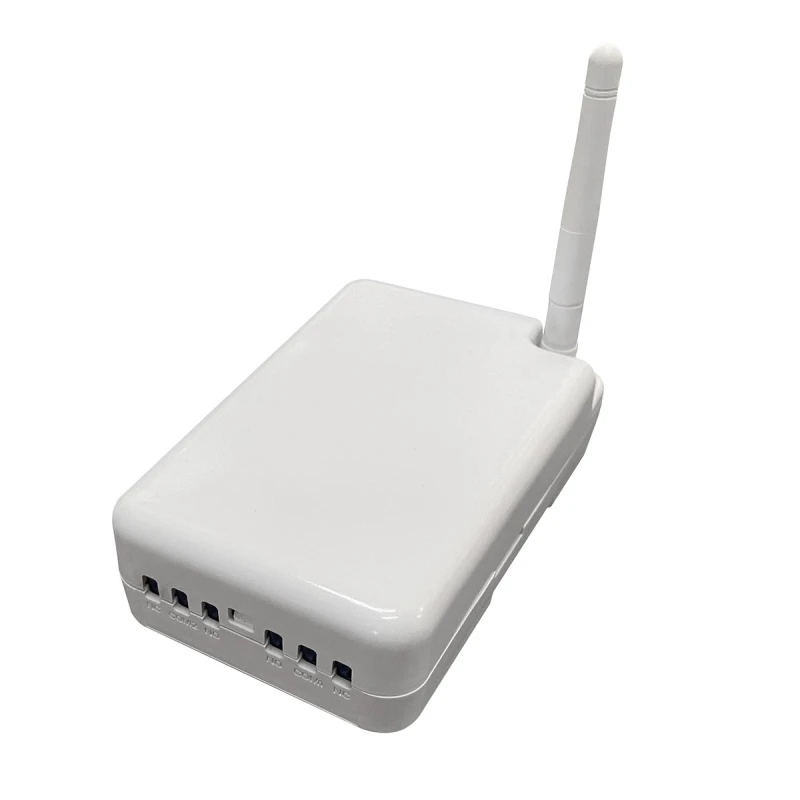

Image is for illustrative purposes only
The SIMPAL-D410 is a versatile 4G LTE gate opener and remote control device, perfect for gate/door control, heater management, and various industrial power applications. It offers convenient remote access and control, enhancing security and automation capabilities.
General Information
The SIMPAL-D410 utilizes a GSM SIM card and is compatible with both 2G and 4G networks.
Key Features
- 4G LTE Network: Operates on 2G/4G networks using an industrial 4G module.
- Free Calling to Open Gates: Open electric gates or doors remotely with a free phone call.
- Two Lines Signal Control: Control two separate lines with two 16A big power relays, all managed with a single SIM card.
- Temperature Sensor: Monitor temperature and enable thermostat control for electric heaters with the included cable temperature sensor.
- Power Failure Alarm: Receive automatic SMS notifications when power is lost or restored.
- Intruder Alarm: Supports one wired sensor (sold separately) for SMS alerts upon sensor trigger. Compatible with NO/NC type wired water leak sensors, PIR motion detectors, or door sensors.
- Large User Capacity: Store up to 200 user phone numbers for device control.
- SMS Control: Control the device by sending SMS commands to the SIM card number.
- LED Indicators: Monitor the unit's status with three front-facing LED lights.
Applications and Benefits
- Remote Gate/Door Control: Replace your existing gate/door opener button and enjoy convenient access with free phone calling.
- Heater Control: Utilize the temperature sensor for precise thermostat control when connected to an electric heater.
- Industrial Power Control: Ideal for a wide range of industrial power control applications.
- Enhanced Security: Receive timely alarms for power failures and intrusion attempts.
- Automation Capabilities: Automate routine tasks and control devices remotely for increased efficiency.
Working Principle
Each relay features three terminals: COM, NO, and NC. When an SMS command to power ON is received, the COM terminal connects with the NO terminal and disconnects from the NC terminal. Conversely, when an SMS command to power OFF is received, the COM terminal connects with the NC terminal and disconnects from the NO terminal.
Advanced Features
- Delay Control: Set a delay (0-3600 seconds) to turn power on or off after a specified time.
- Schedule Control: Configure schedule control parameters for automated operation based on time.
- Thermostat Control: Set thermostat control parameters for temperature-based automation.
- Temperature Alarm: Receive SMS alerts when the temperature exceeds a defined range.
- 12V DC Power Monitor: Continuously monitors the 12V DC power input.
- Open Door When Sensor Trigger: Configure the device to automatically open the door when a connected sensor is triggered.
- SMS Notifications: Stay informed with SMS notifications for power loss, sensor alarms, weak GSM signals, and calling control.
Installation
The device can be easily mounted on a DIN rail or wall using the included bracket. It is powered by 12VDC or 230VAC via the included power adapter. Ensure the SIM card is correctly inserted and locked into place for proper operation.
Important Note
All services and functions are dependent on GSM network and SIM card support.
General Information
The SIMPAL-D410 utilizes a GSM SIM card and is compatible with both 2G and 4G networks.
Key Features
- 4G LTE Network: Operates on 2G/4G networks using an industrial 4G module.
- Free Calling to Open Gates: Open electric gates or doors remotely with a free phone call.
- Two Lines Signal Control: Control two separate lines with two 16A big power relays, all managed with a single SIM card.
- Temperature Sensor: Monitor temperature and enable thermostat control for electric heaters with the included cable temperature sensor.
- Power Failure Alarm: Receive automatic SMS notifications when power is lost or restored.
- Intruder Alarm: Supports one wired sensor (sold separately) for SMS alerts upon sensor trigger. Compatible with NO/NC type wired water leak sensors, PIR motion detectors, or door sensors.
- Large User Capacity: Store up to 200 user phone numbers for device control.
- SMS Control: Control the device by sending SMS commands to the SIM card number.
- LED Indicators: Monitor the unit's status with three front-facing LED lights.
Applications and Benefits
- Remote Gate/Door Control: Replace your existing gate/door opener button and enjoy convenient access with free phone calling.
- Heater Control: Utilize the temperature sensor for precise thermostat control when connected to an electric heater.
- Industrial Power Control: Ideal for a wide range of industrial power control applications.
- Enhanced Security: Receive timely alarms for power failures and intrusion attempts.
- Automation Capabilities: Automate routine tasks and control devices remotely for increased efficiency.
Working Principle
Each relay features three terminals: COM, NO, and NC. When an SMS command to power ON is received, the COM terminal connects with the NO terminal and disconnects from the NC terminal. Conversely, when an SMS command to power OFF is received, the COM terminal connects with the NC terminal and disconnects from the NO terminal.
Advanced Features
- Delay Control: Set a delay (0-3600 seconds) to turn power on or off after a specified time.
- Schedule Control: Configure schedule control parameters for automated operation based on time.
- Thermostat Control: Set thermostat control parameters for temperature-based automation.
- Temperature Alarm: Receive SMS alerts when the temperature exceeds a defined range.
- 12V DC Power Monitor: Continuously monitors the 12V DC power input.
- Open Door When Sensor Trigger: Configure the device to automatically open the door when a connected sensor is triggered.
- SMS Notifications: Stay informed with SMS notifications for power loss, sensor alarms, weak GSM signals, and calling control.
Installation
The device can be easily mounted on a DIN rail or wall using the included bracket. It is powered by 12VDC or 230VAC via the included power adapter. Ensure the SIM card is correctly inserted and locked into place for proper operation.
Important Note
All services and functions are dependent on GSM network and SIM card support.
Description: Simpal D410 4G is a remote control used for opening electric doors, garage doors or gates, starting pumps, SMS alarms, frost alarms, and as a GSM transmitter.
Outputs: Two 16A relay outputs for controlling signals or voltage.
Temperature Sensor: Included for temperature monitoring and thermostat control.
Design: Compact design and DIY installation.
Applications: Suitable for electric door opener, heater controller, industrial power control, starting pumps, notifications, alarms, power failure SMS alerts.
Features:
SIM card: Works with a 4G SIM card.
Control lines: Two 16A relays. One SIM card for controlling two outputs.
Temperature sensor: Included, used for temperature monitoring or thermostat control when an electric heater is connected to the device.
Input: 1 input. Potential-free contact/disconnection between T1 and T2. Can be, for example, a microswitch, float switch.
Power failure alarm: Sends an SMS when power is lost or restored (built-in battery).
Programming: Can be programmed to send an SMS in case of an "alarm".
User capacity: Supports a large number of users: up to 200 users can be stored for device control.
Technical specification:
GSM frequency: 4G
Dimensions: 10x7cm and 3.5cm thick.
Power input: 12V DC (12vdc adapter included).
Relay control: SMS or phone call
Relay type: 16A relay x 2 pcs
Max load: 16A 3500W
SIM card slot: PUSH SIM card slot, SIM card size 1.8V / 3.0V standard size slot;
Indicators: Three blue LEDs, GSM indicator / Line1 output / Line2 output
Temperature sensor: DS18B20, -30—100 degrees.
Wired sensor type: NO / NC trigger (no-voltage input)
NOTE: Only potential-free signal between T1 and T2. (DO NOT APPLY VOLTAGE!!!)
Inputs and outputs: Inputs and outputs are visible on the end of the device, so the device must be protected with a larger enclosure in case of voltages higher than 24V.
Operating temperature: -30~+50℃
Manual: English manual included. D410 User Manual
Applications: There are simpler applications for the product that use SMS. This way, you don't have to remember commands...
Outputs: Two 16A relay outputs for controlling signals or voltage.
Temperature Sensor: Included for temperature monitoring and thermostat control.
Design: Compact design and DIY installation.
Applications: Suitable for electric door opener, heater controller, industrial power control, starting pumps, notifications, alarms, power failure SMS alerts.
Features:
SIM card: Works with a 4G SIM card.
Control lines: Two 16A relays. One SIM card for controlling two outputs.
Temperature sensor: Included, used for temperature monitoring or thermostat control when an electric heater is connected to the device.
Input: 1 input. Potential-free contact/disconnection between T1 and T2. Can be, for example, a microswitch, float switch.
Power failure alarm: Sends an SMS when power is lost or restored (built-in battery).
Programming: Can be programmed to send an SMS in case of an "alarm".
User capacity: Supports a large number of users: up to 200 users can be stored for device control.
Technical specification:
GSM frequency: 4G
Dimensions: 10x7cm and 3.5cm thick.
Power input: 12V DC (12vdc adapter included).
Relay control: SMS or phone call
Relay type: 16A relay x 2 pcs
Max load: 16A 3500W
SIM card slot: PUSH SIM card slot, SIM card size 1.8V / 3.0V standard size slot;
Indicators: Three blue LEDs, GSM indicator / Line1 output / Line2 output
Temperature sensor: DS18B20, -30—100 degrees.
Wired sensor type: NO / NC trigger (no-voltage input)
NOTE: Only potential-free signal between T1 and T2. (DO NOT APPLY VOLTAGE!!!)
Inputs and outputs: Inputs and outputs are visible on the end of the device, so the device must be protected with a larger enclosure in case of voltages higher than 24V.
Operating temperature: -30~+50℃
Manual: English manual included. D410 User Manual
Applications: There are simpler applications for the product that use SMS. This way, you don't have to remember commands...
-
