SKU:OKY3312-30A
Manufacturer:
Okystar

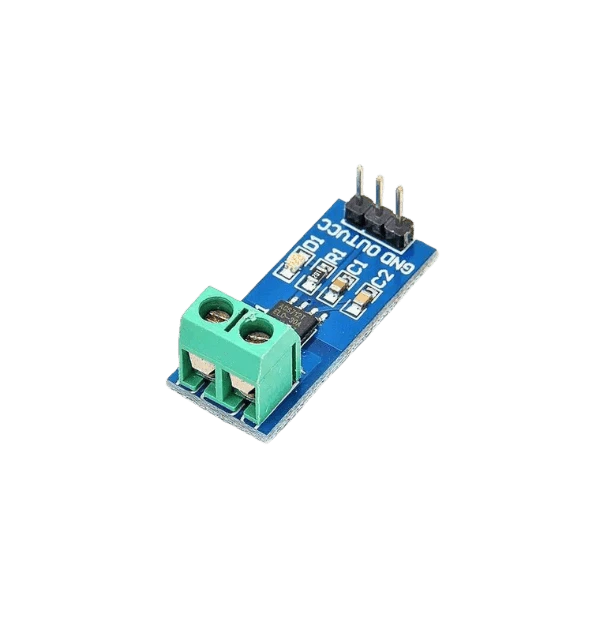

Image is for illustrative purposes only
The OKYSTAR OKY3312-30A is a current sensor module designed for measuring both alternating (AC) and direct (DC) current. Based on the ACS712ELC-30A Hall effect chip, it provides a simple and effective way to monitor current flow in a circuit up to ±30A.
Key Features
- Measures both AC and DC current within a ±30A range.
- Provides a proportional analog voltage output with a sensitivity of 66 mV/A.
- Outputs half the supply voltage (VCC/2) at zero current, simplifying integration with microcontrollers.
- Operates on a standard 5V power supply and includes an onboard power indicator LED.
As a Hall effect-based sensor, its accuracy can be influenced by external magnetic fields. For best results, position the module away from strong magnetic sources.
Key Features
- Measures both AC and DC current within a ±30A range.
- Provides a proportional analog voltage output with a sensitivity of 66 mV/A.
- Outputs half the supply voltage (VCC/2) at zero current, simplifying integration with microcontrollers.
- Operates on a standard 5V power supply and includes an onboard power indicator LED.
As a Hall effect-based sensor, its accuracy can be influenced by external magnetic fields. For best results, position the module away from strong magnetic sources.
Manufacturer: OKYSTAR
Model: OKY3312-30A
Sensor Chip: Allegro ACS712ELC-30A
Supply Voltage: 5V DC
Measured Current Range: ±30A
Output Type: Analog
Sensitivity: 66 mV/A
Output Voltage at Zero Current: VCC/2
Bandwidth: 80 kHz
Internal Conductor Resistance: 1.2 mΩ
PCB Dimensions: 31 (mm) x 13 (mm)
Model: OKY3312-30A
Sensor Chip: Allegro ACS712ELC-30A
Supply Voltage: 5V DC
Measured Current Range: ±30A
Output Type: Analog
Sensitivity: 66 mV/A
Output Voltage at Zero Current: VCC/2
Bandwidth: 80 kHz
Internal Conductor Resistance: 1.2 mΩ
PCB Dimensions: 31 (mm) x 13 (mm)
-
