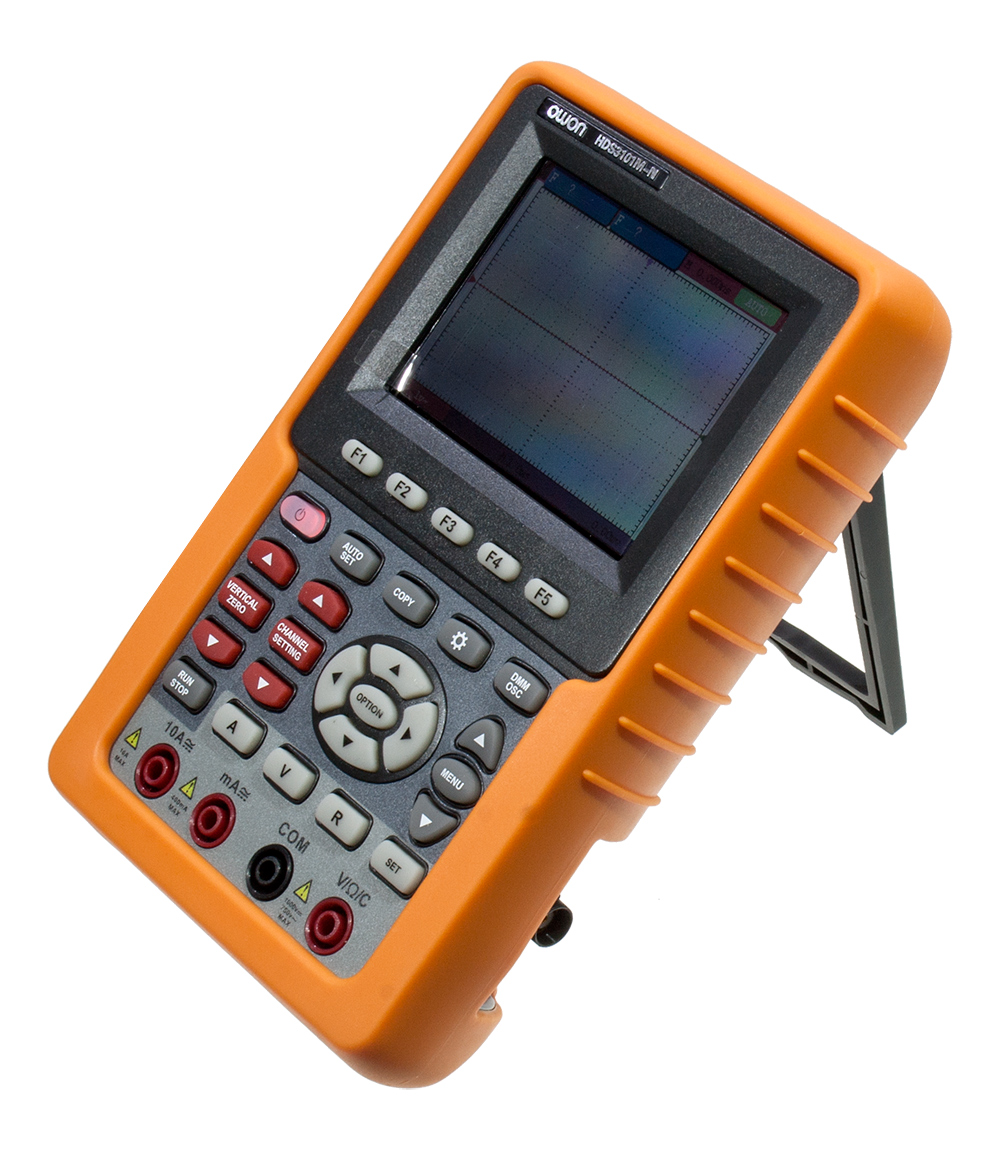

Handheld oscilloscope 3.7" TFT 640*480pix 100MHz 1GS/s
SKU:HDS3101M-N
Manufacturer:OWON
Image is for illustrative purposes only

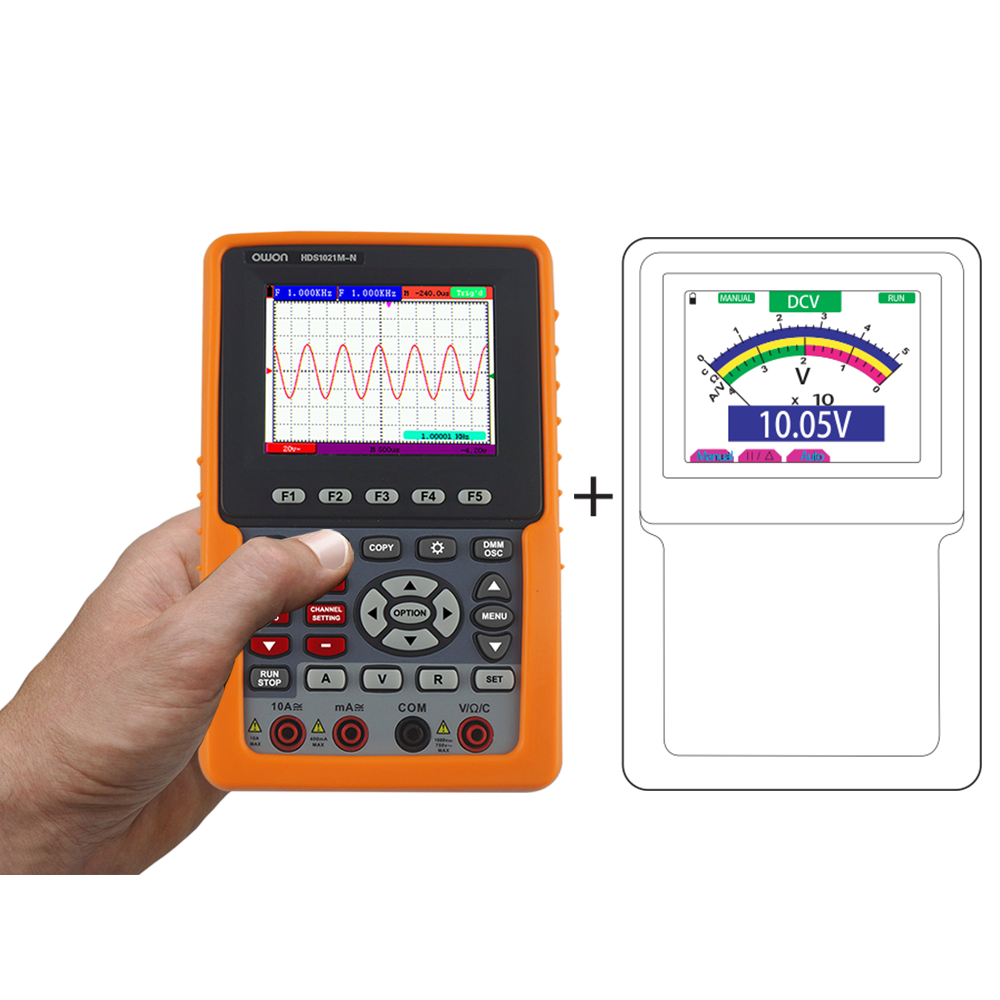

Portable oscilloscope (1-channel) + Multimeter (V/A/Ω/F)

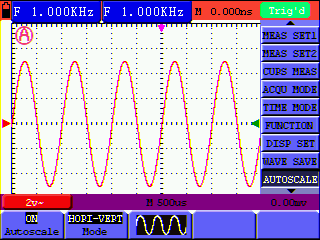

Multi functional tool for diagnostics, helps visualize how components are reacting/communicating with one another, giving you faster diagnostic speeds. The oscilloscope is equipped with 100MHz bandwith, a sample rate of 1GS/s and Autoscale function, which makes this product perfect for beginners and also intermediate level users.
Multimeter measuring functions. It may be used to measure AC/DC voltage and current, resistance and capacitance.
Set includes everything needed to start testing!
The lithium battery supplies ~6h of use.
Multi functional tool for diagnostics, helps visualize how components are reacting/communicating with one another, giving you faster diagnostic speeds. The oscilloscope is equipped with 100MHz bandwith, a sample rate of 1GS/s and Autoscale function, which makes this product perfect for beginners and also intermediate level users.
Multimeter measuring functions. It may be used to measure AC/DC voltage and current, resistance and capacitance.
Set includes everything needed to start testing!
The lithium battery supplies ~6h of use.
Channels: 1
Bandwidth: 100 MHz
Rise time: ≤ 3.5 ns
Real-time sampling rate: 1 GS/s
Vertical Sensitivity: 5 mV/div ～ 5 V/div
Vertical Resolution: 8 bits
Record Length: 6K points
Trigger Type: Edge, Video, and Alternate
Trigger Mode: Auto, Normal, and Single
Trigger Level: ±6 divisions from screen center

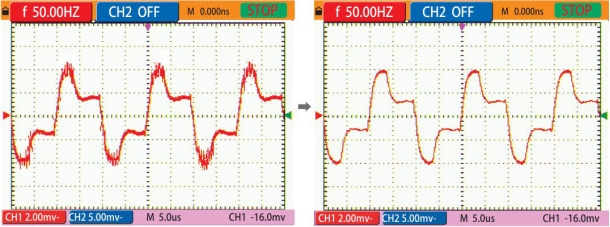

Acquisition Mode: Sample, Peak Detect, Average
Waveform Storage: 4 waveforms
Multimeter:
DC Voltage: 400 mV / 4 V / 40 V / 400 V / 1000 V: ±(1±1%)
AC Voltage: 4 V / 40 V / 400 V: ±(1± 3%)
750 V: ±(2% ± 3%); Frequency : 40 Hz - 400 Hz
DC Current: 40 mA / 400 mA: ±(1.5±1%)
10 A: ±(3±3%)
AC Current: 40 mA: ±(1.5±3%), 400 mA: ±(2± 1%), 10 A: ±(5±3%)
Impedance: 400 Ω: ±(1±3%), 40 KΩ- 4 MΩ: ±(1±1%), 40 MΩ: ±(1.5± 3%)
Capacitance: 51.2 nF-100 uF: ±(3± 3%)
General Specifications:

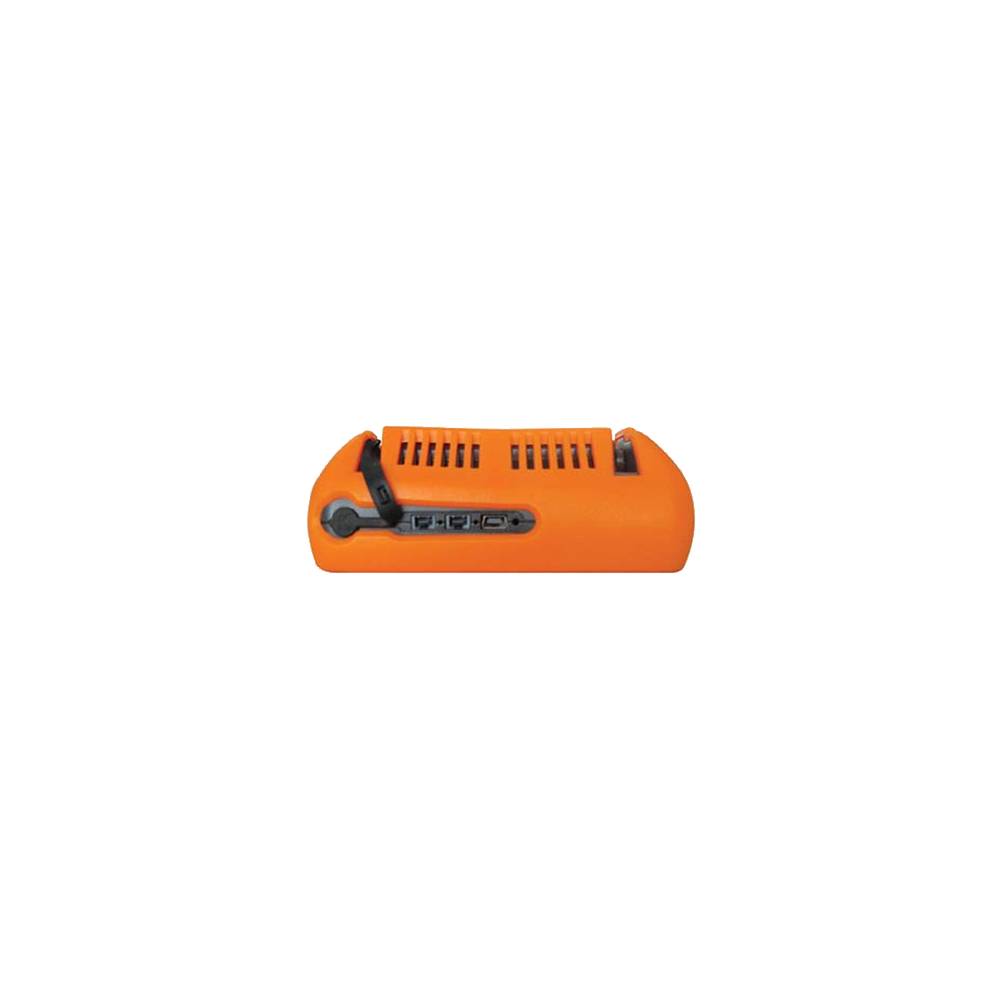

Interface: mini-USB, mini-RS232
Multimeter Full Scale Reading: 4000
LCD size: 3.7"
Power Supply: 100-240 V AC, 50/60 Hz
battery 7.4 V (6 hours' backup)
Dimensions: 180 × 115 × 40 mm
Weight: 645 g
Bandwidth: 100 MHz
Rise time: ≤ 3.5 ns
Real-time sampling rate: 1 GS/s
Vertical Sensitivity: 5 mV/div ～ 5 V/div
Vertical Resolution: 8 bits
Record Length: 6K points
Trigger Type: Edge, Video, and Alternate
Trigger Mode: Auto, Normal, and Single
Trigger Level: ±6 divisions from screen center
Acquisition Mode: Sample, Peak Detect, Average
Waveform Storage: 4 waveforms
Multimeter:
DC Voltage: 400 mV / 4 V / 40 V / 400 V / 1000 V: ±(1±1%)
AC Voltage: 4 V / 40 V / 400 V: ±(1± 3%)
750 V: ±(2% ± 3%); Frequency : 40 Hz - 400 Hz
DC Current: 40 mA / 400 mA: ±(1.5±1%)
10 A: ±(3±3%)
AC Current: 40 mA: ±(1.5±3%), 400 mA: ±(2± 1%), 10 A: ±(5±3%)
Impedance: 400 Ω: ±(1±3%), 40 KΩ- 4 MΩ: ±(1±1%), 40 MΩ: ±(1.5± 3%)
Capacitance: 51.2 nF-100 uF: ±(3± 3%)
General Specifications:
Interface: mini-USB, mini-RS232
Multimeter Full Scale Reading: 4000
LCD size: 3.7"
Power Supply: 100-240 V AC, 50/60 Hz
battery 7.4 V (6 hours' backup)
Dimensions: 180 × 115 × 40 mm
Weight: 645 g
-
