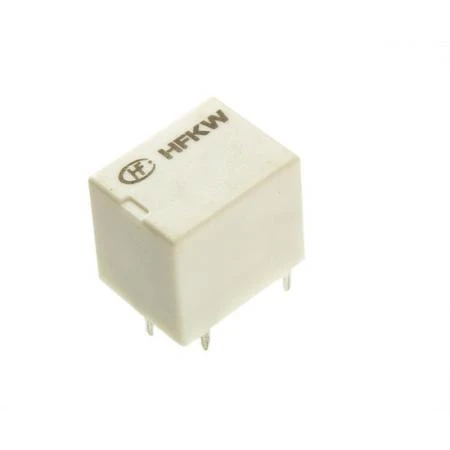

Relay 24VDC NO-NC 15A/15V 25mA
SKU:HFKW/024-1ZW
Image is for illustrative purposes only
This relay operates at 24VDC and supports both Normally Open (NO) and Normally Closed (NC) contacts, handling currents up to 15A and voltages up to 15VDC.
Control Voltage: min 14.0VDC
Control Current: 25mA
Min. Holding Voltage: 2.0VDC
Contacts:
Voltage: up to 15VDC
Current: up to 15A
Power: 200W
Similar types: FBR51, G8QN, AZ947
Control Voltage: min 14.0VDC
Control Current: 25mA
Min. Holding Voltage: 2.0VDC
Contacts:
Voltage: up to 15VDC
Current: up to 15A
Power: 200W
Similar types: FBR51, G8QN, AZ947
Contact current rating
35A
Mounting
Panel / With Clamp
Contacts
SPDT
Coil voltage
24 V DC
