SKU:POCKET2-SET
Manufacturer:
Hikmicro
New
Image is for illustrative purposes only
The HIKMICRO Pocket2 set is intended for thermography and inspecting small electronic components. The camera combines a 256 × 192 thermal detector, an 8 MP visual camera and a 3.5-inch touch screen, and measures temperatures from −20 to 400 °C.
The included macro lens allows very small details to be viewed from a working distance of approximately 30 mm. The adjustable desktop stand helps keep the camera stable during electronics inspection.

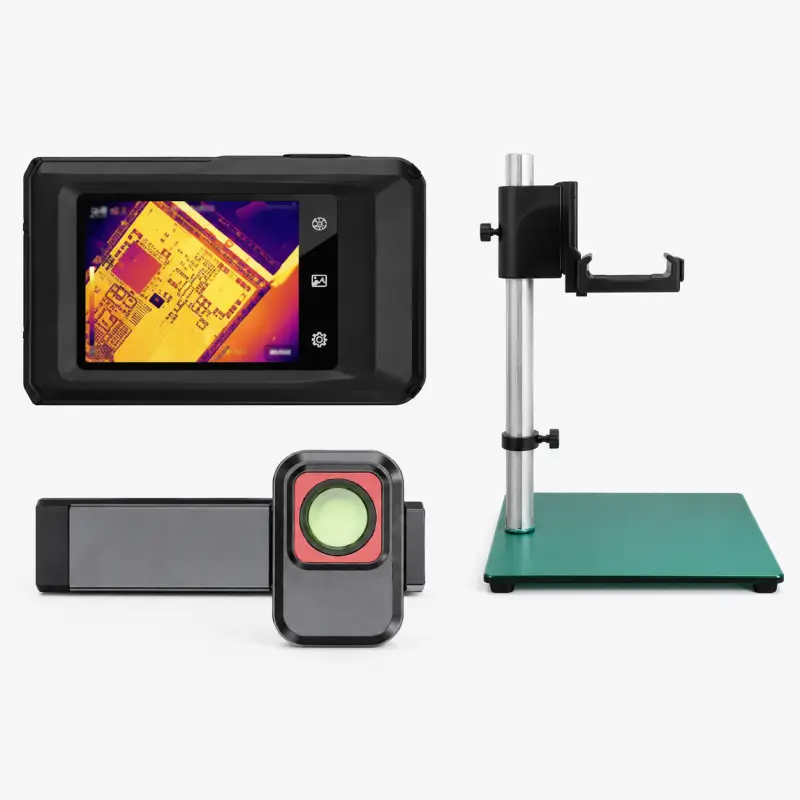

In the box:
HIKMICRO Pocket2 thermal camera HM-TP42-3AQF/W-Pocket2
HIKMICRO macro lens HM-P201-MACRO
HIKMICRO adjustable desktop stand HM-AHBR02
The included macro lens allows very small details to be viewed from a working distance of approximately 30 mm. The adjustable desktop stand helps keep the camera stable during electronics inspection.
In the box:
HIKMICRO Pocket2 thermal camera HM-TP42-3AQF/W-Pocket2
HIKMICRO macro lens HM-P201-MACRO
HIKMICRO adjustable desktop stand HM-AHBR02
Thermal camera model: HM-TP42-3AQF/W-Pocket2
IR resolution: 256 × 192 (49,152 pixels)
Thermal sensitivity: Less than 40 mK
Image frequency: 25 Hz
Visual camera: 8 MP
Display: 3.5-inch 640 × 480 LCD touch screen
Temperature measurement range: −20 to 400 °C
Accuracy: Max. ±2 °C or ±2%
Digital zoom: 1× to 4×
Image modes: Thermal, visual, Fusion, PIP and Blending
Storage: Built-in 16 GB
Image storage capacity: Approx. 60,000 images
Video storage capacity: Approx. 90 hours
Wi-Fi: 2.4 GHz and 5 GHz
Interface: USB Type-C
Battery operating time: Approx. 4 hours
Charging time: Approx. 2.5 hours
Protection rating: IP54
Drop test height: 2 m
Dimensions: 138.5 × 85.2 × 23.6 mm
Weight: Approx. 218 g
Macro lens: HM-P201-MACRO
Focus distance: 30 ± 1 mm
Minimum target size for imaging: 100 × 100 µm
Temperature range: −20 to 150 °C
Accuracy: Max. ±3 °C or ±3%
Weight: 9 g
Desktop stand: HM-AHBR02
Material: Aluminium alloy
Height adjustment range: 20–180 mm
Clamp adjustment range: 58–100 mm
Maximum load capacity: 0.4 kg
Net weight: 1.32 kg
IR resolution: 256 × 192 (49,152 pixels)
Thermal sensitivity: Less than 40 mK
Image frequency: 25 Hz
Visual camera: 8 MP
Display: 3.5-inch 640 × 480 LCD touch screen
Temperature measurement range: −20 to 400 °C
Accuracy: Max. ±2 °C or ±2%
Digital zoom: 1× to 4×
Image modes: Thermal, visual, Fusion, PIP and Blending
Storage: Built-in 16 GB
Image storage capacity: Approx. 60,000 images
Video storage capacity: Approx. 90 hours
Wi-Fi: 2.4 GHz and 5 GHz
Interface: USB Type-C
Battery operating time: Approx. 4 hours
Charging time: Approx. 2.5 hours
Protection rating: IP54
Drop test height: 2 m
Dimensions: 138.5 × 85.2 × 23.6 mm
Weight: Approx. 218 g
Macro lens: HM-P201-MACRO
Focus distance: 30 ± 1 mm
Minimum target size for imaging: 100 × 100 µm
Temperature range: −20 to 150 °C
Accuracy: Max. ±3 °C or ±3%
Weight: 9 g
Desktop stand: HM-AHBR02
Material: Aluminium alloy
Height adjustment range: 20–180 mm
Clamp adjustment range: 58–100 mm
Maximum load capacity: 0.4 kg
Net weight: 1.32 kg
-
