8 MP Powered by Darkfighter Fixed Turret Network Camera

SKU:DS-2CD2386G2H-IU2.8
Manufacturer:Hikvision

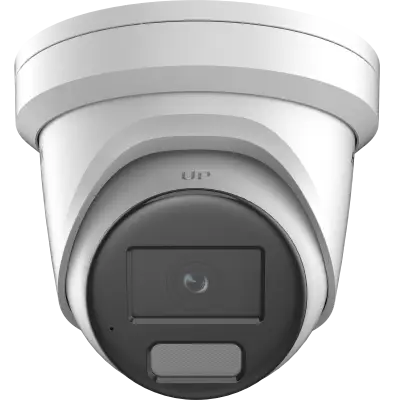

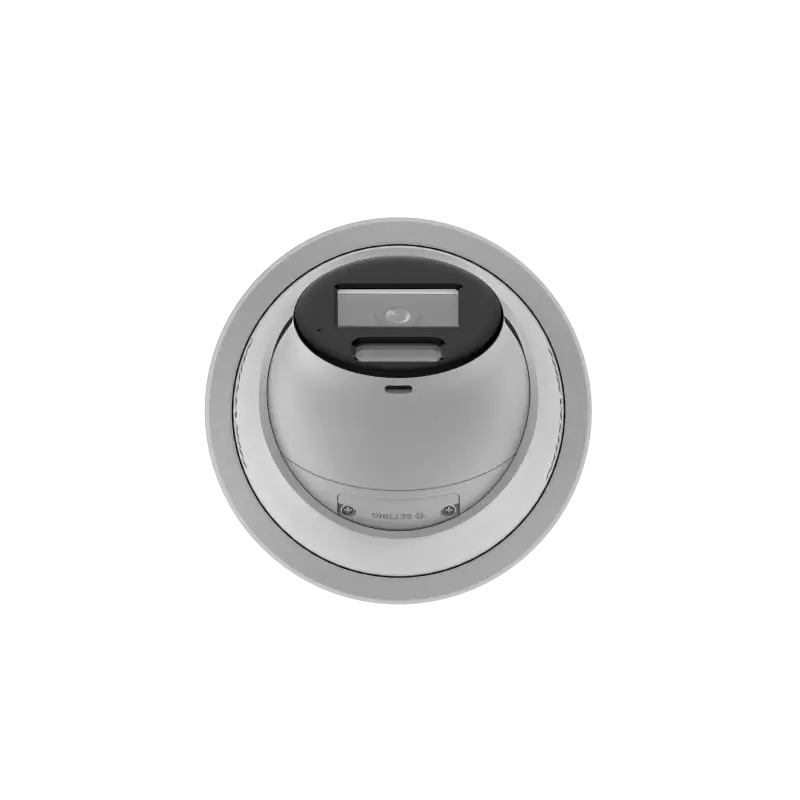

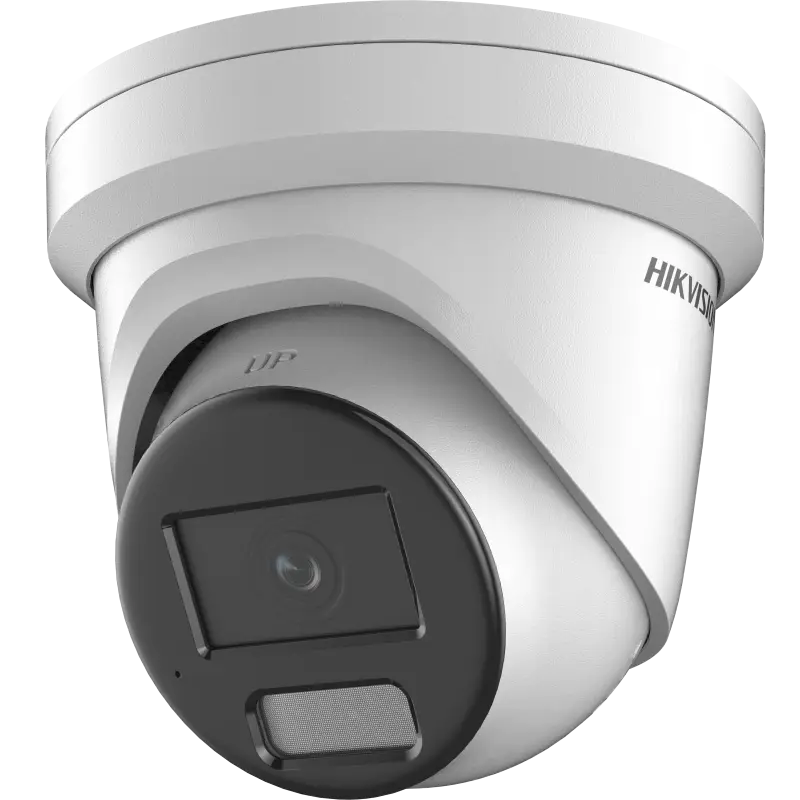

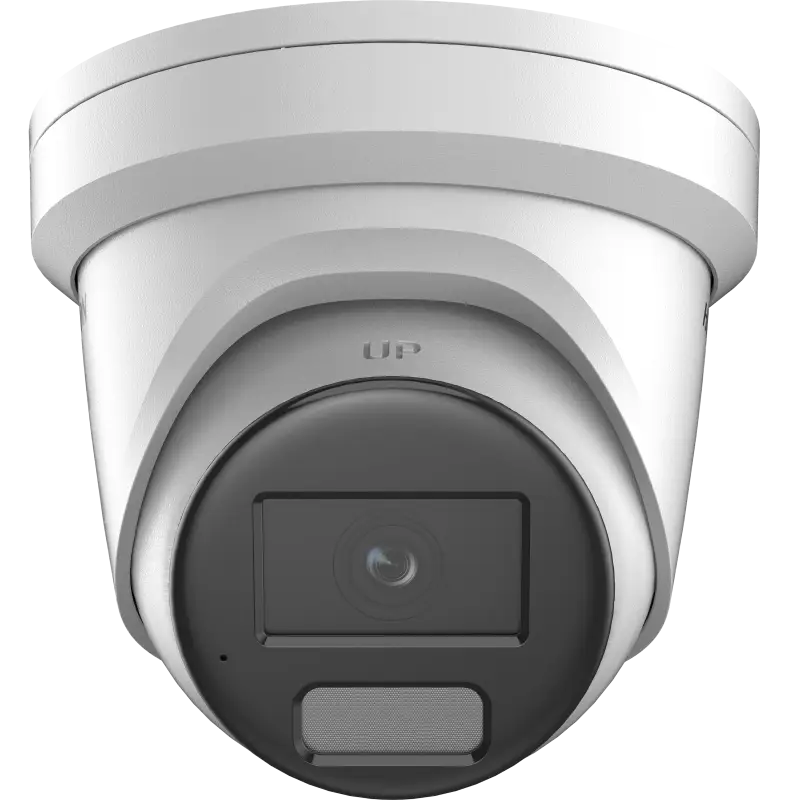

New 8 MP Powered by Darkfighter Fixed Turret Network Camera
Image is for illustrative purposes only

This Hikvision DS-2CD2386G2H-IU2.8 is an 8-megapixel network turret camera with a fixed 2.8 mm lens, designed for high-quality surveillance with advanced features. It provides clear imaging up to a resolution of 3840 × 2160.

Key Features

- 8-megapixel resolution (up to 3840 × 2160) for high-definition video.

- Fixed 2.8 mm lens offers a wide field of view.

- Powered-by-Darkfighter technology ensures excellent performance in low-light conditions.

- IR illumination provides clear night vision up to 30 meters.

- AcuSense technology focuses on classifying human and vehicle targets to reduce false alarms.

- Built-in microphone enables real-time audio monitoring.

- Supports H.265+ compression for efficient bandwidth and storage use.

- MicroSD card slot supports up to 512 GB for onboard storage.

- IP67 rated for reliable protection against dust and water ingress.

- Supports Power over Ethernet (PoE) for simplified power and data connection.

Applications

Its robust IP67 rating and IR capabilities make this camera suitable for outdoor installation. The AcuSense technology helps in focusing surveillance on relevant events by accurately detecting people and vehicles, making it useful for monitoring perimeters, entrances, and other areas where accurate event detection is crucial.

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Lens Type: Fixed focal lens, 2.8 mm
Focal Length & FOV (2.8mm): horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°
Aperture: F1.0
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Video Compression (Main Stream): H.265/H.264/H.264+/H.265+
Audio Compression (-U): G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event (AcuSense): Line crossing detection, intrusion detection, region entering detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), face capture
WDR: 120 dB
DNR: 3D DNR
Power: 12 VDC ± 25%, PoE (802.3af, Class 3)
Power Consumption: max. 8 W (PoE), max. 6.5 W (12 VDC)
Operating Temperature: –30 °C to +60 °C
Ingress Protection: IP67
Built-in Microphone: Yes (-U model)
DS-2CD2386G2H-IU2.8 Datasheet EN1004.12KB
Download
DS-2CD2386G2H-IU2.8 Quick Guide EN2.99MB
Download
DS-2CD2386G2H-IU2.8 Manual EN11.07MB
Download
