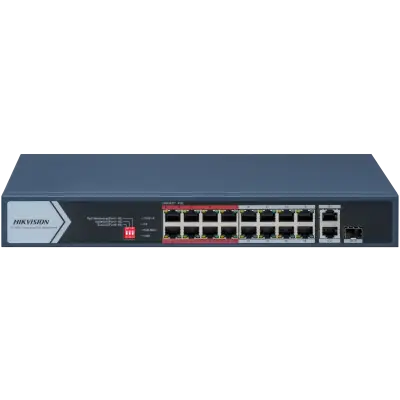

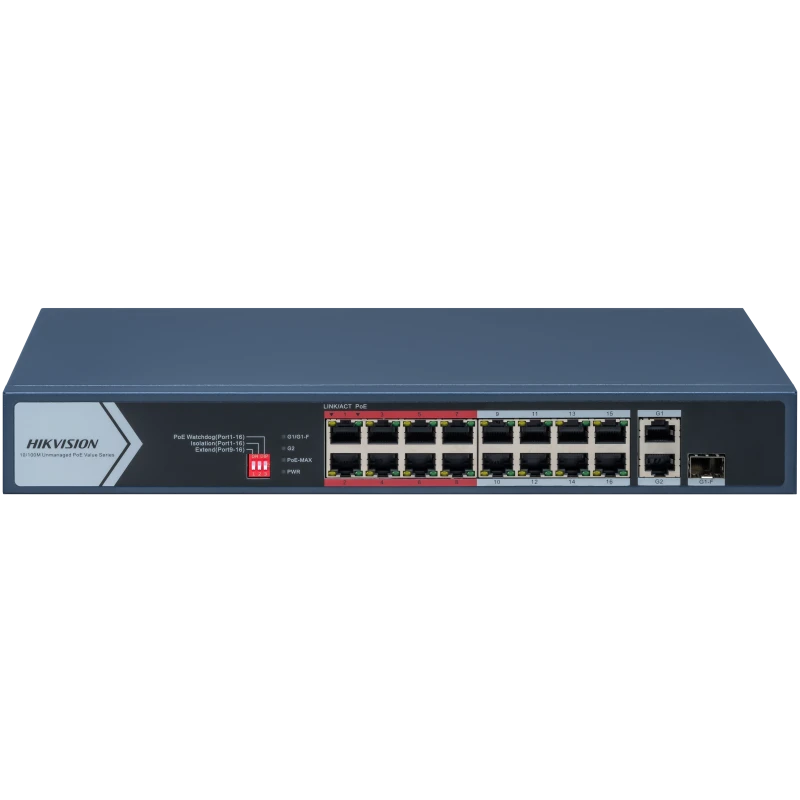

Hikvision 16 Port Fast Ethernet Unmanaged POE Switch DS-3E0318P-E/M(C)
SKU:DS-3E0318P-E/M
Manufacturer:Hikvision
New
Image is for illustrative purposes only
The Hikvision DS-3E0318P-E/M(C) is an unmanaged PoE switch offering extensive connectivity and power delivery, designed for reliable network performance, particularly in video transmission applications.
Key Features
- 16 x 10/100 Mbps Fast Ethernet ports with PoE support
- 1 x 10/100/1000 Mbps Gigabit RJ45 uplink port
- 1 x 10/100/1000 Mbps Gigabit combo uplink port (RJ45/SFP)
- Supports IEEE 802.3af and 802.3at PoE standards
- Provides a total PoE power budget of up to 130W
- Delivers up to 30W of PoE power per port
- Extend mode allows data transmission up to 300m (at 10 Mbps for ports 9-16)
- Built-in 6 kV surge protection
- Features priority ports (1-8) optimized for reliable video stream transmission
- Equipped with a durable metal casing
- Utilizes store-and-forward switching technology
- Supports a 4K MAC address table
- Offers a switching capacity of 7.2 Gbps
Applications
This switch is specifically designed for reliable transmission of video streams, making it an ideal choice for surveillance systems and other video-centric network deployments. The inclusion of priority ports 1-8 helps ensure critical video data is handled efficiently.
Key Features
- 16 x 10/100 Mbps Fast Ethernet ports with PoE support
- 1 x 10/100/1000 Mbps Gigabit RJ45 uplink port
- 1 x 10/100/1000 Mbps Gigabit combo uplink port (RJ45/SFP)
- Supports IEEE 802.3af and 802.3at PoE standards
- Provides a total PoE power budget of up to 130W
- Delivers up to 30W of PoE power per port
- Extend mode allows data transmission up to 300m (at 10 Mbps for ports 9-16)
- Built-in 6 kV surge protection
- Features priority ports (1-8) optimized for reliable video stream transmission
- Equipped with a durable metal casing
- Utilizes store-and-forward switching technology
- Supports a 4K MAC address table
- Offers a switching capacity of 7.2 Gbps
Applications
This switch is specifically designed for reliable transmission of video streams, making it an ideal choice for surveillance systems and other video-centric network deployments. The inclusion of priority ports 1-8 helps ensure critical video data is handled efficiently.
Ports: 16 × 10/100 Mbps PoE RJ45, 1 Gigabit RJ45, 1 Gigabit combo port (RJ45/SFP)
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode: Standard mode (default); Extend mode
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode: Store-and-forward switching
High Priority Ports: Ports 1 to 8
MAC Address Table: 4 K
Switching Capacity: 7.2 Gbps
Packet Forwarding Rate: 5.356 Mpps
Internal Cache: 2.75 Mbits
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+); Mid-span: 4/5(+), 7/8(-); 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: Ports 1 to 16
Max. Port Power: 30 W
PoE Power Budget: 130 W
Long Range (Extend Mode): Ports 9 to 16: up to 300 m at 10 Mbps
Surge Protection: 6 KV
Dimensions (W × H × D): 335.0 mm × 44.5 mm × 175.8 mm (also cited as 266 mm × 44.5 mm × 220.8 mm)
Shell: Metal material
Gross Weight: 2.58 kg
Net Weight: 1.80 kg
Operating Temperature: 0 °C to 45 °C
Operating Humidity: 5% to 95% (no condensation)
Storage Temperature: –40 °C to 85 °C
Storage Humidity: 5% to 95% (no condensation)
Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Power Consumption in Idle: 20 W
Max. Power Consumption: 150 W
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode: Standard mode (default); Extend mode
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode: Store-and-forward switching
High Priority Ports: Ports 1 to 8
MAC Address Table: 4 K
Switching Capacity: 7.2 Gbps
Packet Forwarding Rate: 5.356 Mpps
Internal Cache: 2.75 Mbits
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+); Mid-span: 4/5(+), 7/8(-); 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: Ports 1 to 16
Max. Port Power: 30 W
PoE Power Budget: 130 W
Long Range (Extend Mode): Ports 9 to 16: up to 300 m at 10 Mbps
Surge Protection: 6 KV
Dimensions (W × H × D): 335.0 mm × 44.5 mm × 175.8 mm (also cited as 266 mm × 44.5 mm × 220.8 mm)
Shell: Metal material
Gross Weight: 2.58 kg
Net Weight: 1.80 kg
Operating Temperature: 0 °C to 45 °C
Operating Humidity: 5% to 95% (no condensation)
Storage Temperature: –40 °C to 85 °C
Storage Humidity: 5% to 95% (no condensation)
Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Power Consumption in Idle: 20 W
Max. Power Consumption: 150 W
-
