Pre-programmed hunting channels.

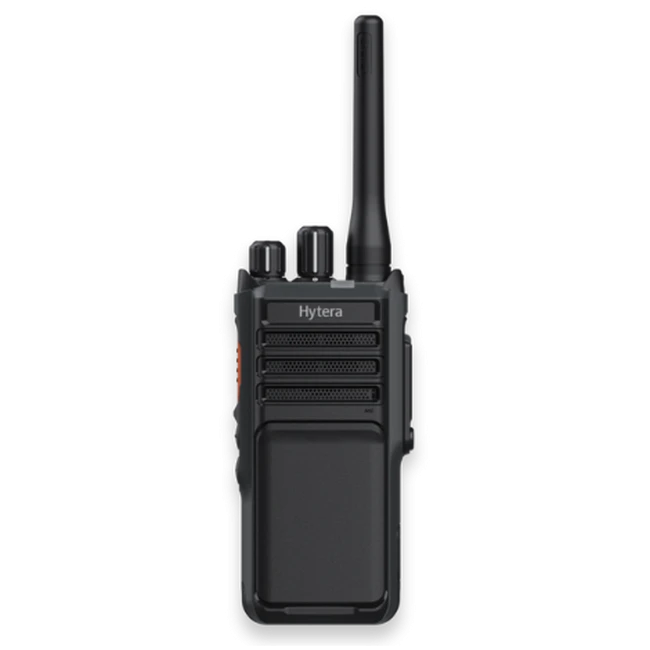

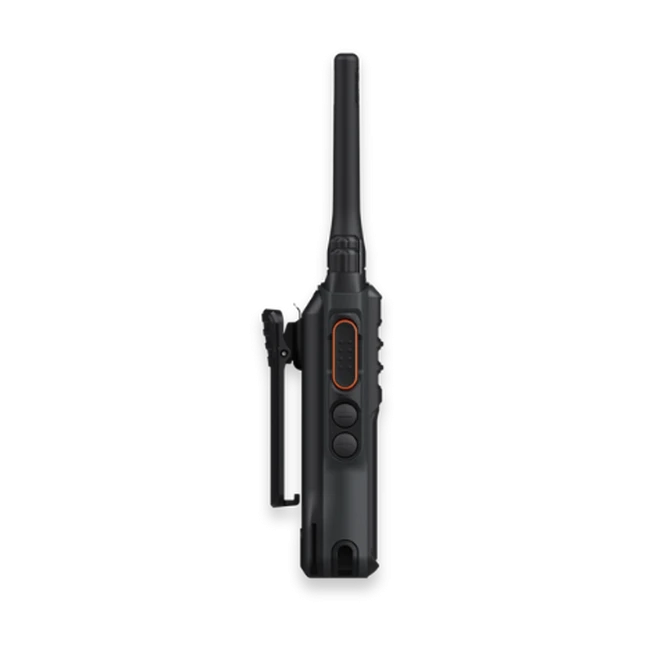

Hytera HP505 is a new generation professional digital handheld radio designed for reliable communication in demanding environments such as industrial parks, stadiums, and office buildings. The device is IP67 and MIL-STD-810G certified, ensuring resistance to dust, water, shocks, and extreme temperatures. It features a durable polycarbonate housing with a non-slip texture.
Equipped with AI-based noise cancellation, the radio filters out background noise and feedback, providing clear audio even in noisy environments. With a sensitivity of 0.18μV (-122dBm), it maintains stable communication at the edge of signal coverage. A universal USB-C port is integrated for convenient charging via power banks or car chargers, as well as for programming and firmware updates.

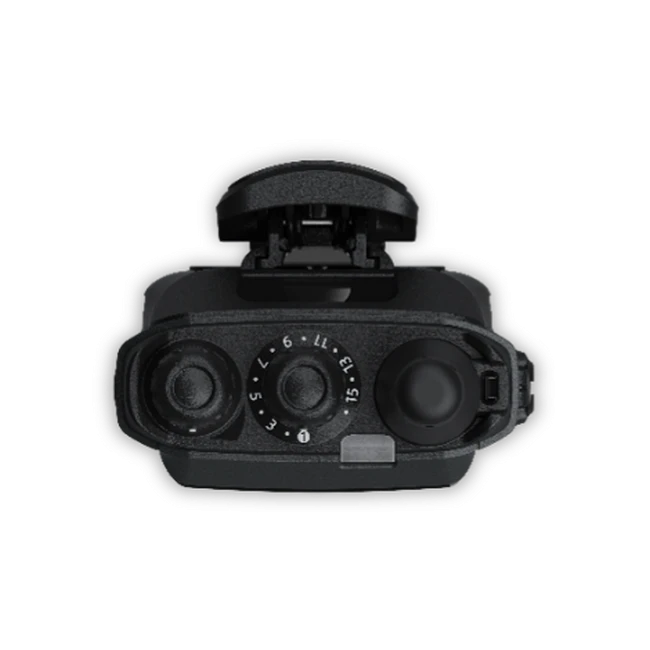

The HP505 includes dedicated knobs for volume and channel adjustments to improve operational efficiency. It supports up to 256 channels across 16 zones. Optional Bluetooth 5.2 connectivity allows for wireless audio accessories and remote radio management via the HyTool Radio Manager smartphone application.
RF output power: VHF: 1W/5W / UHF: 1W/4W
Channel capacity: 256
Zones: 16 (16 channels per zone)
Channel spacing (analog): 12.5 / 20 / 25 kHz
Channel spacing (digital): 12.5 kHz
Sensitivity: 0.18μV (-122dBm)
Ingress protection: IP67
Standard: MIL-STD-810 G
Battery: 1500 mAh Li-ion
Programmable buttons: 2
Bluetooth: BT 5.2 (hardware option)
GPS/GLONASS: Built-in GPS antenna (hardware option)
Interface: USB Type-C port for charging and programming
Audio features: AI-based noise cancellation, Automatic Gain Control (AGC)
Digital functions: Individual call, group call, all call, predefined text messages (256 characters), E2E basic encryption, authentication, emergency call, Lone Worker, roaming (optional license), priority interrupt (optional license), remote monitor, activate/deactivate, radio check (optional license), Pseudo Trunking, XPT trunking (single site) (optional license)
Analog functions: Alarm, Lone Worker, Scrambler, 2-tone, HDC1200, 5-tone, CTCSS/CDCSS, auto scan, Squelch, Time-out Timer (TOT)
Additional features: Voice announcement for channels and zones, third-party API, VOX (R2.5), Telemetry (R2.5)
