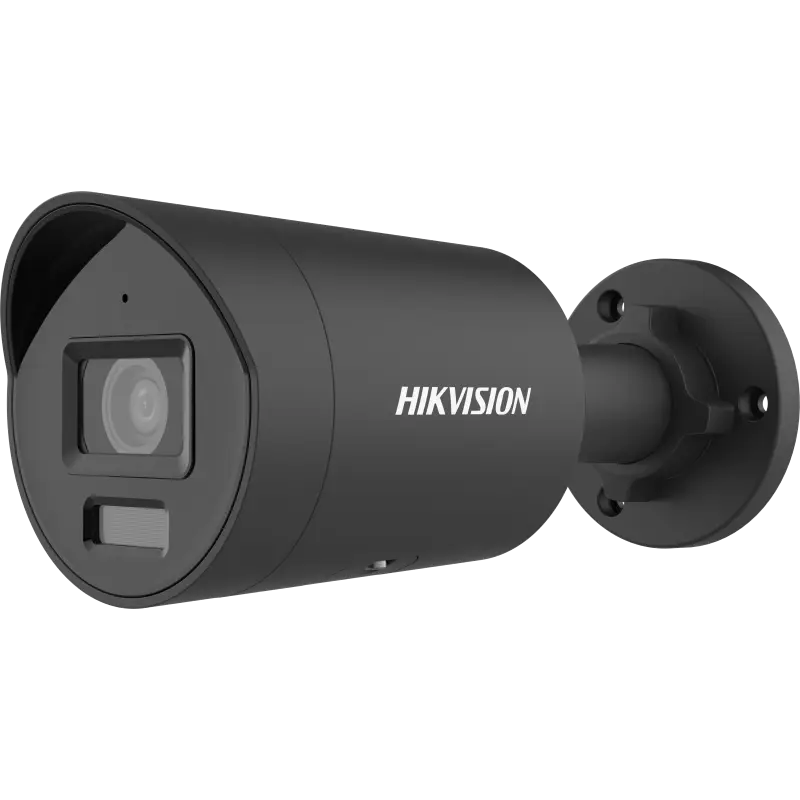

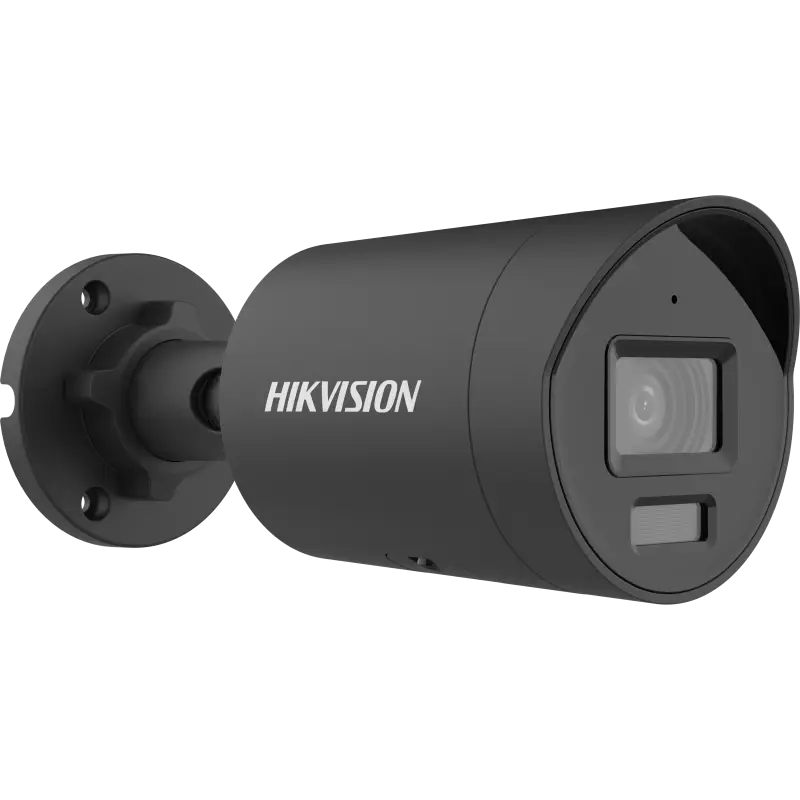

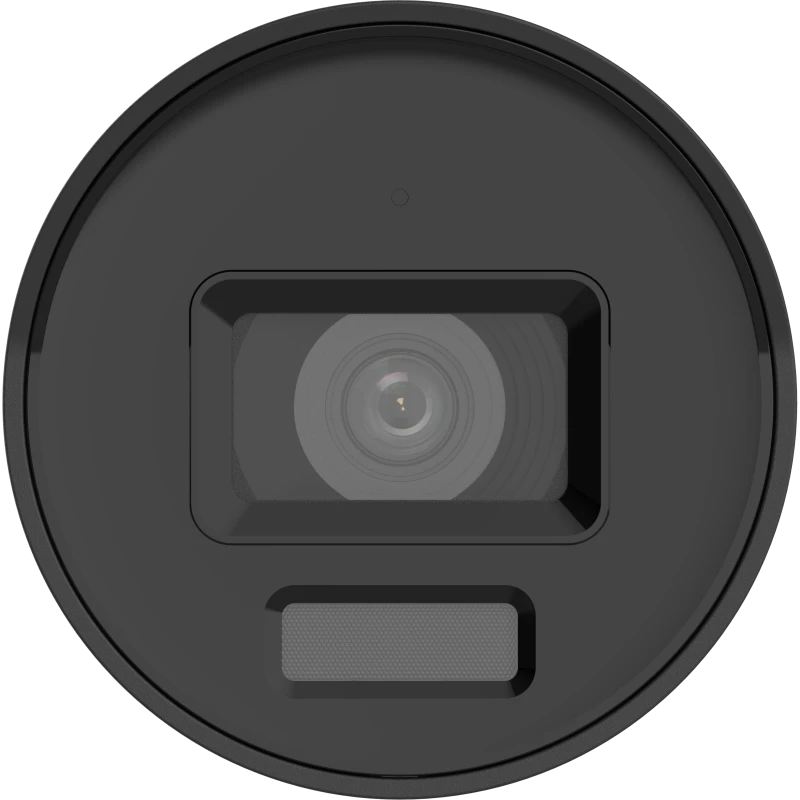

Hikvision DS-2CD2086G2H-IU(2.8mm)(eF) Pro Series 8MP Darkfighter Fixed Mini Bullet IP Camera with 2.8 mm Fixed Focal Lens
SKU:DS-2CD2086G2H-IU2.8B
Manufacturer:Hikvision
The Hikvision DS-2CD2086G2H-IU(2.8mm)(eF) Pro series is a miniature cylindrical IP camera with a fixed lens, designed for high-quality surveillance. It features an 8MP sensor capable of delivering up to 4K UHD resolution images and includes advanced AcuSense analytics.
Key Features
- Captures detailed images with an 8-megapixel sensor, supporting resolutions up to 3840 × 2160 (4K UHD).
- DarkFighter technology ensures excellent image quality in low-light conditions.
- AcuSense technology uses deep learning to classify targets as humans or vehicles, significantly reducing false alarms.
- 120 dB WDR provides clear images even against strong backlighting.
- Supports H.265+, H.265, H.264+, H.264, and MJPEG video compression.
- Includes a built-in microphone for real-time audio monitoring.
- Provides infrared night vision up to 40 meters.
- Rated IP67 for protection against dust and water ingress.
- Supports Power over Ethernet (PoE 802.3af) or 12V DC power.
- Features a microSD card slot supporting cards up to 512 GB for on-board storage.
Applications
Its IP67 rating and IR illumination make this camera suitable for outdoor surveillance. AcuSense analytics are beneficial for perimeter monitoring and reducing false alarms by focusing on human and vehicle detection.
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Lens Type: Fixed focal lens, 2.8 mm
Focal Length & FOV (2.8mm): horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
Aperture: F1.0
Supplement Light Type: IR
Supplement Light Range: Up to 40 m
IR Wavelength: 850 nm
Video Compression: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Main Stream Frame Rate: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720), 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC (Built-in microphone)
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 512 GB
Basic Event: Motion detection (human and vehicle target classification), video tampering alarm, exception
Intelligent Event: Line crossing detection, intrusion detection, region entry detection, region exit detection, face detection
WDR: 120 dB
DNR: 3D-DNR
Protection Level: IP67
Operating Temperature: -30 °C to 60 °C
Power Supply: PoE (802.3af), 12 V DC
Power Consumption: ≤ 8.5 W @ PoE; ≤ 7 W @ 12 V DC
Dimensions: Ø 74 x 179 mm
Weight: Approx. 0.52 kg
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Lens Type: Fixed focal lens, 2.8 mm
Focal Length & FOV (2.8mm): horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
Aperture: F1.0
Supplement Light Type: IR
Supplement Light Range: Up to 40 m
IR Wavelength: 850 nm
Video Compression: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Main Stream Frame Rate: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720), 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC (Built-in microphone)
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 512 GB
Basic Event: Motion detection (human and vehicle target classification), video tampering alarm, exception
Intelligent Event: Line crossing detection, intrusion detection, region entry detection, region exit detection, face detection
WDR: 120 dB
DNR: 3D-DNR
Protection Level: IP67
Operating Temperature: -30 °C to 60 °C
Power Supply: PoE (802.3af), 12 V DC
Power Consumption: ≤ 8.5 W @ PoE; ≤ 7 W @ 12 V DC
Dimensions: Ø 74 x 179 mm
Weight: Approx. 0.52 kg
