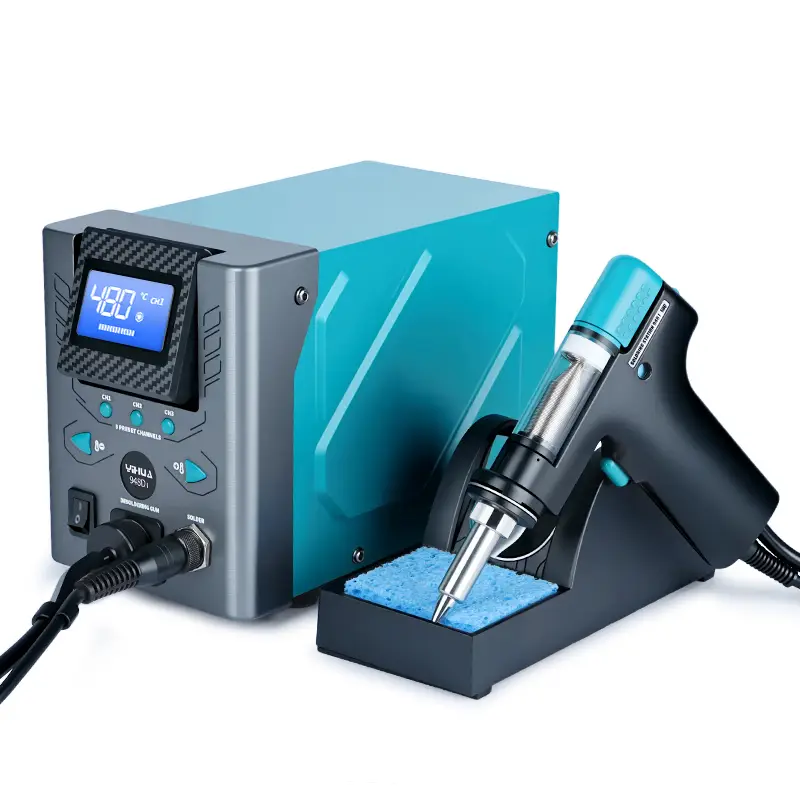

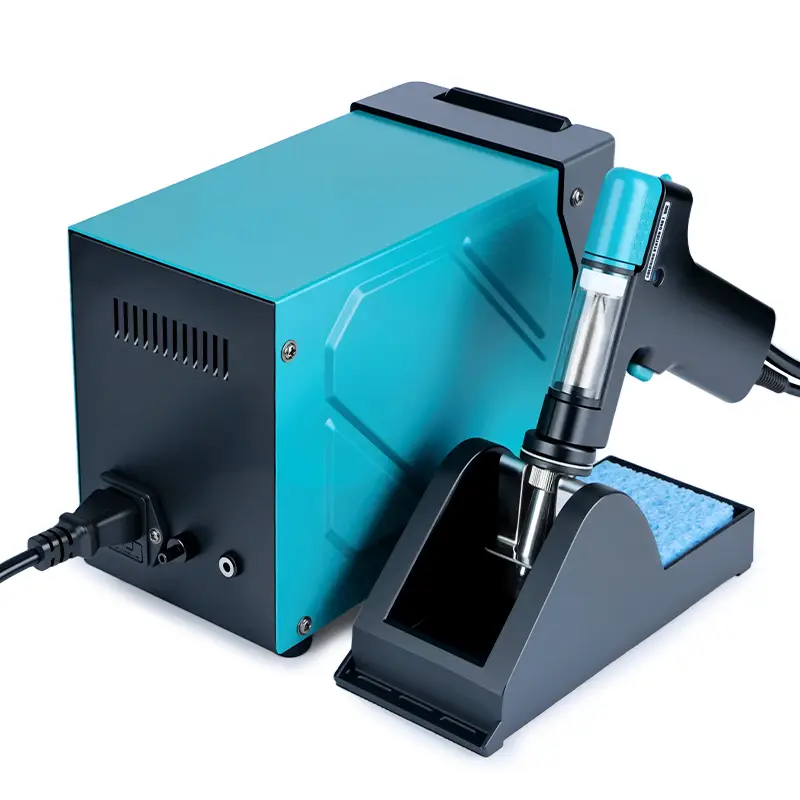

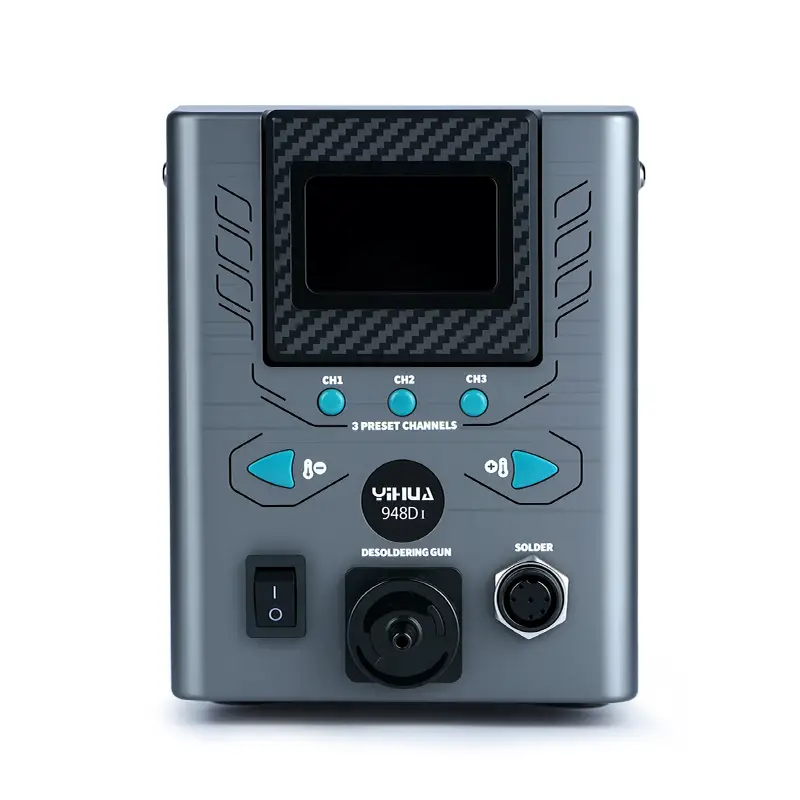

The YIHUA 948D-I desoldering station combines a 110W heated desoldering gun with a built-in vacuum pump. The gun melts solder and extracts it into a collection chamber. It is useful for removing components from circuit boards, including multilayer PCB repair.
The temperature is adjustable from 380 to 480 °C. PID control monitors and corrects the working temperature, while the LCD shows the settings. Digital calibration allows the temperature reading to be corrected. The station has an adjustable sleep mode and automatic shutdown; no separate external vacuum pump is required.
Model: YIHUA 948D-I
Device type: desoldering gun station
Rated power: 110W
Temperature range: 380–480 °C
Vacuum pump: built-in
Vacuum pressure: 0.05MPa
Temperature control: PID
Temperature calibration: digital
Display: LCD
Sleep mode: adjustable
Automatic shutdown: yes
Tip-to-ground resistance: below 2Ω
Operating ambient temperature: 0–40 °C
-
